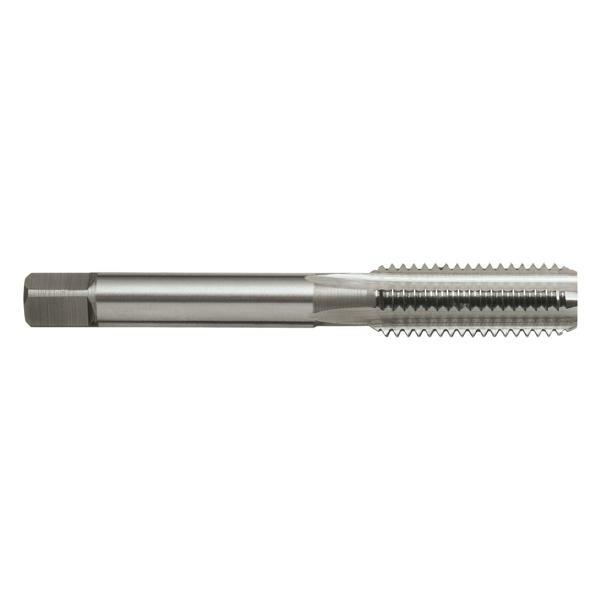

Sutton T392 M10 x 1.5 Straight Flute Tap Oversize Bottoming - HSS - Bright - ISO 529
Available
The Sutton T392 is a straight flute tap (bottoming chamfer) for metric coarse (M) threads, made from high speed steel (HSS) with a bright finish. This listing covers 5 sizes from M10 x 1.5 to M24 x 3.
Straight flutes suit through or blind holes, but they hold only a small amount of chips and do not transport them axially, so deep holes are best avoided except in short chipping materials. The tap has a bottoming chamfer (Form E, 1.5 to 2 threads on the lead), for blind holes with very short thread run-out.
The tap is built to ISO 529: short machine tap construction.
Where this product is used
- Through and blind holes.
Design features
- High speed steel (HSS). Standard tool material for most common applications.
- Bright finish for general purpose applications.
- 4 flutes.
- Bottoming chamfer (Form E), for blind holes with very short thread run-out.
- ISO 529 construction, short machine tap construction.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.

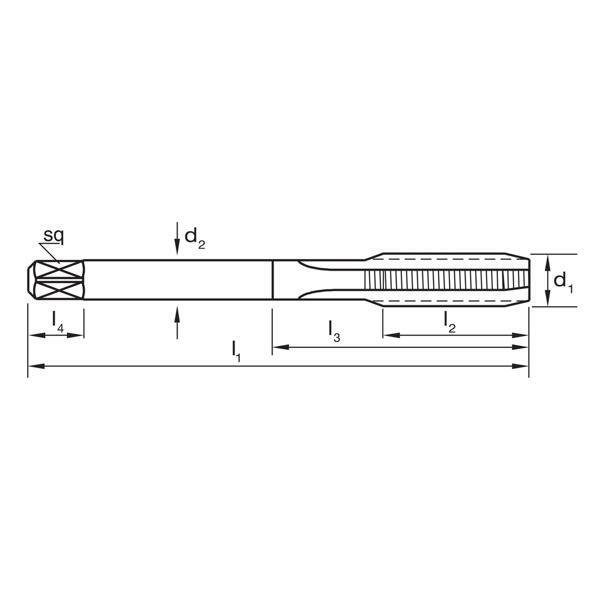

| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|
| T392 1000 | M10 x 1.5 | 1.5 | 8.9 | 85 | 25 | 8 | 6.3 | 9 | 4 |
| T392 1200 | M12 x 1.75 | 1.75 | 10.6 | 89 | 29 | 9 | 7.1 | 10 | 4 |
| T392 1600 | M16 x 2 | 2 | 14.4 | 112 | 37 | 12.5 | 10 | 13 | 4 |
| T392 2000 | M20 x 2.5 | 2.5 | 17.9 | 118 | 38 | 16 | 12.5 | 16 | 4 |
| T392 2400 | M24 x 3 | 3 | 21.5 | 130 | 45 | 18 | 14 | 18 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T392 |
| Type | Straight flute tap |
| Thread series | Metric coarse (M) |
| Material | HSS |
| Finish | Bright |
| Chamfer | Bottoming (Form E) |
| Standard | ISO 529 |
| Flutes | 4 |
| Sizes in this listing | 5 sizes, M10 x 1.5 to M24 x 3 |
Related products
Related Sutton taps: T391 Metric Coarse Straight Flute Tap Left Hand Bottoming - HSS - Bright - ISO 529, T390 Metric Coarse Straight Flute Tap Left Hand Intermediate - HSS - Bright - ISO 529, T389 Metric Coarse Straight Flute Tap Left Hand Taper - HSS - Bright - ISO 529, T386 Metric Coarse Straight Flute Tap Bottoming - HSS - Bright - ISO 529, T385 Metric Coarse Straight Flute Tap Intermediate - HSS - Bright - ISO 529.
