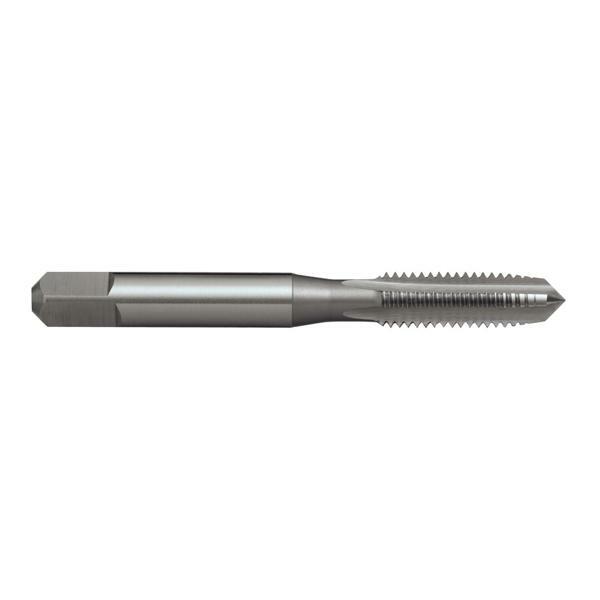

Sutton T390 M3 x 0.5 Straight Flute Tap Left Hand Intermediate - HSS - Bright - ISO 529
Available
The Sutton T390 is a straight flute tap (intermediate chamfer, left hand) for metric coarse (M) threads, made from high speed steel (HSS) with a bright finish. This listing covers 11 sizes from M3 x 0.5 to M20 x 2.5.
Straight flutes suit through or blind holes, but they hold only a small amount of chips and do not transport them axially, so deep holes are best avoided except in short chipping materials. The tap has a intermediate chamfer (Form D, 3.5 to 5 threads on the lead), generally for through holes.
The thread tolerance is ISO 2 / 6H LH. The tap is built to ISO 529: short machine tap construction.
Where this product is used
- General purpose use.
- Suitable for materials up to 1000 N/mm2.
- Through & blind holes.
- Suitable for both hand and machine operations.
- Depths up to approx. 1 x d1.
Design features
- High speed steel (HSS). Standard tool material for most common applications.
- Bright finish for general purpose applications.
- 3 to 4 flutes, depending on size.
- Intermediate chamfer (Form D), generally for through holes.
- Thread tolerance ISO 2 / 6H LH.
- ISO 529 construction, short machine tap construction.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T390 0300 | M3 x 0.5 | 0.5 | 2.5 | 48 | 11 | 15 | 3.15 | 2.5 | 5 | 3 |
| T390 0400 | M4 x 0.7 | 0.7 | 3.3 | 53 | 13 | 18 | 4 | 3.15 | 6 | 3 |
| T390 0500 | M5 x 0.8 | 0.8 | 4.2 | 58 | 16 | 22 | 5 | 4 | 7 | 3 |
| T390 0600 | M6 x 1 | 1 | 5 | 66 | 19 | 26 | 6.3 | 5 | 8 | 3 |
| T390 0800 | M8 x 1.25 | 1.25 | 6.8 | 72 | 22 | 30 | 8 | 6.3 | 9 | 4 |
| T390 1000 | M10 x 1.5 | 1.5 | 8.5 | 80 | 24 | 34 | 10 | 8 | 11 | 4 |
| T390 1200 | M12 x 1.75 | 1.75 | 10.2 | 89 | 29 | - | 9 | 7.1 | 10 | 4 |
| T390 1400 | M14 x 2 | 2 | 12 | 95 | 30 | - | 11.2 | 9 | 12 | 4 |
| T390 1600 | M16 x 2 | 2 | 14 | 102 | 32 | - | 12.5 | 10 | 13 | 4 |
| T390 1800 | M18 x 2.5 | 2.5 | 15.5 | 112 | 37 | - | 14 | 11.2 | 14 | 4 |
| T390 2000 | M20 x 2.5 | 2.5 | 17.5 | 112 | 37 | - | 14 | 11.2 | 14 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T390 |
| Type | Straight flute tap |
| Thread series | Metric coarse (M) |
| Material | HSS |
| Finish | Bright |
| Chamfer | Intermediate (Form D) |
| Thread tolerance | ISO 2 / 6H LH |
| Standard | ISO 529 |
| Flutes | 3 to 4 |
| Sizes in this listing | 11 sizes, M3 x 0.5 to M20 x 2.5 |
