Sutton T398 Metric Spiral Flute Tap - Bottoming - Premium HSS Tinite1

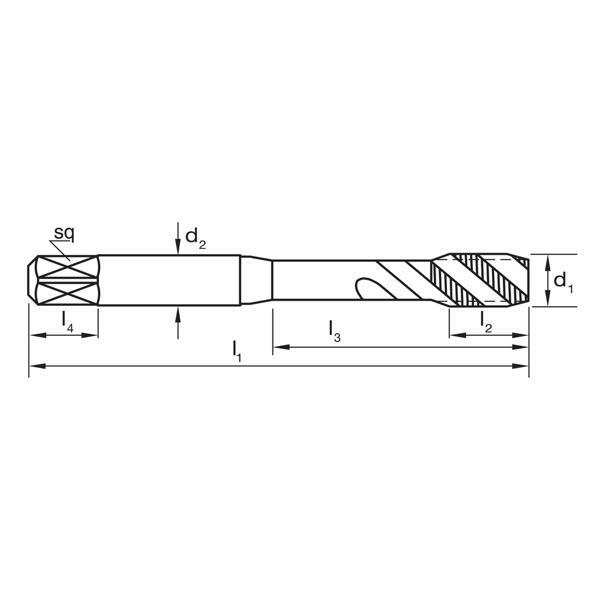

Sutton T398 Metric Spiral Flute Tap - Bottoming - Premium HSS Tinite2

Sutton T3980300 M3 x 0.5 Spiral Flute Tap - Bottoming - HSSE V3 TiN

Sutton T3980400 M4 x 0.7 Spiral Flute Tap - Bottoming - HSSE V3 TiN

Sutton T3980500 M5 x 0.8 Spiral Flute Tap - Bottoming - HSSE V3 TiN

Sutton T3980600 M6 x 1 Spiral Flute Tap - Bottoming - HSSE V3 TiN

Sutton T3980800 M8 x 1.25 Spiral Flute Tap - Bottoming - HSSE V3 TiN

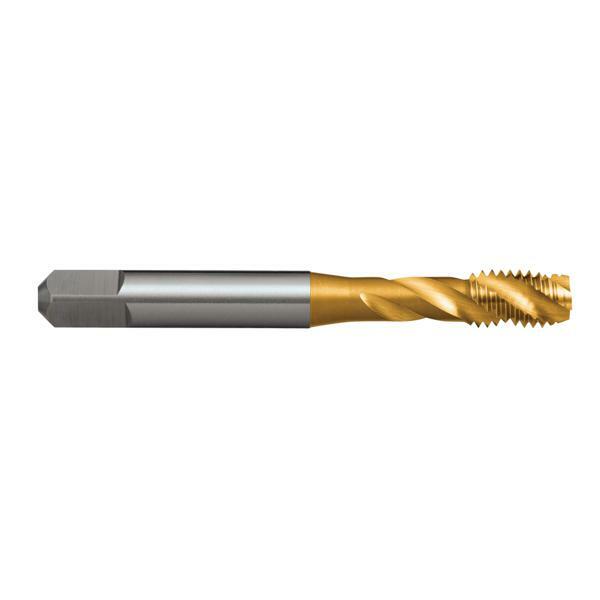

Sutton T3981000 M10 x 1.5 Spiral Flute Tap - Bottoming - HSSE V3 TiN

Sutton T3981200 M12 x 1.75 Spiral Flute Tap - Bottoming - HSSE V3 TiN

Sutton T3981600 M16 x 2 Spiral Flute Tap - Bottoming - HSSE V3 TiN

Sutton T3981800 M18 x 2.5 Spiral Flute Tap - Bottoming - HSSE V3 TiN

Sutton T3982000 M20 x 2.5 Spiral Flute Tap - Bottoming - HSSE V3 TiN

Description +

Features

Form C / 3 x P General purpose use
Suitable for materials up to 1000N/mm2
Blind holes
Depths up to approx. 2.5 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Nitride (TiN)
Max Cut Depth: 2.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R40
X: als
Type: Spiral Flute
Standard: ISO529
Thread Form: ISO Metric Coarse (M)
Lead: ISO 2 / 6H

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered

Specifications +

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Nitride (TiN)
Max Cut Depth: 2.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R40
X: als
Type: Spiral Flute
Standard: ISO529
Thread Form: ISO Metric Coarse (M)
Lead: ISO 2 / 6H

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered

Features & Benefits +

Features

Form C / 3 x P General purpose use
Suitable for materials up to 1000N/mm2
Blind holes
Depths up to approx. 2.5 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T398 Metric Spiral Flute Tap - Bottoming - Premium HSS Tinite

SKU: A0014965

$74.00

Inc. GST

Available

The Sutton T398 Metric Spiral Flute Tap by Sutton Tools is a 0 made from Premium Grade High Speed Steel (HSSE-V3). It offers l1 80 mm and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered.
