Description
Description
Dimensions
- d1: M2
- d2 (mm): 6
- l1 (mm): 70
- l2 (mm): 4
- l3 (mm): 13
- l4 (mm): 8
- Square Size (mm): 4.9
- z: 3
- Drill Size (mm): 1.6 (drill)
- Pitch (mm): 0.4 (pitch)
Features
- For high speed and precision tapping
- For rigid tapping in CNC machines with synchronised feed
- For aluminium and aluminium alloys
- Process of plastic deformation to imprint thread on material
- Blind and through holes up to 2 x d1
- h6 endmill shank
Specifications
- Designation: VA (for stainless and tough steels)
- Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
- Finish: Titanium Carbonitride (TiCN)
- Max Cut Depth: 2xD
- Shank Form: Reinforced Shank (square-end, drive-flat)
- Helix Angle: R50
- X: als
- Type: Spiral Flute
- Standard: Sutton
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: 6HX
- Lead: Form C / 3 x P
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - High alloy, cast & tool: Annealed
- Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
- Stainless Steel - Austenitic: Age Hardened
- Stainless Steel – Duplex
- Cast Iron, Grey (GG) - Ferritic / Pearlitic
- Cast Iron, Nodular (GGG) – Ferritic
- Cast Iron, Malleable – Ferritic
- Aluminum & Magnesium, wrought alloy - Non Heat Treatable
- Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
- Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable
- High temperature alloys - Fe based: Annealed
- High temperature alloys - Ni / Co based: Annealed
Specifications
Specifications
Dimensions
- d1: M2
- d2 (mm): 6
- l1 (mm): 70
- l2 (mm): 4
- l3 (mm): 13
- l4 (mm): 8
- Square Size (mm): 4.9
- z: 3
- Drill Size (mm): 1.6 (drill)
- Pitch (mm): 0.4 (pitch)
Specifications
- Designation: VA (for stainless and tough steels)
- Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
- Finish: Titanium Carbonitride (TiCN)
- Max Cut Depth: 2xD
- Shank Form: Reinforced Shank (square-end, drive-flat)
- Helix Angle: R50
- X: als
- Type: Spiral Flute
- Standard: Sutton
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: 6HX
- Lead: Form C / 3 x P
Applications
Applications
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - High alloy, cast & tool: Annealed
- Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
- Stainless Steel - Austenitic: Age Hardened
- Stainless Steel – Duplex
- Cast Iron, Grey (GG) - Ferritic / Pearlitic
- Cast Iron, Nodular (GGG) – Ferritic
- Cast Iron, Malleable – Ferritic
- Aluminum & Magnesium, wrought alloy - Non Heat Treatable
- Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
- Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable
- High temperature alloys - Fe based: Annealed
- High temperature alloys - Ni / Co based: Annealed
Features & Benefits
Features & Benefits
Features
- For high speed and precision tapping
- For rigid tapping in CNC machines with synchronised feed
- For aluminium and aluminium alloys
- Process of plastic deformation to imprint thread on material
- Blind and through holes up to 2 x d1
- h6 endmill shank
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

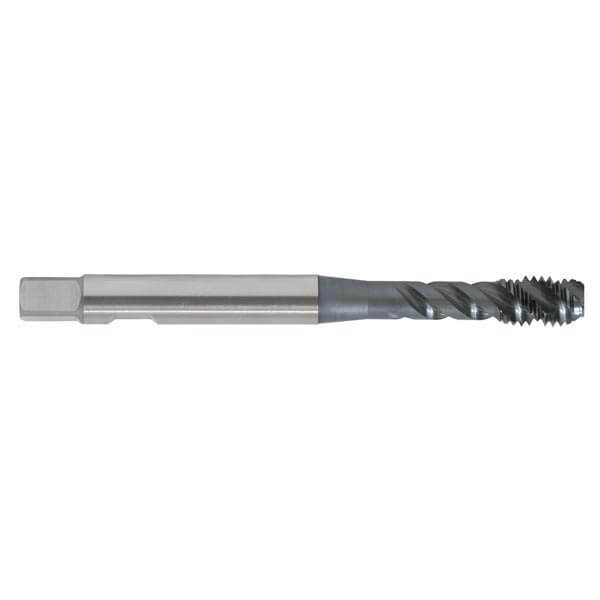

Sutton T373 Metric Spiral Flute Tap - R50 Synchro - Vanadium HSS TiCN
Sutton T373 Metric Spiral Flute Tap - R50 Synchro - Vanadium HSS TiCN
SKU: A0014678
Regular price
$104.06
Sale price
$104.06
Regular price
Unit price
/per
Tax included.
Shipping calculated at checkout.
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton T373 Metric Spiral Flute Tap by Sutton Tools is a 0 with Powdered Metallurgy Vanadium Grade High Speed Steel material. It provides l1 (mm): 100 and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered.
