Sutton T369 M2 x 0.4 Spiral Flute Tap Synchro R45 Al - PM-HSSE V3 - CrN
Available

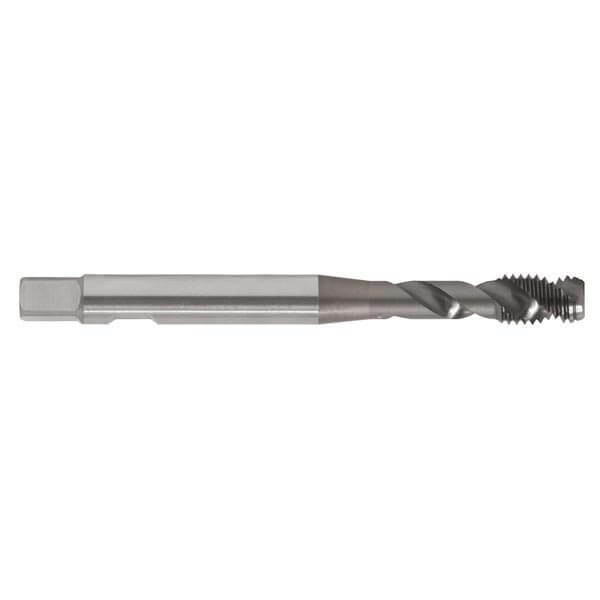

The Sutton T369 is a spiral flute tap (R45 spiral, HSC designation, synchro) for metric coarse (M) threads, made from powder metallurgy, vanadium grade high speed steel (PM-HSSE V3) with a chromium nitride (CrN) coating. This listing covers 12 sizes from M2 x 0.4 to M20 x 2.5.
The 45° right-hand spiral flute suits blind holes in long chipping materials: the high helix angle curls the chips and transports them back out of the hole. The tap cuts on reversal, so the flutes have rake on both front and back faces. The chamfer is Form C (2.5 x P), generally for blind holes.
The thread tolerance is 6HX.
Where this product is used
- For aluminium & aluminium alloys.
- Blind holes up to 2 x d1.
Design features
- Powder metallurgy, vanadium grade high speed steel (PM-HSSE V3). The very fine and uniform grain structure allows high hardness while keeping good toughness, for materials up to 40 HRC and difficult-to-machine materials such as stainless steels.
- Chromium nitride (CrN) coating for cutting and forming copper, nickel and monel metal, with excellent corrosion resistance.
- 2 flutes.
- 45° right-hand spiral flute.
- Form C chamfer, 2.5 x P.
- Thread tolerance 6HX.
- For high speed and precision tapping.
- For rigid tapping in CNC machines with synchronised feed.
- h6 endmill shank.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.

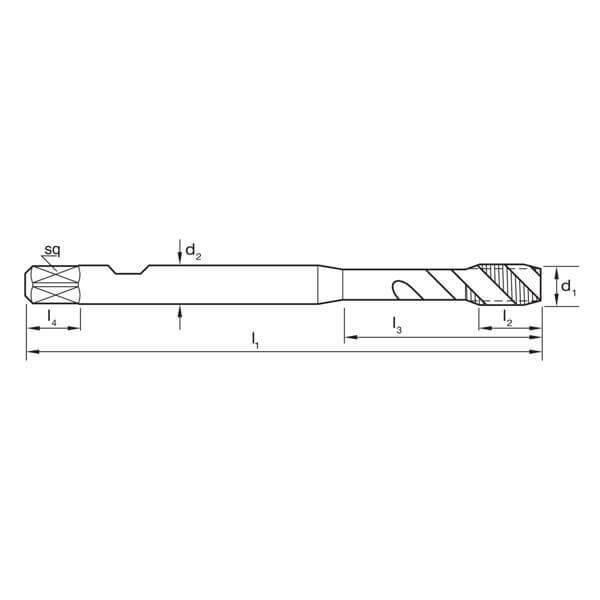

| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T369 0200 | M2 x 0.4 | 0.4 | 1.6 | 70 | 4 | 13 | 6 | 4.9 | 8 | 2 |
| T369 0300 | M3 x 0.5 | 0.5 | 2.5 | 70 | 5 | 18 | 6 | 4.9 | 8 | 2 |
| T369 0400 | M4 x 0.7 | 0.7 | 3.3 | 70 | 7 | 21 | 6 | 4.9 | 8 | 2 |
| T369 0500 | M5 x 0.8 | 0.8 | 4.2 | 70 | 8 | 25 | 6 | 4.9 | 8 | 2 |
| T369 0600 | M6 x 1 | 1 | 5 | 80 | 10 | 30 | 6 | 4.9 | 8 | 2 |
| T369 0800 | M8 x 1.25 | 1.25 | 6.8 | 90 | 13 | 35 | 8 | 6.2 | 9 | 2 |
| T369 1000 | M10 x 1.5 | 1.5 | 8.5 | 100 | 15 | 39 | 10 | 8 | 11 | 2 |
| T369 1200 | M12 x 1.75 | 1.75 | 10.3 | 110 | 18 | 42 | 12 | 9 | 12 | 2 |
| T369 1400 | M14 x 2 | 2 | 12 | 110 | 20 | 49 | 14 | 11 | 14 | 2 |
| T369 1600 | M16 x 2 | 2 | 14 | 110 | 20 | 55 | 16 | 12 | 15 | 2 |
| T369 1800 | M18 x 2.5 | 2.5 | 15.5 | 125 | 25 | - | 16 | 12 | 15 | 2 |
| T369 2000 | M20 x 2.5 | 2.5 | 17.5 | 140 | 25 | - | 16 | 12 | 15 | 2 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T369 |
| Type | Spiral flute tap |
| Thread series | Metric coarse (M) |
| Material | PM-HSSE V3 |
| Finish | CrN |
| Designation | HSC |
| Spiral | R45 (45° right-hand) |
| Chamfer | Form C / 2.5 x P |
| Thread tolerance | 6HX |
| Flutes | 2 |
| Sizes in this listing | 12 sizes, M2 x 0.4 to M20 x 2.5 |
