Description
Description

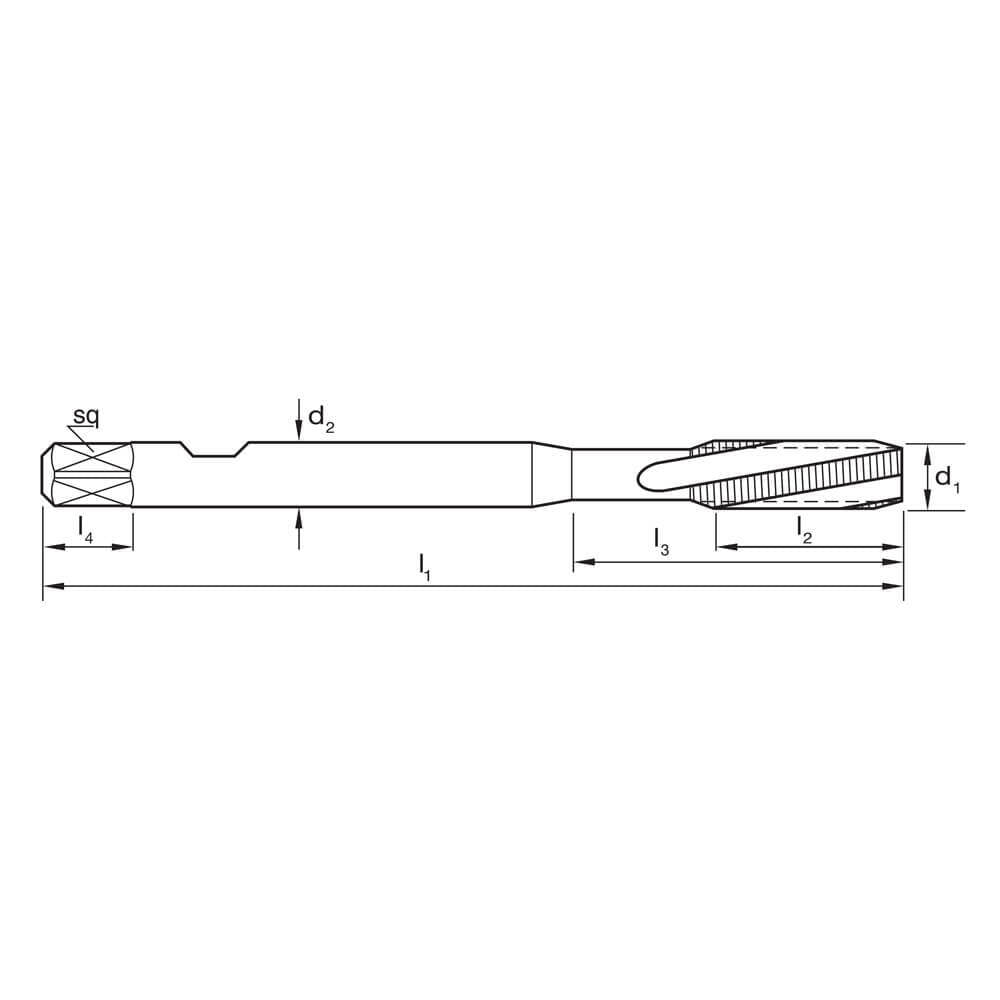

Dimensions
- d1: M5
- d2 (mm): 6
- l1 (mm): 70
- l2 (mm): 16
- l4 (mm): 8
- Square Size (mm): 4.9
- z: 3
- Drill Size (mm): 4.2 (drill)
- Pitch (mm): 0.8 (pitch)
Features
- Right hand cutting / Left hand helix, for high speed and precision tapping
- For rigid tapping in CNC machines with synchronised feed
- Suitable for materials up to 850N/mm2
- Ideal for through holes with angular exit or interrupted hole
Specifications
- Designation: N (for normal general purpose type materials)
- Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
- Finish: Titanium Carbonitride (TiCN)
- Max Cut Depth: 2xD
- Shank Form: Reinforced Shank (square-end, drive-flat)
- Helix Angle: L20
- X: ru
- Type: Spiral Flute
- Standard: Sutton
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: 6HX
- Lead: Form D / 4 x P
Applications
- Aluminum & Magnesium, wrought alloy - Non Heat Treatable
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - High alloy, cast & tool: Annealed
- Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
- Stainless Steel - Austenitic: Age Hardened
- Stainless Steel – Duplex
- Cast Iron, Grey (GG) - Ferritic / Pearlitic
- Cast Iron, Nodular (GGG) – Ferritic
- Cast Iron, Malleable – Ferritic
- Aluminum & Magnesium, wrought alloy - Non Heat Treatable
- Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
- Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
- Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
- Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
- Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)
- Titanium & Titanium alloys - Alpha alloys
- Titanium & Titanium alloys - Alpha / Beta alloys: Annealed
- Titanium & Titanium alloys - Beta alloys: Annealed
Specifications
Specifications
Dimensions
- d1: M5
- d2 (mm): 6
- l1 (mm): 70
- l2 (mm): 16
- l4 (mm): 8
- Square Size (mm): 4.9
- z: 3
- Drill Size (mm): 4.2 (drill)
- Pitch (mm): 0.8 (pitch)
Specifications
- Designation: N (for normal general purpose type materials)
- Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
- Finish: Titanium Carbonitride (TiCN)
- Max Cut Depth: 2xD
- Shank Form: Reinforced Shank (square-end, drive-flat)
- Helix Angle: L20
- X: ru
- Type: Spiral Flute
- Standard: Sutton
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: 6HX
- Lead: Form D / 4 x P
Applications
Applications
Applications
- Aluminum & Magnesium, wrought alloy - Non Heat Treatable
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - High alloy, cast & tool: Annealed
- Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
- Stainless Steel - Austenitic: Age Hardened
- Stainless Steel – Duplex
- Cast Iron, Grey (GG) - Ferritic / Pearlitic
- Cast Iron, Nodular (GGG) – Ferritic
- Cast Iron, Malleable – Ferritic
- Aluminum & Magnesium, wrought alloy - Non Heat Treatable
- Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
- Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
- Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
- Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
- Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)
- Titanium & Titanium alloys - Alpha alloys
- Titanium & Titanium alloys - Alpha / Beta alloys: Annealed
- Titanium & Titanium alloys - Beta alloys: Annealed
Features & Benefits
Features & Benefits
Features
- Right hand cutting / Left hand helix, for high speed and precision tapping
- For rigid tapping in CNC machines with synchronised feed
- Suitable for materials up to 850N/mm2
- Ideal for through holes with angular exit or interrupted hole
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Save 35%

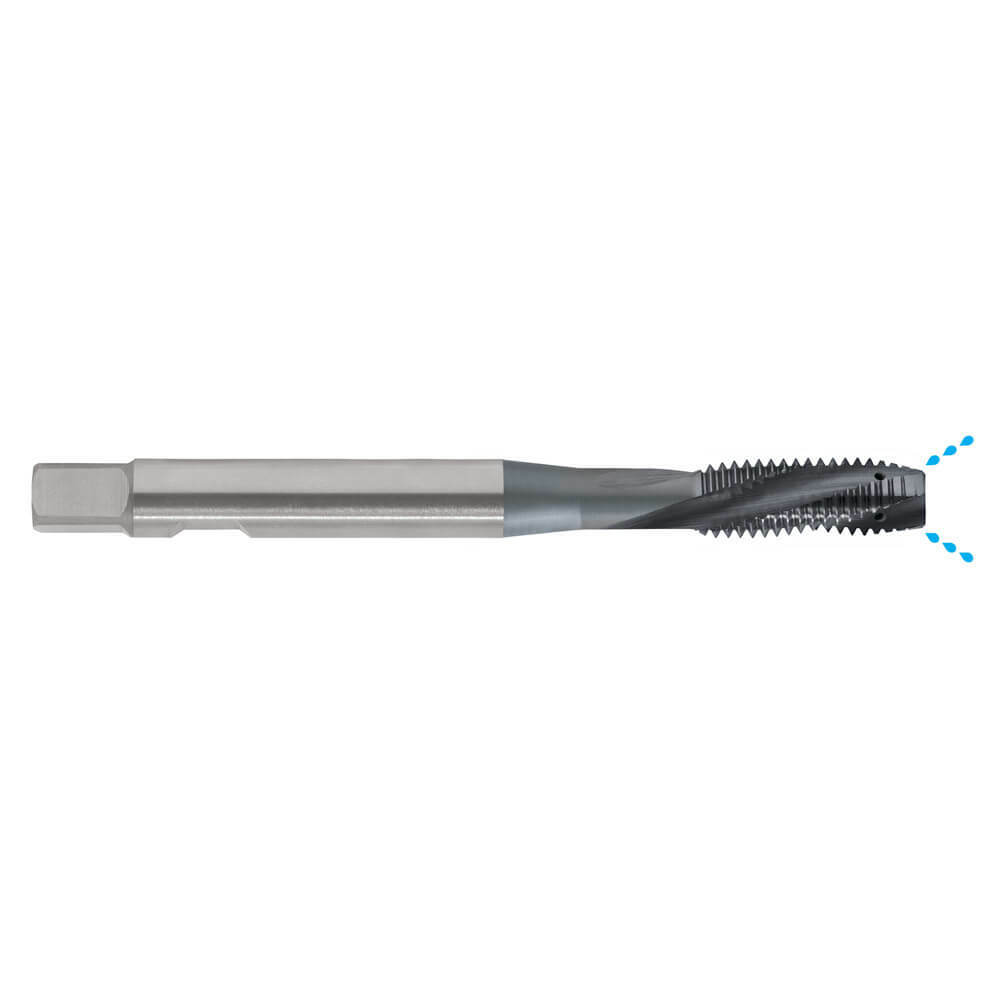

Sutton T367 Metric Spiral Flute Tap - Synchro - Vanadium HSS TiCN
