Sutton T3970250 M2.5 x 0.45 Spiral Flute Tap - Bottoming HSSE V3, Bright

Sutton T3970300 M3 x 0.5 Spiral Flute Tap - Bottoming - HSSE V3, Bright

Sutton T3970350 M3.5 x 0.6 Spiral Flute Tap - Bottoming - HSSE V3, Bright

Sutton T3970400 M4 x 0.7 Spiral Flute Tap - Bottoming - HSSE V3, Bright

Sutton T3970500 M5 x 0.8 Spiral Flute Tap - Bottoming - HSSE V3, Bright

Sutton T3970600 M6 x 1 Spiral Flute Tap - Bottoming - HSSE V3, Bright

Sutton T3970800 M8 x 1.25 Spiral Flute Tap - Bottoming - HSSE V3, Bright

Sutton T3971000 M10 x 1.5 Spiral Flute Tap - Bottoming - HSSE V3, Bright

Sutton T3971200 M12 x 1.75 Spiral Flute Tap - Bottoming - HSSE V3, Bright

Sutton T3971400 M14 x 2 Spiral Flute Tap - Bottoming - HSSE V3, Bright

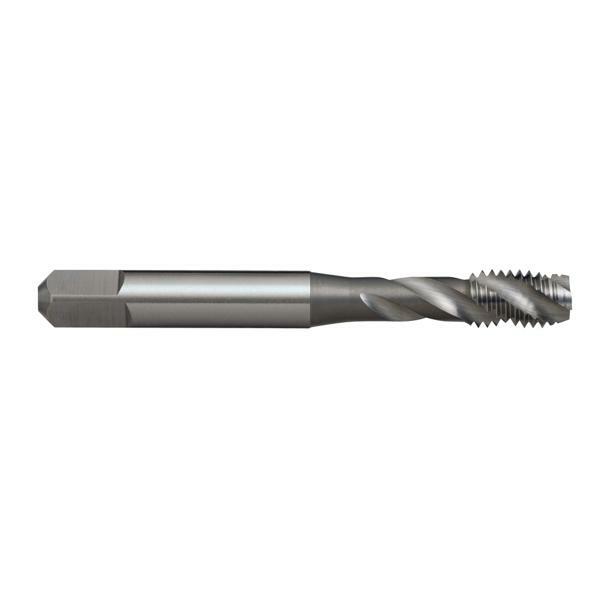

Sutton T3971600 M16 x 2 Spiral Flute Tap - Bottoming - HSSE V3, Bright

Sutton T3971800 M18 x 2.5 Spiral Flute Tap - Bottoming - HSSE V3, Bright

Sutton T3972000 M20 x 2.5 Spiral Flute Tap - Bottoming - HSSE V3, Bright

Sutton T3972200 M22 x 2.5 Spiral Flute Tap - Bottoming - HSSE V3, Bright

Sutton T3972400 M24 x 3 Spiral Flute Tap - Bottoming - HSSE V3, Bright

Sutton T3973000 M30 x 3.5 Spiral Flute Tap - Bottoming - HSSE V3, Bright

Specifications +

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Steam Oxide (Blue)
Max Cut Depth: 2.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R40
X: als
Type: Spiral Flute
Standard: ISO529
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form C / 3 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Features & Benefits +

Features

General purpose use
Suitable for materials up to 1000N/mm2
Blind holes
Depths up to approx. 2.5 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Suttons Spiral Flute Taps - M - Bright

SKU: A0014949

Type: Spiral Flute Tap

$63.95

Inc. GST

⚙High Speed Steel (HSS)

⚙Suttons Spiral Flute Taps

📐Multiple Sizes Available

🔩Precise Thread Cutting

🏗Metalworking & Manufacturing

☑High Speed Operation Rated

Available

Product Highlights −

Features

General purpose use
Suitable for materials up to 1000N/mm2
Blind holes
Depths up to approx. 2.5 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Steam Oxide (Blue)
Max Cut Depth: 2.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R40
X: als
Type: Spiral Flute
Standard: ISO529
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

FREE SHIPPING OVER $299*
RETURN AND EXCHANGE POLICY

Resources

Sutton-Tools-Taps-Dies-Threading-Catalogue

Sutton-Tools-ISO-Taps-Catalogue

Specifications +

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Steam Oxide (Blue)
Max Cut Depth: 2.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R40
X: als
Type: Spiral Flute
Standard: ISO529
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 2 / 6H
Lead: Form C / 3 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Features & Benefits +

Features

General purpose use
Suitable for materials up to 1000N/mm2
Blind holes
Depths up to approx. 2.5 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Available Options:

M2.5 x 0.45mm spiral flute tap
Model Number: T3970250
M3 x 0.5mm spiral flute tap
Model Number: T3970300
M3.5 x 0.6mm spiral flute tap
Model Number: T3970350
M4 x 0.7mm spiral flute tap
Model Number: T3970400
M5 x 0.8mm spiral flute tap
Model Number: T3970500
M6 x 1mm spiral flute tap
Model Number: T3970600
M8 x 1.25mm spiral flute tap
Model Number: T3970800
M10 x 1.5mm spiral flute tap
Model Number: T3971000
M12 x 1.75mm spiral flute tap
Model Number: T3971200
M14 x 2mm spiral flute tap
Model Number: T3971400
M16 x 2mm spiral flute tap
Model Number: T3971600
M18 x 2.5mm spiral flute tap
Model Number: T3971800
M20 x 2.5mm spiral flute tap
Model Number: T3972000
M22 x 2.5mm spiral flute tap
Model Number: T3972200
M24 x 3mm spiral flute tap
Model Number: T3972400
M30 x 3.5mm spiral flute tap
Model Number: T3973000
