Sutton T457 BSW Spiral Point Tap - Premium HSS 1

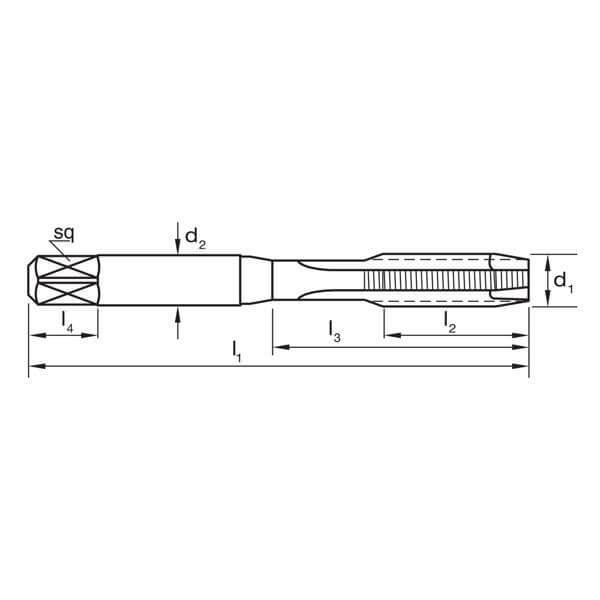

Sutton T457 BSW Spiral Point Tap - Premium HSS 2

Sutton T4570318 BSW 1/8 x 40 Spiral Point Tap - HSSE V3

Sutton T4570397 BSW 5/32 x 32 Spiral Point Tap - HSSE V3

Sutton T4570476 BSW 3/16 x 24 Spiral Point Tap - HSSE V3

Sutton T4570635 BSW 1/4 x 20 Spiral Point Tap - HSSE V3

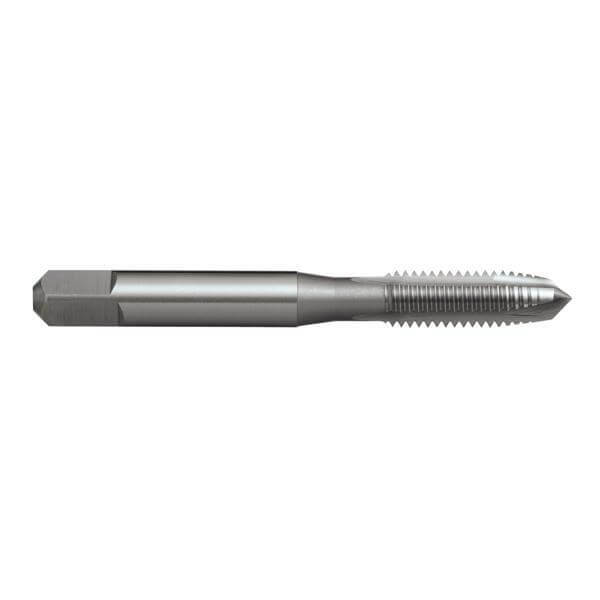

Sutton T4570794 BSW 5/16 x 18 Spiral Point Tap - HSSE V3

Sutton T4570953 BSW 3/8 x 16 Spiral Point Tap - HSSE V3

Sutton T4571111 BSW 7/16 x 14 Spiral Point Tap - HSSE V3

Sutton T4571270 BSW 1/2 x 12 Spiral Point Tap - HSSE V3

Sutton T4571588 BSW 5/8 x 11 Spiral Point Tap - HSSE V3

Sutton T4571905 BSW 3/4 x 10 Spiral Point Tap - HSSE V3

Description +

Features

General purpose use
Suitable for materials up to 1000N/mm2
Through holes
Depths up to approx. 3 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: ISO529
Thread Form: British Standard Whitworth 55¬∞ (BSW)
Nut Tolerance: Z3 Medium
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Specifications +

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: ISO529
Thread Form: British Standard Whitworth 55¬∞ (BSW)
Nut Tolerance: Z3 Medium
Lead: Form B / 4.5 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Features & Benefits +

Features

General purpose use
Suitable for materials up to 1000N/mm2
Through holes
Depths up to approx. 3 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T457 BSW Spiral Point Tap - Premium HSS

SKU: A0015583

$114.15

Inc. GST

Buy It Now

Available

The Sutton T457 BSW Spiral Point Tap by Sutton Tools is a 0 with Premium Grade High Speed Steel. It provides 1000N/mm2 and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed.
