Sutton T459 BSW Spiral Point Tap - Premium HSS Tinite1

Sutton T459 BSW Spiral Point Tap - Premium HSS Tinite2

Sutton T4590318 BSW 1/8 x 40 Spiral Point Tap - HSSE V3 TiN

Sutton T4590397 BSW 5/32 x 32 Spiral Point Tap - HSSE V3 TiN

Sutton T4590476 BSW 3/16 x 24 Spiral Point Tap - HSSE V3 TiN

Sutton T4590635 BSW 1/4 x 20 Spiral Point Tap - HSSE V3 TiN

Sutton T4590794 BSW 5/16 x 18 Spiral Point Tap - HSSE V3 TiN

Sutton T4590953 BSW 3/8 x 16 Spiral Point Tap - HSSE V3 TiN

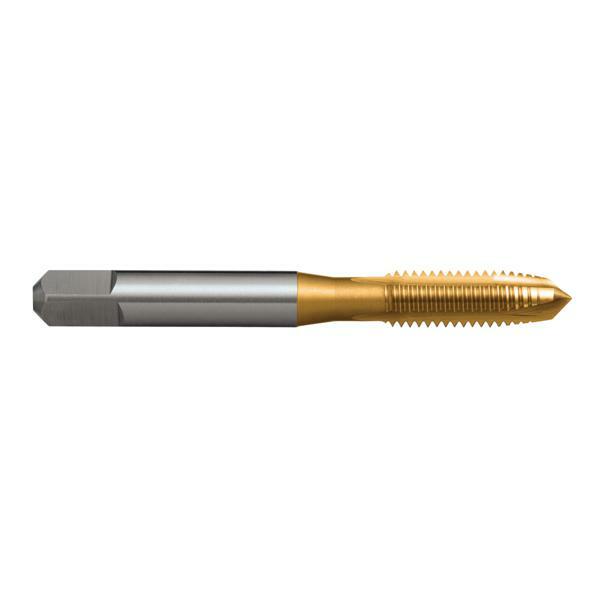

Sutton T4591270 BSW 1/2 x 12 Spiral Point Tap - HSSE V3 TiN

Sutton T4591588 BSW 5/8 x 11 Spiral Point Tap - HSSE V3 TiN

Sutton T4591905 BSW 3/4 x 10 Spiral Point Tap - HSSE V3 TiN

Description +

Dimensions

d1 (mm): 3.175
d2 (mm): 3.15
l1 (mm): 48
l2 (mm): 15
l3 (mm): 15
l4 (mm): 5
sq: 2.5
z: 3
Drill Size (mm): 2.55 (drill)
TPI: 40 (TPI)

Features

General purpose use
Suitable for materials up to 1000N/mm2
Through holes
Depths up to approx. 3 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Nitride (TiN) 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: ISO529
Thread Form: British Standard Whitworth 55Â° (BSW)
Nut Tolerance: Z3 Medium
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered

Specifications +

Dimensions

d1 (mm): 3.175
d2 (mm): 3.15
l1 (mm): 48
l2 (mm): 15
l3 (mm): 15
l4 (mm): 5
sq: 2.5
z: 3
Drill Size (mm): 2.55 (drill)
TPI: 40 (TPI)

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Nitride (TiN) 3xD
Shank Form: Reinforced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: ISO529
Thread Form: British Standard Whitworth 55Â° (BSW)
Nut Tolerance: Z3 Medium
Lead: Form B / 4.5 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered

Features & Benefits +

Features

General purpose use
Suitable for materials up to 1000N/mm2
Through holes
Depths up to approx. 3 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T459 BSW Spiral Point Tap - Premium HSS Tinite

SKU: A0015605

$336.07

Inc. GST

Buy It Now

Available

The Sutton T459 BSW Spiral Point Tap by Sutton Tools is a Spiral Point (Gun) with Premium Grade High Speed Steel (HSSE-V3) Titanium Nitride (TiN) finish. It provides 12 TPI and is suitable for through holes in annealed non-alloy steel.
