Sutton T458 1 x 8 TPI Spiral Point Tap Intermediate - HSSE - Steam Oxide - ISO 529
Available

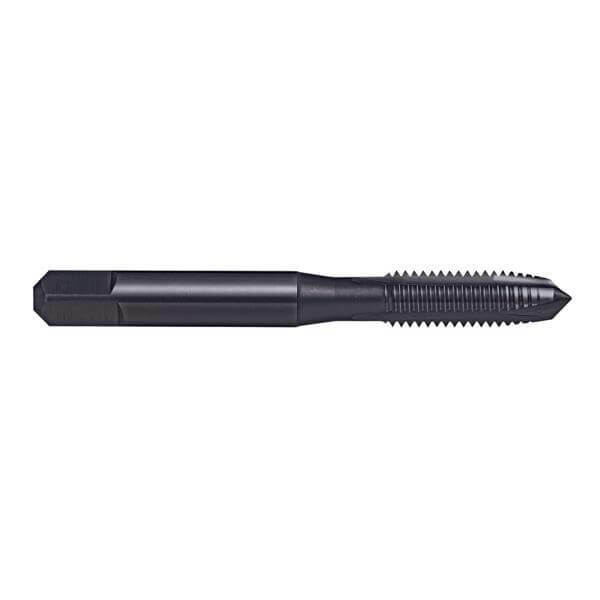

The Sutton T458 is a spiral point (gun) tap (intermediate chamfer) for BSW threads, made from premium grade high speed steel (HSSE) with a blue steam-oxide finish. This listing covers 12 sizes from 1/8 x 40 TPI to 1 x 8 TPI.
The gun (spiral point) nose curls the chip forward, ahead of the tap and out of the hole, so chip clogging is avoided and coolant can flow without problems. It suits through holes. The tap has a intermediate chamfer (Form D, 3.5 to 5 threads on the lead), generally for through holes.
The thread tolerance is Z3 Medium. The tap is built to ISO 529: short machine tap construction.
Where this product is used
- General purpose use.
- Suitable for materials up to 1000 N/mm2.
- Through holes.
- Depths up to approx. 3 x d1.
Design features
- Premium grade high speed steel (HSSE). The vanadium grade gives high wear resistance and toughness for most tapping applications.
- Blue steam-oxide finish for ferrous metals; it helps prevent chip build-up on the cutting edges and carries lubricant well.
- 3 to 4 flutes, depending on size.
- Intermediate chamfer (Form D), generally for through holes.
- Thread tolerance Z3 Medium.
- ISO 529 construction, short machine tap construction.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | TPI | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T458 0318 | 1/8 x 40 TPI | 40 | 2.55 | 48 | 15 | 15 | 3.15 | 2.5 | 5 | 3 |
| T458 0397 | 5/32 x 32 TPI | 32 | 3.2 | 53 | 17 | 17 | 4 | 3.15 | 6 | 3 |
| T458 0476 | 3/16 x 24 TPI | 24 | 3.7 | 58 | 16 | 22 | 5 | 4 | 7 | 3 |
| T458 0635 | 1/4 x 20 TPI | 20 | 5.1 | 66 | 19 | 25 | 6.3 | 5 | 8 | 3 |
| T458 0794 | 5/16 x 18 TPI | 18 | 6.5 | 72 | 22 | 30 | 8 | 6.3 | 9 | 3 |
| T458 0953 | 3/8 x 16 TPI | 16 | 7.9 | 80 | 24 | 33 | 10 | 8 | 11 | 3 |
| T458 1111 | 7/16 x 14 TPI | 14 | 9.3 | 85 | 25 | - | 8 | 6.3 | 9 | 3 |
| T458 1270 | 1/2 x 12 TPI | 12 | 10.5 | 89 | 29 | - | 9 | 7.1 | 10 | 3 |
| T458 1588 | 5/8 x 11 TPI | 11 | 13.5 | 102 | 32 | - | 12.5 | 10 | 13 | 3 |
| T458 1905 | 3/4 x 10 TPI | 10 | 16.25 | 112 | 37 | - | 14 | 11.2 | 14 | 4 |
| T458 2223 | 7/8 x 9 TPI | 9 | 19.25 | 118 | 38 | - | 16 | 12.5 | 16 | 4 |
| T458 2540 | 1 x 8 TPI | 8 | 22 | 130 | 45 | - | 18 | 14 | 18 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T458 |
| Type | Spiral point (gun) tap |
| Thread series | BSW |
| Material | HSSE |
| Finish | Steam Oxide |
| Chamfer | Intermediate (Form D) |
| Thread tolerance | Z3 Medium |
| Standard | ISO 529 |
| Flutes | 3 to 4 |
| Sizes in this listing | 12 sizes, 1/8 x 40 TPI to 1 x 8 TPI |
Related products
Related Sutton taps: T457 BSW Spiral Point Tap Intermediate - HSSE - Bright - ISO 529, T459 BSW Spiral Point Tap Intermediate - HSSE - TiN - ISO 529.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Sutton T458 BSW Spiral Point Tap Intermediate - HSSE - Steam Oxide - ISO 529: 8
SKU: A0015596 | Model: T4582540
This is the tpi 8 option of the Sutton T458 BSW Spiral Point Tap Intermediate - HSSE - Steam Oxide - ISO 529. Key details for this option: thread size 1 x 8 TPI, thread length 45mm, tapping drill size 22mm, square size 14mm, shank diameter 18mm.
