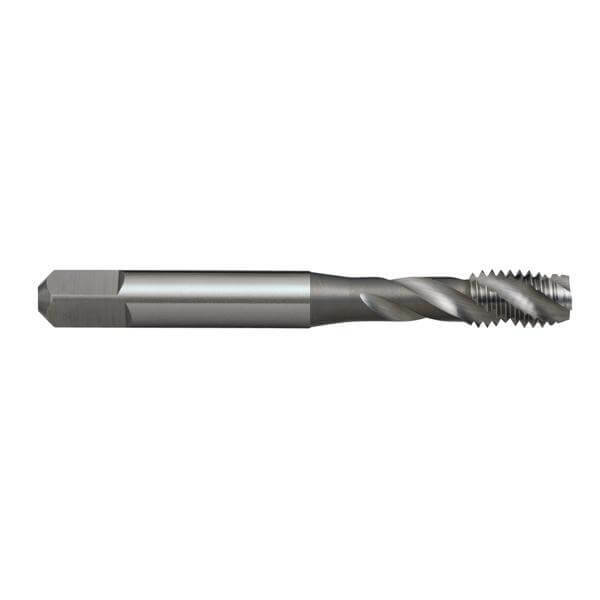

Sutton T460 1 x 8 TPI Spiral Flute Tap Bottoming - HSSE - Bright - ISO 529
Available
The Sutton T460 is a spiral flute tap (R40 spiral, bottoming chamfer) for BSW threads, made from premium grade high speed steel (HSSE) with a bright finish. This listing covers 12 sizes from 1/8 x 40 TPI to 1 x 8 TPI.
The 40° right-hand spiral flute suits blind holes in long chipping materials: the high helix angle curls the chips and transports them back out of the hole. The tap cuts on reversal, so the flutes have rake on both front and back faces. The tap has a bottoming chamfer (Form E, 1.5 to 2 threads on the lead), for blind holes with very short thread run-out.
The thread tolerance is Z3 Medium. The tap is built to ISO 529: short machine tap construction.
Where this product is used
- General purpose use.
- Suitable for materials up to 1000 N/mm2.
- Blind holes.
- Depths up to approx. 2.5 x d1.
Design features
- Premium grade high speed steel (HSSE). The vanadium grade gives high wear resistance and toughness for most tapping applications.
- Bright finish for general purpose applications.
- 3 to 4 flutes, depending on size.
- 40° right-hand spiral flute.
- Bottoming chamfer (Form E), for blind holes with very short thread run-out.
- Thread tolerance Z3 Medium.
- ISO 529 construction, short machine tap construction.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.

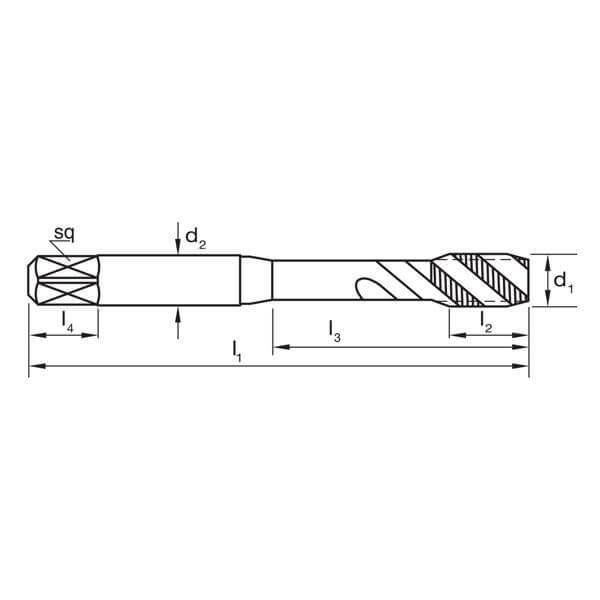

| Item no. | Thread size | TPI | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T460 0318 | 1/8 x 40 TPI | 40 | 2.55 | 48 | 6 | 15 | 3.15 | 2.5 | 5 | 3 |
| T460 0397 | 5/32 x 32 TPI | 32 | 3.2 | 53 | 7 | 17 | 4 | 3.15 | 6 | 3 |
| T460 0476 | 3/16 x 24 TPI | 24 | 3.7 | 58 | 11 | 22 | 5 | 4 | 7 | 3 |
| T460 0635 | 1/4 x 20 TPI | 20 | 5.1 | 66 | 10 | 25 | 6.3 | 5 | 8 | 3 |
| T460 0794 | 5/16 x 18 TPI | 18 | 6.5 | 72 | 13 | 30 | 8 | 6.3 | 9 | 3 |
| T460 0953 | 3/8 x 16 TPI | 16 | 7.9 | 80 | 16 | 33 | 10 | 8 | 11 | 3 |
| T460 1111 | 7/16 x 14 TPI | 14 | 9.3 | 85 | 18 | - | 8 | 6.3 | 9 | 3 |
| T460 1270 | 1/2 x 12 TPI | 12 | 10.5 | 89 | 20 | - | 9 | 7.1 | 10 | 3 |
| T460 1588 | 5/8 x 11 TPI | 11 | 13.5 | 102 | 20 | - | 12.5 | 10 | 13 | 3 |
| T460 1905 | 3/4 x 10 TPI | 10 | 16.25 | 112 | 25 | - | 14 | 11.2 | 14 | 4 |
| T460 2223 | 7/8 x 9 TPI | 9 | 19.25 | 118 | 28 | - | 16 | 12.5 | 16 | 4 |
| T460 2540 | 1 x 8 TPI | 8 | 22 | 130 | 35 | - | 18 | 14 | 18 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T460 |
| Type | Spiral flute tap |
| Thread series | BSW |
| Material | HSSE |
| Finish | Bright |
| Spiral | R40 (40° right-hand) |
| Chamfer | Bottoming (Form E) |
| Thread tolerance | Z3 Medium |
| Standard | ISO 529 |
| Flutes | 3 to 4 |
| Sizes in this listing | 12 sizes, 1/8 x 40 TPI to 1 x 8 TPI |
Related products
Related Sutton taps: T461 BSW Spiral Flute Tap Bottoming - HSSE - Steam Oxide - ISO 529, T462 BSW Spiral Flute Tap Bottoming - HSSE - TiN - ISO 529.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Sutton T460 BSW Spiral Flute Tap Bottoming - HSSE - Bright - ISO 529: 8
SKU: A0015617 | Model: T4602540
This is the tpi 8 option of the Sutton T460 BSW Spiral Flute Tap Bottoming - HSSE - Bright - ISO 529. Key details for this option: thread size 1 x 8 TPI, thread length 35mm, tapping drill size 22mm, square size 14mm, shank diameter 18mm.
