Sutton T461 1/2 x 12 TPI Spiral Flute Tap Bottoming - HSSE - Steam Oxide - ISO 529
Available

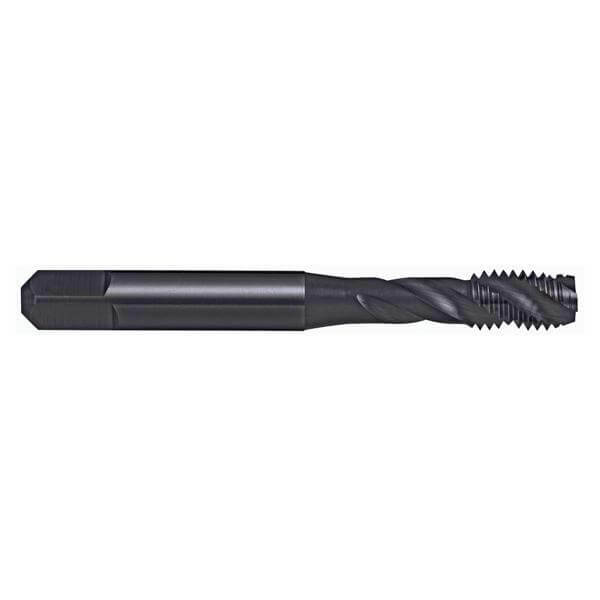

The Sutton T461 is a spiral flute tap (R40 spiral, bottoming chamfer) for BSW threads, made from premium grade high speed steel (HSSE) with a blue steam-oxide finish. This listing covers 7 sizes from 1/4 x 20 TPI to 3/4 x 10 TPI.
The 40° right-hand spiral flute suits blind holes in long chipping materials: the high helix angle curls the chips and transports them back out of the hole. The tap cuts on reversal, so the flutes have rake on both front and back faces. The tap has a bottoming chamfer (Form E, 1.5 to 2 threads on the lead), for blind holes with very short thread run-out.
The thread tolerance is Z3 Medium. The tap is built to ISO 529: short machine tap construction.
Where this product is used
- General purpose use.
- Suitable for materials up to 1000 N/mm2.
- Blind holes.
- Depths up to approx. 2.5 x d1.
Design features
- Premium grade high speed steel (HSSE). The vanadium grade gives high wear resistance and toughness for most tapping applications.
- Blue steam-oxide finish for ferrous metals; it helps prevent chip build-up on the cutting edges and carries lubricant well.
- 3 to 4 flutes, depending on size.
- 40° right-hand spiral flute.
- Bottoming chamfer (Form E), for blind holes with very short thread run-out.
- Thread tolerance Z3 Medium.
- ISO 529 construction, short machine tap construction.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.

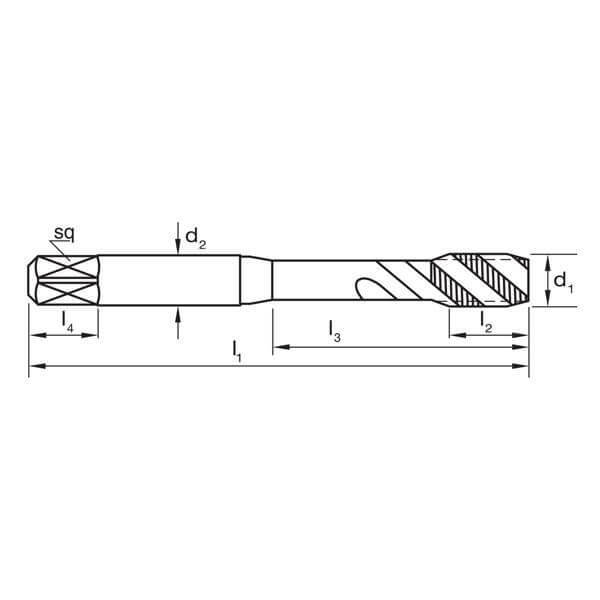

| Item no. | Thread size | TPI | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T461 0635 | 1/4 x 20 TPI | 20 | 5.1 | 66 | 10 | 25 | 6.3 | 5 | 8 | 3 |
| T461 0794 | 5/16 x 18 TPI | 18 | 6.5 | 72 | 13 | 30 | 8 | 6.3 | 9 | 3 |
| T461 0953 | 3/8 x 16 TPI | 16 | 7.9 | 80 | 16 | 33 | 10 | 8 | 11 | 3 |
| T461 1111 | 7/16 x 14 TPI | 14 | 9.3 | 85 | 18 | - | 8 | 6.3 | 9 | 3 |
| T461 1270 | 1/2 x 12 TPI | 12 | 10.5 | 89 | 20 | - | 9 | 7.1 | 10 | 3 |
| T461 1588 | 5/8 x 11 TPI | 11 | 13.5 | 102 | 20 | - | 12.5 | 10 | 13 | 3 |
| T461 1905 | 3/4 x 10 TPI | 10 | 16.25 | 112 | 25 | - | 14 | 11.2 | 14 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T461 |
| Type | Spiral flute tap |
| Thread series | BSW |
| Material | HSSE |
| Finish | Steam Oxide |
| Spiral | R40 (40° right-hand) |
| Chamfer | Bottoming (Form E) |
| Thread tolerance | Z3 Medium |
| Standard | ISO 529 |
| Flutes | 3 to 4 |
| Sizes in this listing | 7 sizes, 1/4 x 20 TPI to 3/4 x 10 TPI |
Related products
Related Sutton taps: T460 BSW Spiral Flute Tap Bottoming - HSSE - Bright - ISO 529, T462 BSW Spiral Flute Tap Bottoming - HSSE - TiN - ISO 529.
