Sutton T462 BSW Spiral Flute Tap - Bottoming - Premium HSS Tinite1

Sutton T462 BSW Spiral Flute Tap - Bottoming - Premium HSS Tinite2

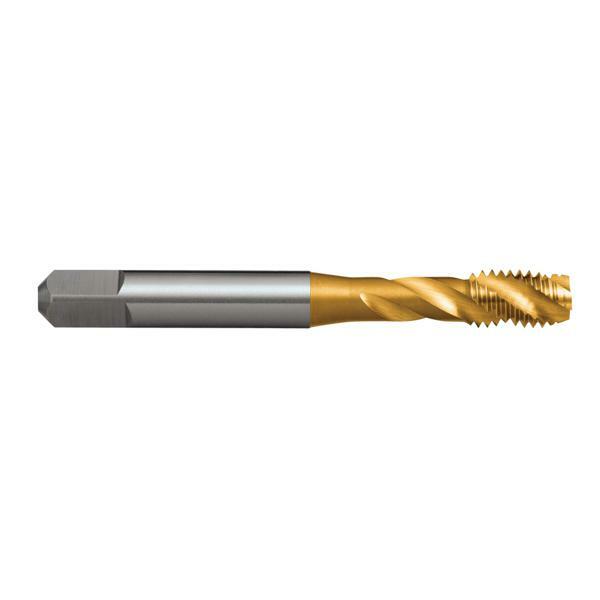

Sutton T4620476 BSW 3/16 x 24 Spiral Flute Tap - Bottoming - HSSE V3 TiN

Sutton T4620635 BSW 1/4 x 20 Spiral Flute Tap - Bottoming - HSSE V3 TiN

Sutton T4620794 BSW 5/16 x 18 Spiral Flute Tap - Bottoming - HSSE V3 TiN

Sutton T4620953 BSW 3/8 x 16 Spiral Flute Tap - Bottoming - HSSE V3 TiN

Sutton T4621270 BSW 1/2 x 12 Spiral Flute Tap - Bottoming - HSSE V3 TiN

Sutton T4621588 BSW 5/8 x 11 Spiral Flute Tap - Bottoming - HSSE V3 TiN

Description +

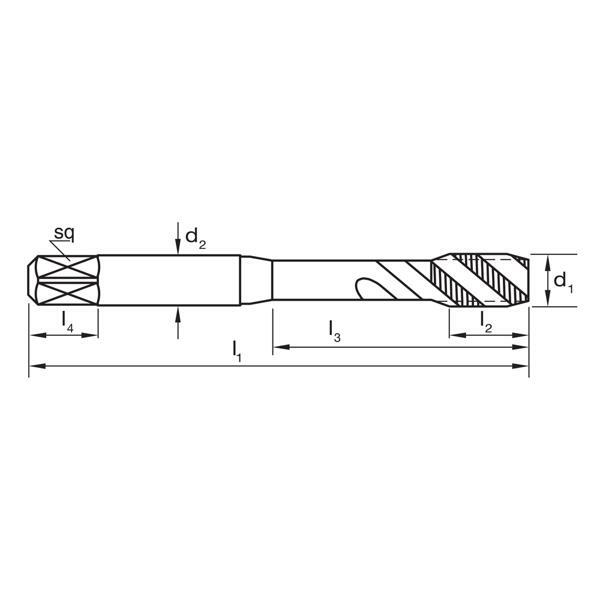

Dimensions

d1 (mm): 4.7625
d2 (mm): 5
l1 (mm): 58
l2 (mm): 11
l3 (mm): 22
l4 (mm): 7
sq: 4
z: 3
Drill Size (mm): 3.7 (drill)
TPI: 24 (TPI)

Features

General purpose use
Suitable for materials up to 1000N/mm2
Blind holes
Depths up to approx. 2.5 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Nitride (TiN)
Max Cut Depth: 2.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R40
X: als
Type: Spiral Flute
Standard: ISO529
Thread Form: British Standard Whitworth 55Â° (BSW)
Nut Tolerance: Z3 Medium
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered

Specifications +

Dimensions

d1 (mm): 4.7625
d2 (mm): 5
l1 (mm): 58
l2 (mm): 11
l3 (mm): 22
l4 (mm): 7
sq: 4
z: 3
Drill Size (mm): 3.7 (drill)
TPI: 24 (TPI)

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Nitride (TiN)
Max Cut Depth: 2.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R40
X: als
Type: Spiral Flute
Standard: ISO529
Thread Form: British Standard Whitworth 55Â° (BSW)
Nut Tolerance: Z3 Medium
Lead: Form C / 3 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered

Features & Benefits +

Features

General purpose use
Suitable for materials up to 1000N/mm2
Blind holes
Depths up to approx. 2.5 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T462 BSW Spiral Flute Tap - Bottoming - Premium HSS Tinite

SKU: A0015630

$290.63

Inc. GST

Buy It Now

Available

The Sutton T462 BSW Spiral Flute Tap by Sutton Tools is a 0 made from Premium Grade High Speed Steel (HSSE-V3). It provides 12 TPI and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed.
