Sutton T684 M3 x 0.5 Spiral Flute Tap R50 Black Magic - PM-HSSE V3 - Hardlube - DIN 371
Available
The Sutton T684 is a spiral flute tap (R50 spiral, UNI designation, Black Magic range) for metric coarse (M) threads, made from powder metallurgy, vanadium grade high speed steel (PM-HSSE V3) with a Hardlube (TiAlN + WC/C) coating. This listing covers 6 sizes from M3 x 0.5 to M10 x 1.5.
The 50° right-hand spiral flute suits blind holes in long chipping materials: the high helix angle curls the chips and transports them back out of the hole. The tap cuts on reversal, so the flutes have rake on both front and back faces. The UNI designation is for normal, general purpose materials, with a normal rake angle and high thread relief, in powder metal high speed steel. The chamfer is Form C (2.5 x P), generally for blind holes.
The thread tolerance is 6HX. The tap is built to DIN 371: reinforced shank with square drive.
Where this product is used
- Universal high performance tapping.
- Use in stainless steels and high strength steels up to 850 N/mm2.
- Blind holes up to 3 x d1.
- Suitable for synchronous tapping in machine operations.
Design features
- Powder metallurgy, vanadium grade high speed steel (PM-HSSE V3). The very fine and uniform grain structure allows high hardness while keeping good toughness, for materials up to 40 HRC and difficult-to-machine materials such as stainless steels.
- Hardlube (TiAlN + WC/C) coating for tapping hard-to-machine materials, with minimum quantity lubrication (MQL) or dry machining, longer tool life and higher cutting speeds.
- 3 flutes.
- 50° right-hand spiral flute.
- Form C chamfer, 2.5 x P.
- Thread tolerance 6HX.
- The UNI designation is for normal, general purpose materials, with a normal rake angle and high thread relief, in powder metal high speed steel.
- PM-HSSE V3 offers superior tool life.
- DIN 371 construction, reinforced shank with square drive.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T684 0300 | M3 x 0.5 | 0.5 | 2.5 | 56 | 5 | 18 | 3.5 | 2.7 | 6 | 3 |
| T684 0400 | M4 x 0.7 | 0.7 | 3.3 | 63 | 7 | 21 | 4.5 | 3.4 | 6 | 3 |
| T684 0500 | M5 x 0.8 | 0.8 | 4.2 | 70 | 8 | 25 | 6 | 4.9 | 8 | 3 |
| T684 0600 | M6 x 1 | 1 | 5 | 80 | 10 | 30 | 6 | 4.9 | 8 | 3 |

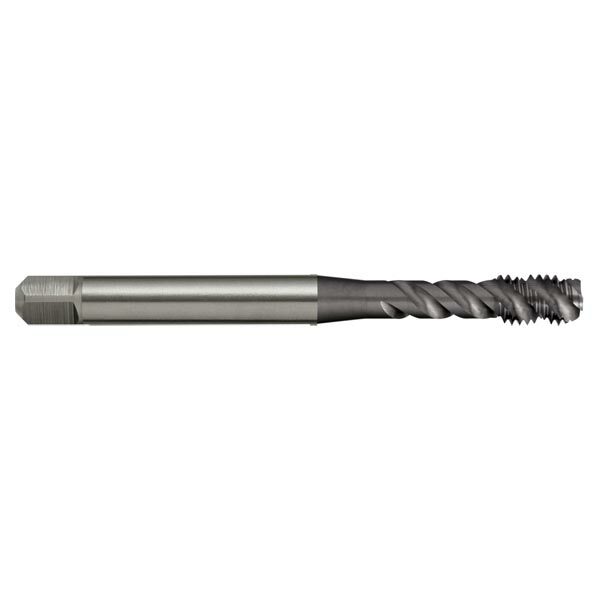

| T684 0800 | M8 x 1.25 | 1.25 | 6.8 | 90 | 12.5 | 35 | 8 | 6.2 | 9 | 3 |
| T684 1000 | M10 x 1.5 | 1.5 | 8.5 | 100 | 15 | 39 | 10 | 8 | 11 | 3 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T684 |
| Type | Spiral flute tap |
| Thread series | Metric coarse (M) |
| Material | PM-HSSE V3 |
| Finish | Hardlube |
| Designation | UNI |
| Spiral | R50 (50° right-hand) |
| Chamfer | Form C / 2.5 x P |
| Thread tolerance | 6HX |
| Standard | DIN 371 |
| Flutes | 3 |
| Sizes in this listing | 6 sizes, M3 x 0.5 to M10 x 1.5 |
