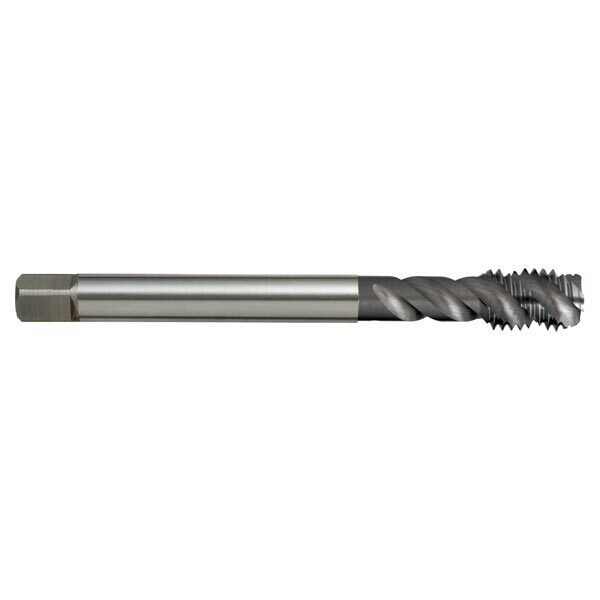

Sutton T6851200 M12 x 1.75 Spiral Flute Tap R50 UNI Black Magic - HSSE V3

Sutton T6851400 M14 x 2 Spiral Flute Tap - R50 UNI Black Magic - HSSE V3

Sutton T6851600 M16 x 2 Spiral Flute Tap - R50 UNI Black Magic - HSSE V3

Sutton T6851800 M18 x 2.5 Spiral Flute Tap - R50 UNI Black Magic - HSSE V3

Sutton T6852000 M20 x 2.5 Spiral Flute Tap - R50 UNI Black Magic - HSSE V3

Description +

Dimensions

d1: M12
d2 (mm): 9
l1 (mm): 110
l2 (mm): 17.5
l4 (mm): 10
Square Size (mm): 7
z: 3
Drill Size (mm): 10.2 (drill)
Pitch (mm): 1.75 (pitch)

Features

General purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Depths up to approx. 1 x d1

Specifications

Designation: UNI (for normal general purpose type materials)
Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish: Hardlube
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
Helix Angle: R50
X: als
Type: Spiral Flute
Standard: DIN376
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form C / 3 x P

Specifications +

Dimensions

d1: M12
d2 (mm): 9
l1 (mm): 110
l2 (mm): 17.5
l4 (mm): 10
Square Size (mm): 7
z: 3
Drill Size (mm): 10.2 (drill)
Pitch (mm): 1.75 (pitch)

Specifications

Designation: UNI (for normal general purpose type materials)
Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish: Hardlube
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
Helix Angle: R50
X: als
Type: Spiral Flute
Standard: DIN376
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: 6HX
Lead: Form C / 3 x P

Features & Benefits +

Features

General purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Depths up to approx. 1 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T685 Metric Spiral Flute Tap - R50 UNI Black Magic - HSSE V3

SKU: A0015934

$180.59

Inc. GST

Buy It Now

Available

The Sutton T685 Metric Spiral Flute Tap by Sutton Tools is a 0 made of Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3). It provides M12 thread form ISO Metric Coarse (M) and is suitable for through & blind holes.
