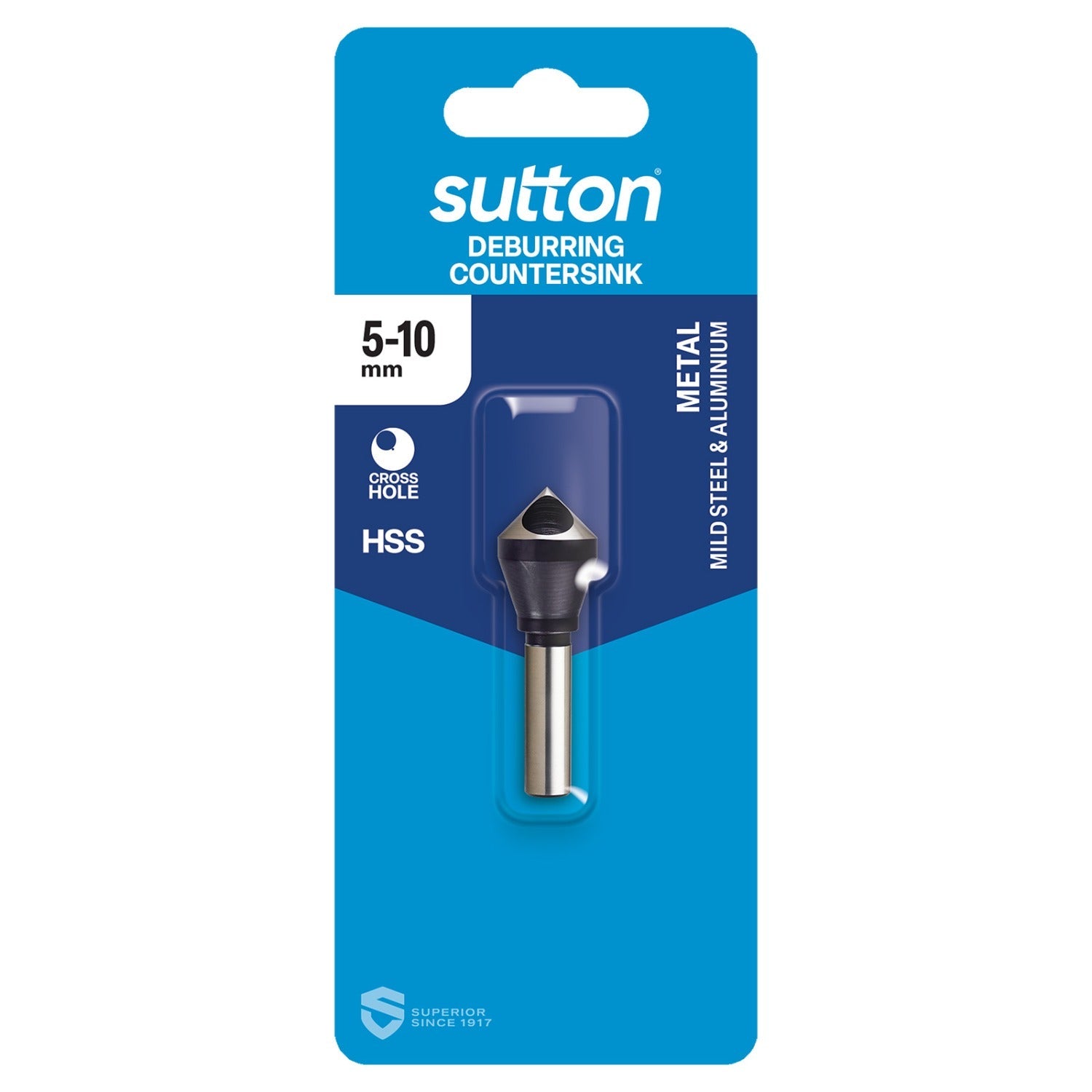

Sutton 5-10mm 90° Deburring Countersink Cross Hole C200 - HSS - 48mm OAL
Available
The Sutton C200 is a range of 90° cross hole deburring countersinks in M2 high speed steel (HSS) for removing burrs. This range has 3 sizes for hole ranges of 5 to 10, 10 to 15 and 15 to 20 mm, with 8, 10 and 12 mm shanks.
The cross hole design is for removing burrs. M2 high speed steel offers the best combination of strength, heat and wear resistance. The tools suit steel, tool steel, stainless steel, cast iron, brass and aluminium, and can be used in portable and pedestal drilling machines.
Where this product is used
- Removing burrs from drilled holes in steel, tool steel, stainless steel, cast iron, brass and aluminium.
- Use in a portable or pedestal drilling machine.
Sizes and item numbers
Every size in the range, with its Sutton item number. Lengths and shank sizes are in millimetres.
| Item no. | Diameter d1 (mm) | Range (mm) | Overall length (mm) | Shank (mm) |
|---|---|---|---|---|
| C200 H 0510 | 14 | 5-10 | 48 | 8 |
| C200 H 1015 | 21 | 10-15 | 65 | 10 |
| C200 H 1520 | 28 | 15-20 | 84 | 12 |
Using the tool
- Use light pressure at a low to moderate speed and let the cutting edges remove the burr.
- Use cutting fluid when working steel or stainless steel.
- Hold the work firmly so the tool does not grab as it breaks through.
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | C200 (90° cross hole deburring countersink) |
| Material | M2 high speed steel (HSS) |
| Finish | Bright |
| Point angle | 90° |
| Sizes in this range | 3 sizes, 5 to 20 mm hole ranges |
Related products
Compare other Sutton countersinks and deburring tools: C101 cross hole deburring countersinks, C102 TiN cross hole deburring countersinks and C201 three flute countersinks. Browse all deburring tools and countersink bit sets.
