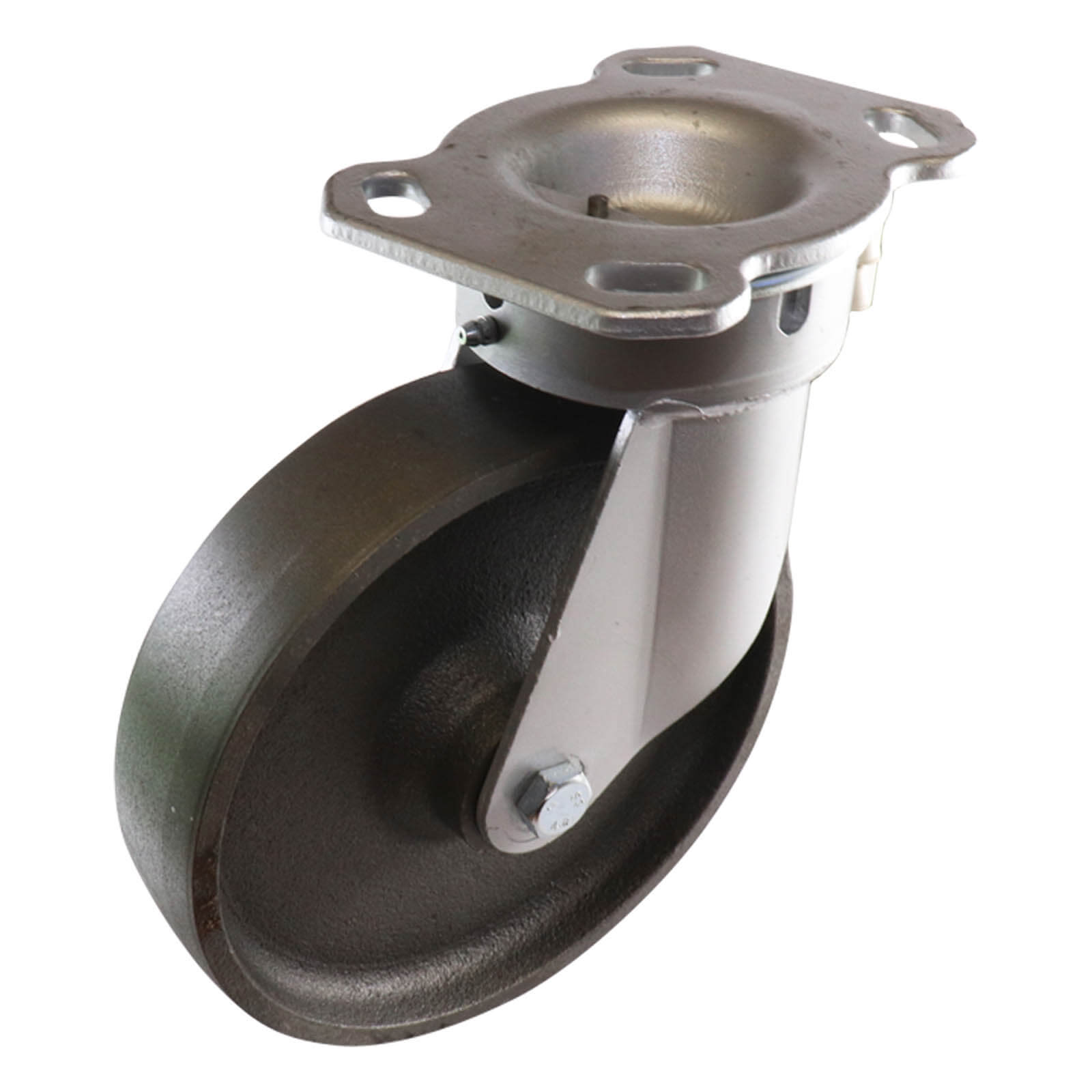

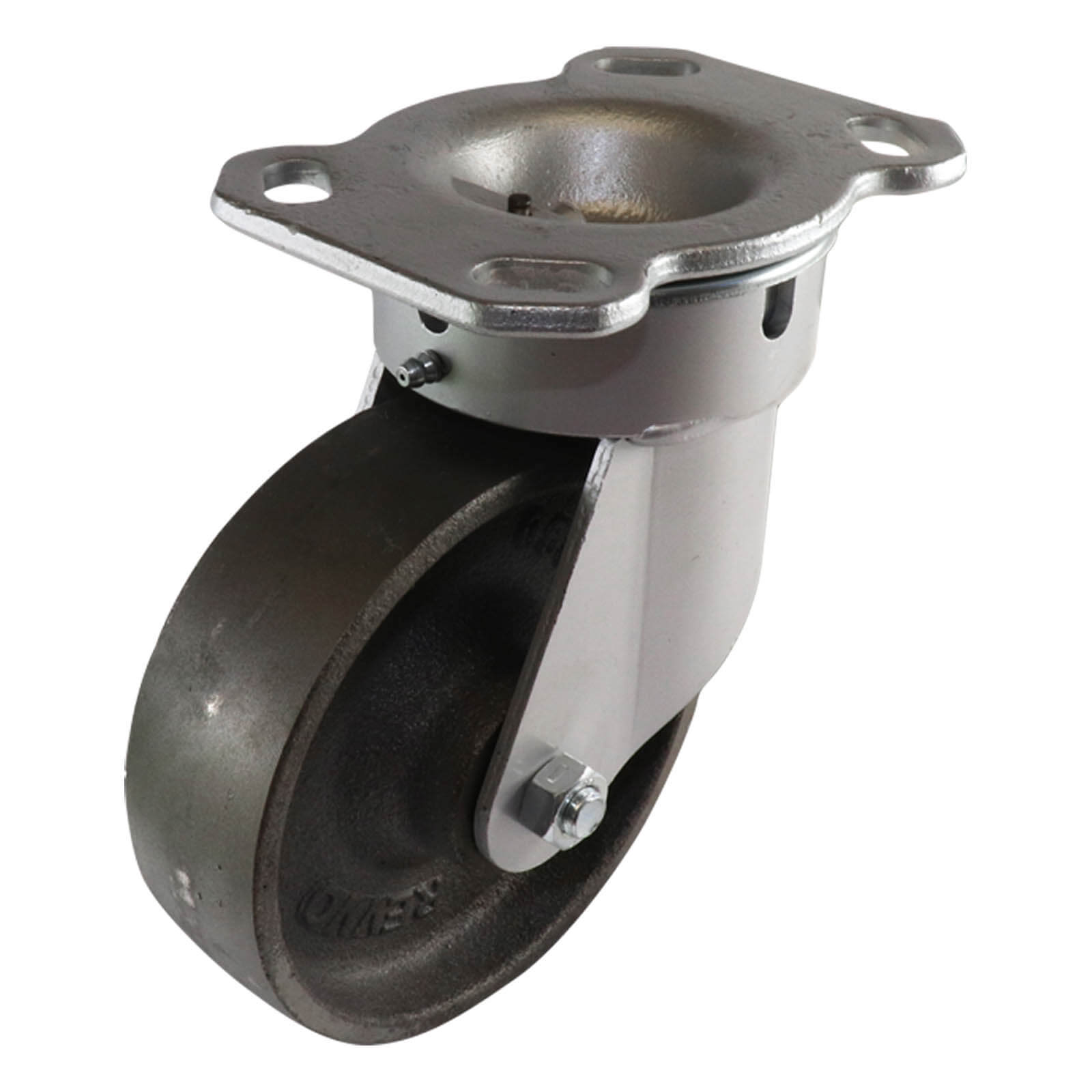

EasyRoll TH Swivel Plate Castor, Cast Iron 150 mm | TSH150CI15

The EasyRoll TH series swivel plate castor is fitted with a cast iron wheel and is available in 150 and 200 mm wheel diameters. Load capacity is 910 kg to 1,150 kg per castor depending on the wheel size. The top plate is 150 x 110 mm with hole centres of 105 x 60-80 mm.

The TH series is suited to heavy machinery; dollies and stillages; and gantries and mobile work benches. It has full complement ball race.

Where this product is used

• Heavy machinery
• Dollies and stillages
• Gantries and mobile work benches
• Shipyards
• Mining

Features

• Cast iron wheel in 150 and 200 mm
• Load capacity 910 kg to 1,150 kg per castor
• Kingpinless swivel with a forged steel top plate joined to the outer swivel ring by a full complement ball race running in hardened tracks
• Heavy duty fabricated construction withstands high impact loads
• Closed head ring forms a grease reservoir that keeps the headrace lubricant in
• Robust brake assembly

Key specifications

Options and part numbers

Selecting the right option

A swivel castor turns to follow the direction of travel and a fixed castor rolls in a straight line, so many trolleys use fixed castors at one end and swivel castors at the other. EHI rates cast iron wheels as follows: poor shock absorbency and floor protection, excellent load capacity, push effort and durability. It suits oven floors, outdoor or unsealed surfaces and broken glass, is the best choice for high temperature and may damage flooring. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h (manufacturer-stated). The capacity of a trolley is not the sum of its castors: for a four wheel trolley EHI recommends each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries. If you are unsure which castor suits your application, contact AIMS with the load, the floor type and how the equipment is used.
