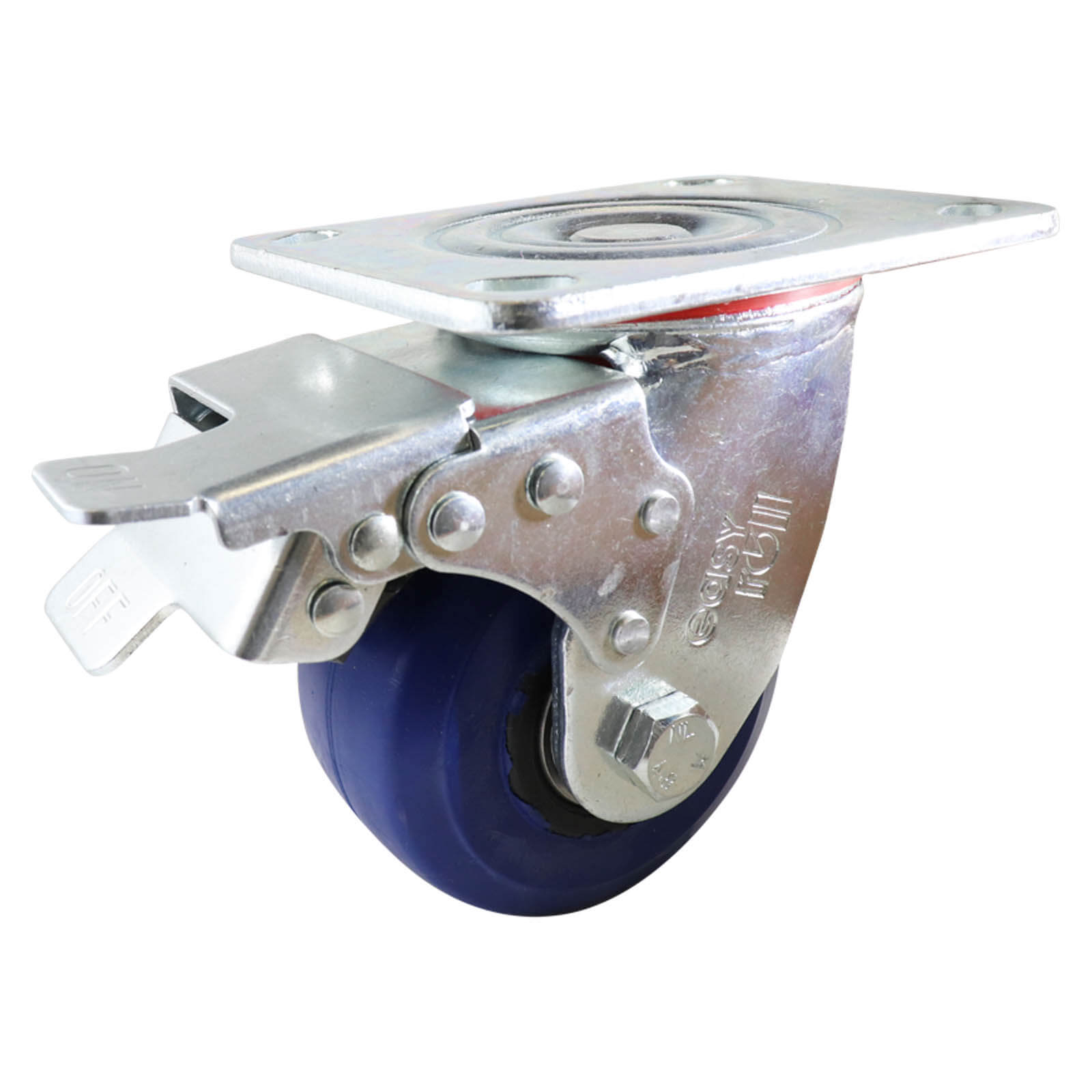

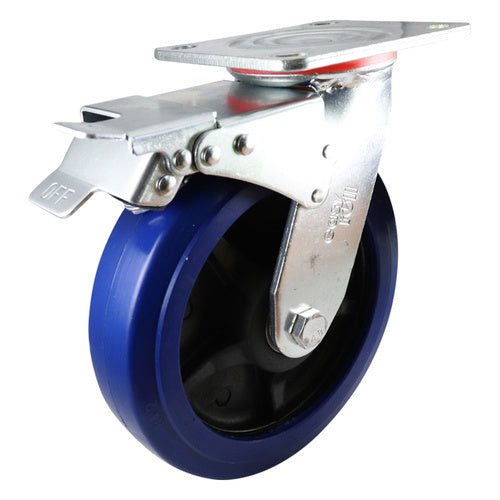

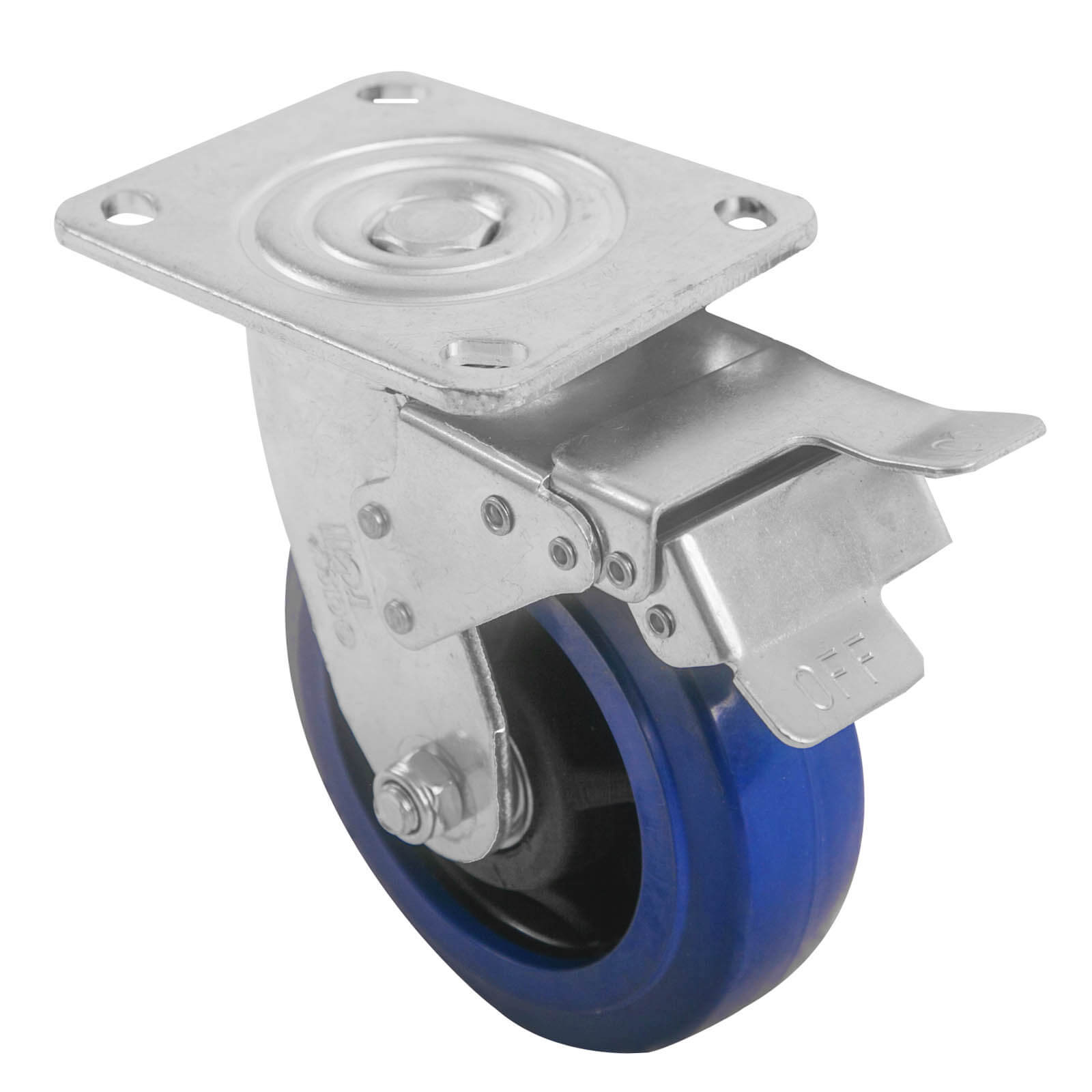

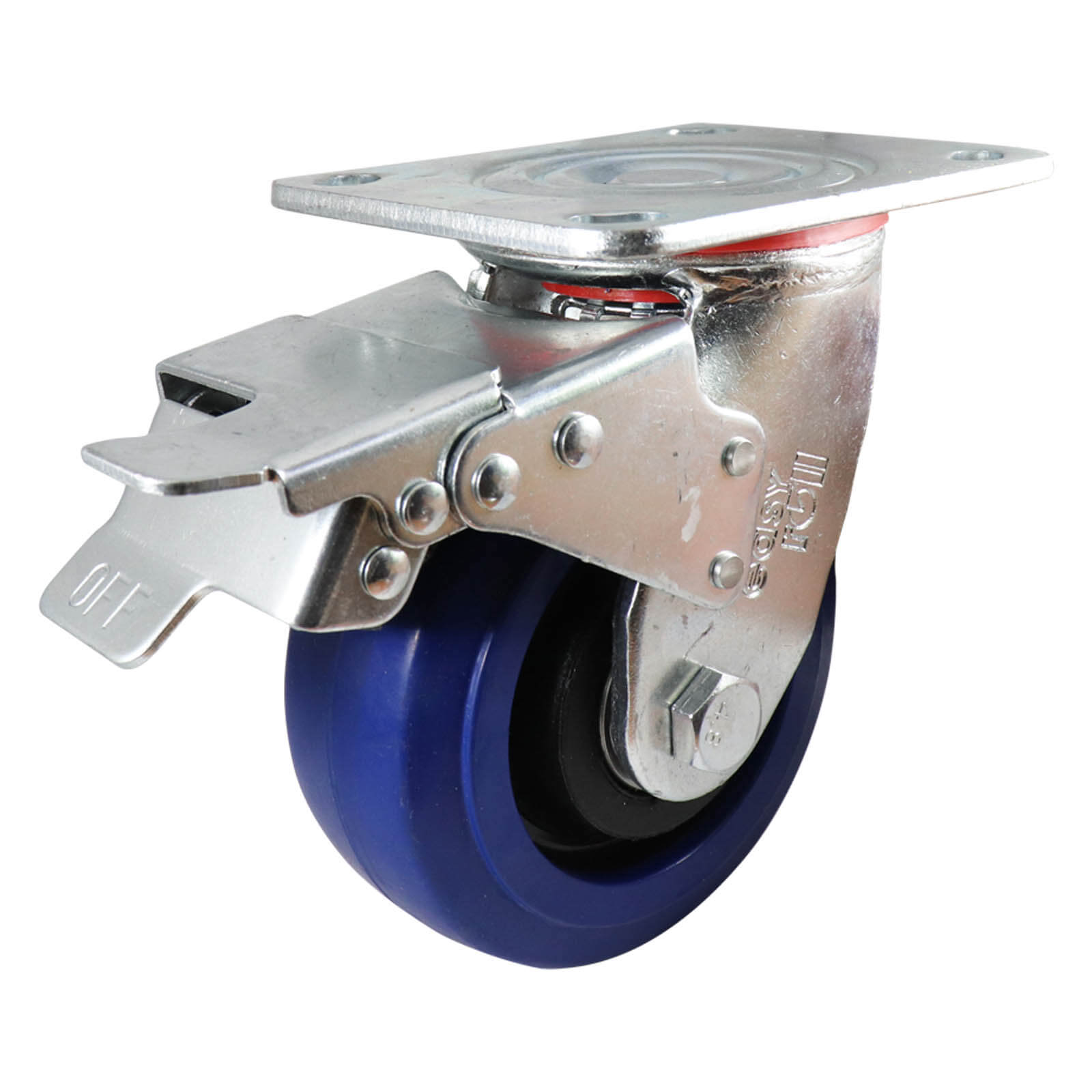

EasyRoll j3 series swivel plate castor with brake

The EasyRoll J3 series swivel plate castor with brake is fitted with a blue rubber wheel and is available in 100, 125, 150 and 200mm wheel diameters. Load capacity is 200kg to 500kg per castor depending on the wheel size. The top plate is 135 x 110mm with hole centres of 105 x 80mm.

The J3 series is suited to general and stock picking trolleys, dollies and stillages and catering and industrial laundry equipment. It has precision wheel bearings.

Where this product is used

• General and stock picking trolleys
• Dollies and stillages
• Catering and industrial laundry equipment

Features

• Blue rubber wheel in 100, 125, 150 and 200mm
• Load capacity 200kg to 500kg per castor
• Total lock brake stops both swivel and wheel rotation
• Heavy duty fabricated construction withstands high impact loads
• Dust sealing rings extend the life of the bearings
• Grease nipple to the headset bearings
• All wheels come with precision bearings
• Robust brake assembly with an adjustable brake

Key specifications

Choosing the right option

A swivel castor turns to follow the direction of travel and a fixed castor rolls in a straight line, so many trolleys use fixed castors at one end and swivel castors at the other. A total lock brake stops both the swivel action and the wheel rotation, which is the safest of all brake types. Blue rubber wheels: excellent shock absorbency and floor protection, good load capacity and durability and fair push effort. It is the highest shock absorbency and suited to quality flooring and rougher surfaces. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h. The capacity of a trolley is not the sum of its castors: for a four wheel trolley it is best that each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries.
