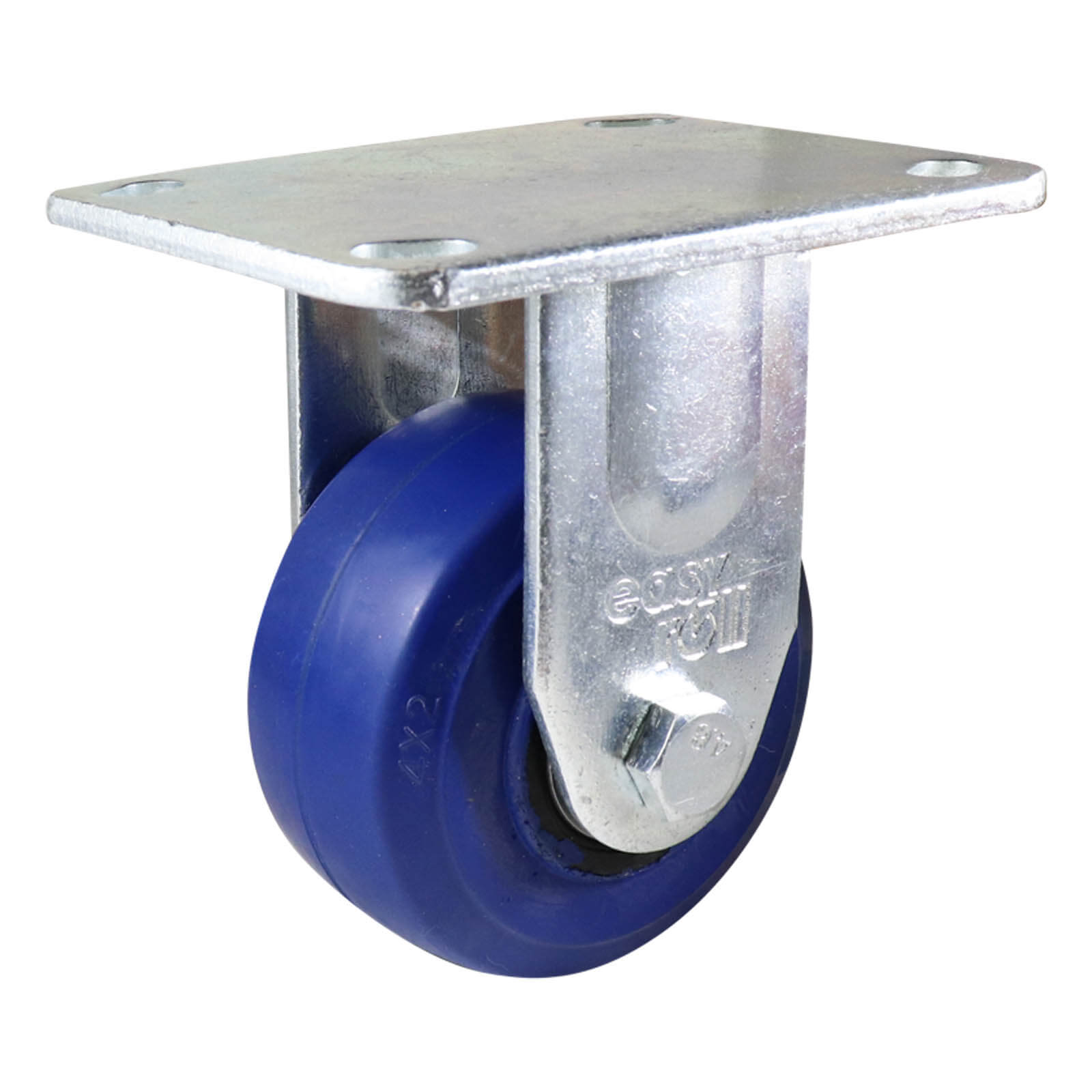

EasyRoll J3 Fixed Plate Castor, Blue Rubber 100 mm | J33AZ83K100

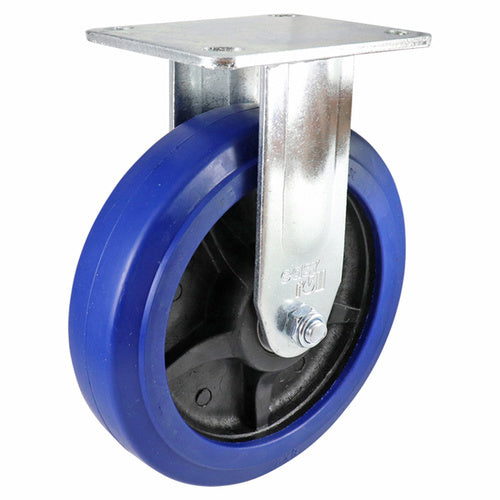

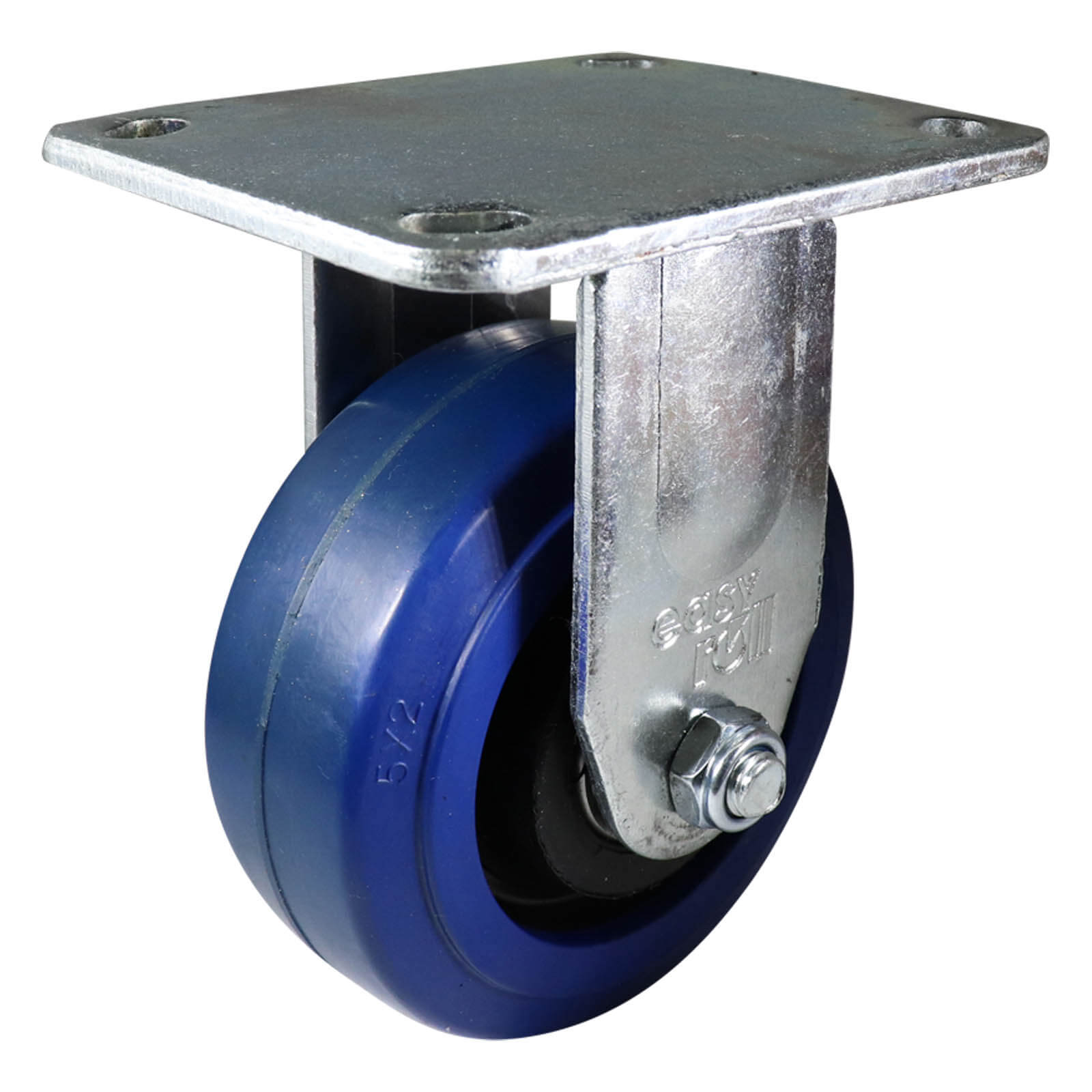

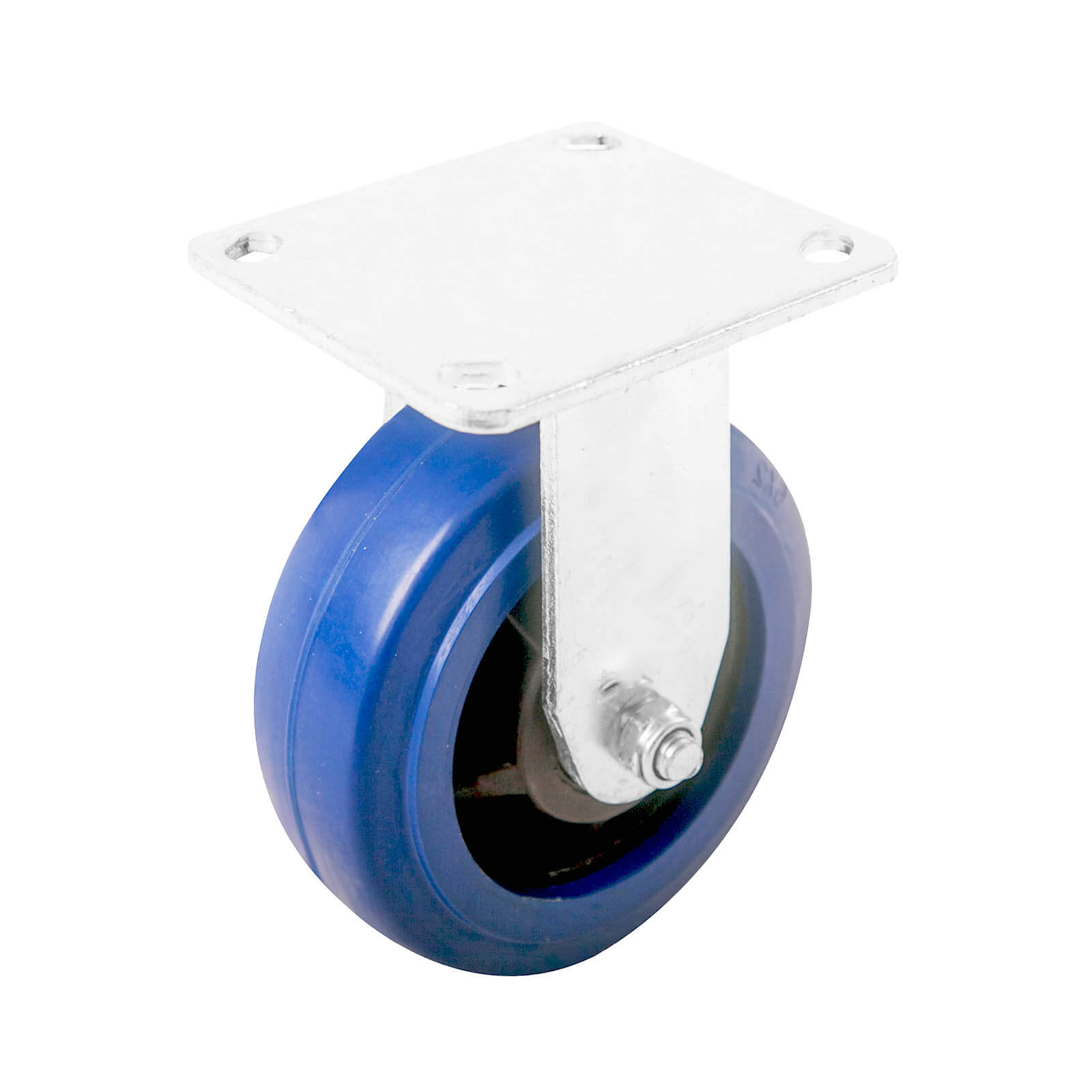

The EasyRoll J3 series fixed plate castor is fitted with a blue rubber wheel and is available in 100, 125, 150 and 200 mm wheel diameters. Load capacity is 200 kg to 500 kg per castor depending on the wheel size. The top plate is 135 x 110 mm with hole centres of 105 x 80 mm.

The J3 series is suited to general and stock picking trolleys; dollies and stillages; and catering and industrial laundry equipment. It has precision wheel bearings.

Where this product is used

• General and stock picking trolleys
• Dollies and stillages
• Catering and industrial laundry equipment

Features

• Blue rubber wheel in 100, 125, 150 and 200 mm
• Load capacity 200 kg to 500 kg per castor
• Heavy duty fabricated construction withstands high impact loads
• Dust sealing rings extend the life of the bearings
• Grease nipple to the headset bearings
• All wheels come with precision bearings
• Robust brake assembly with an adjustable brake

Key specifications

Options and part numbers

Selecting the right option

A swivel castor turns to follow the direction of travel and a fixed castor rolls in a straight line, so many trolleys use fixed castors at one end and swivel castors at the other. EHI rates blue rubber wheels as follows: excellent shock absorbency and floor protection, good load capacity and durability and fair push effort. EHI lists it as the highest shock absorbency and suited to quality flooring and rougher surfaces. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h (manufacturer-stated). The capacity of a trolley is not the sum of its castors: for a four wheel trolley EHI recommends each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries. If you are unsure which castor suits your application, contact AIMS with the load, the floor type and how the equipment is used.
