EasyRoll I6 Series Swivel Stem Castor with Brake - Elastic Rubber Wheel, Blue

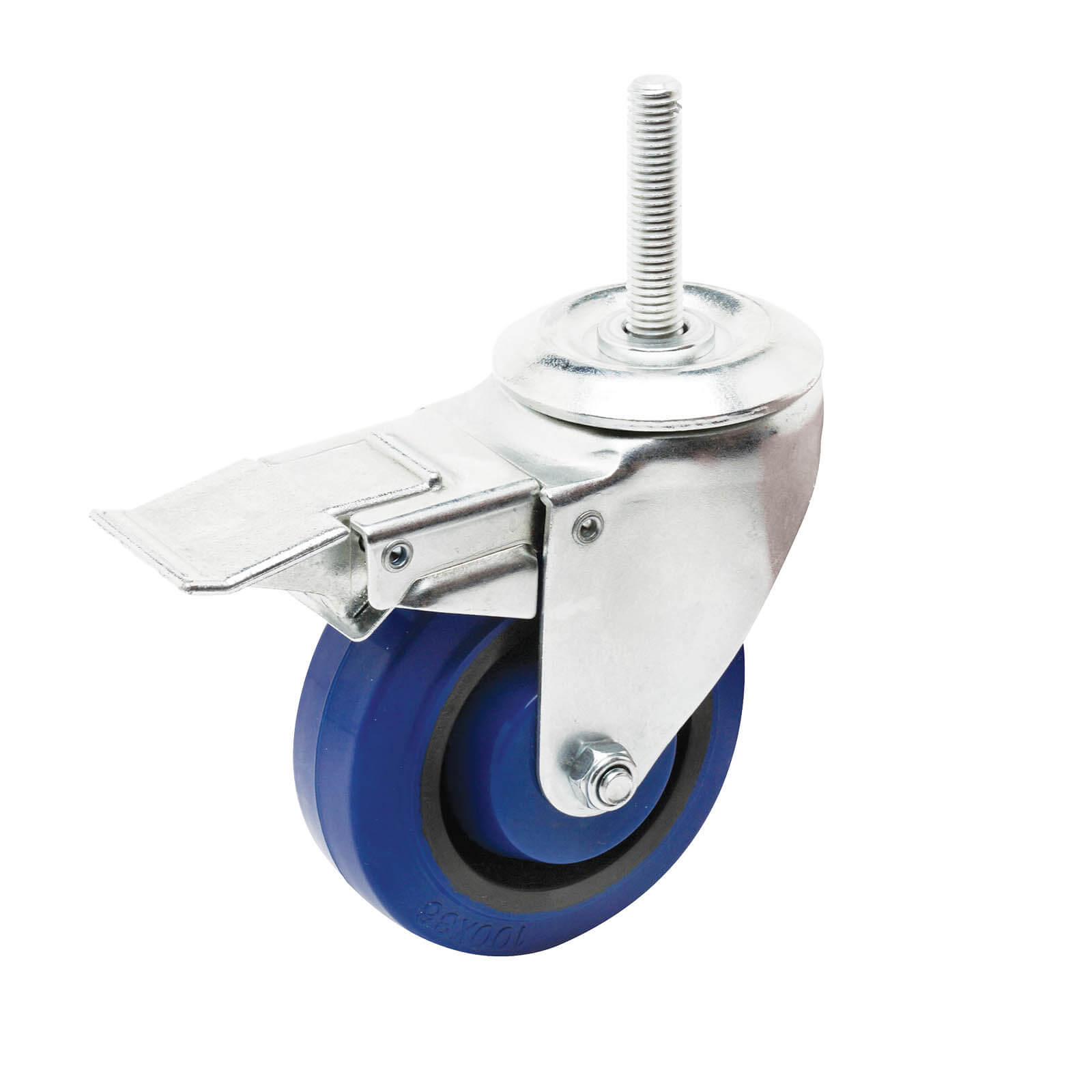

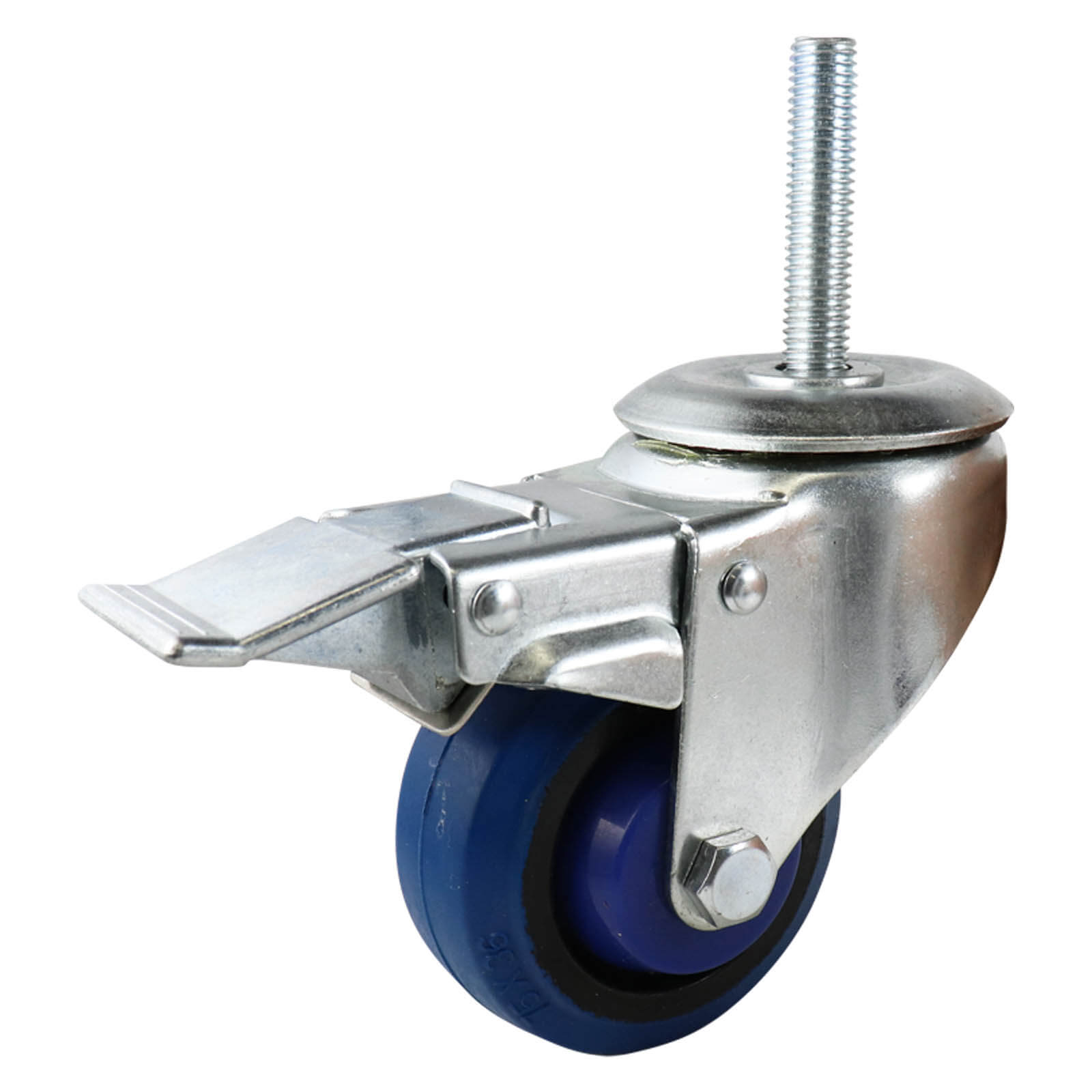

The EasyRoll I6 series swivel threaded stem castor with brake is fitted with a blue elastic rubber wheel and is available in a 75mm wheel diameter. Load capacity is 90kg per castor. It has a threaded stem fitted at the top.

The I6 series is suited to general trolleys, heavy capacity shopfittings and medical equipment. It has double headset bearings and a bright zinc finish.

Where this product is used

• General trolleys
• Heavy capacity shopfittings
• Medical equipment
• Catering equipment
• Pharmaceutical equipment
• Materials handling equipment

Features

• Blue elastic rubber wheel in 75mm
• Load capacity 90kg per castor
• Total lock brake stops both swivel and wheel rotation
• Double headset bearings for strength and improved manoeuvrability
• Headset seals and wheel caps protect and extend the life of the bearings
• Thick steel construction withstands high shock loads
• Non-marking elastic rubber tyres absorb shock loads while reducing friction and operating noise
• Resilient rubber wheels resist flat-spotting
• Bright zinc finish

Key specifications

Choosing the right option

Check the bolt size and the mounting hole or tube in your equipment before you order. A total lock brake stops both the swivel action and the wheel rotation, which is the safest of all brake types. Blue rubber wheels: excellent shock absorbency and floor protection, good load capacity and durability and fair push effort. It is the highest shock absorbency and suited to quality flooring and rougher surfaces. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h. The capacity of a trolley is not the sum of its castors: for a four wheel trolley it is best that each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries.
