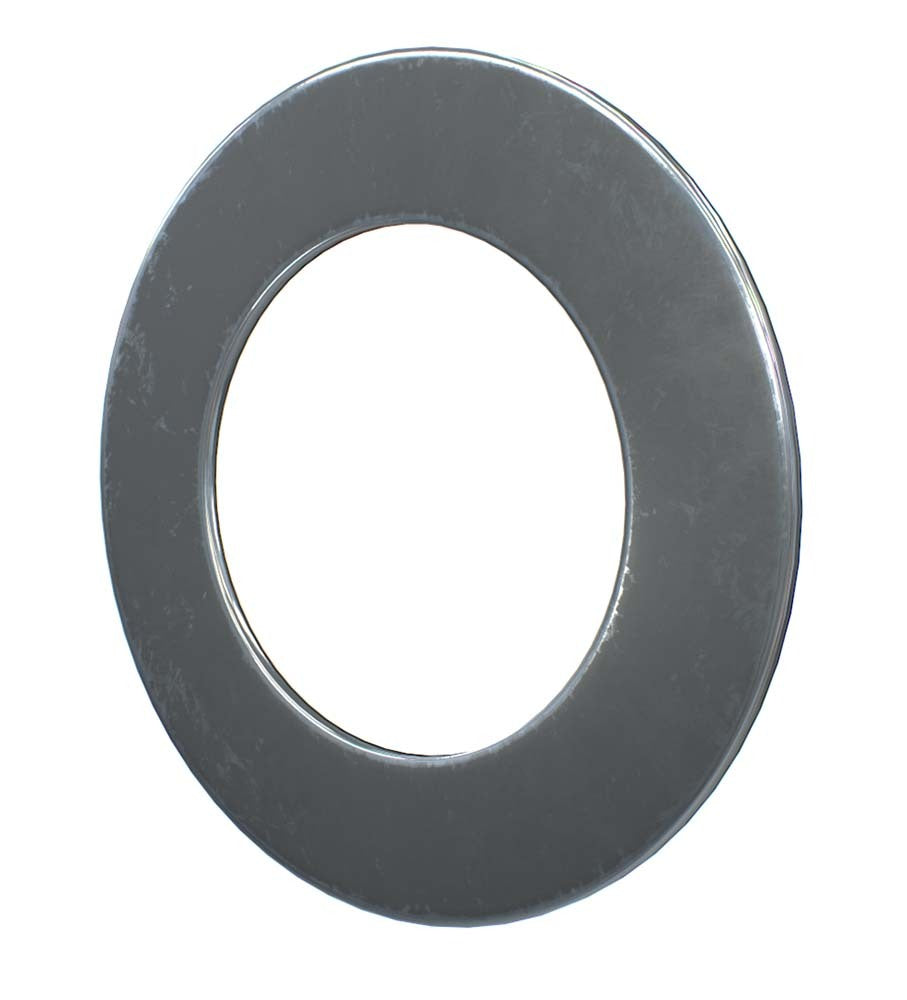

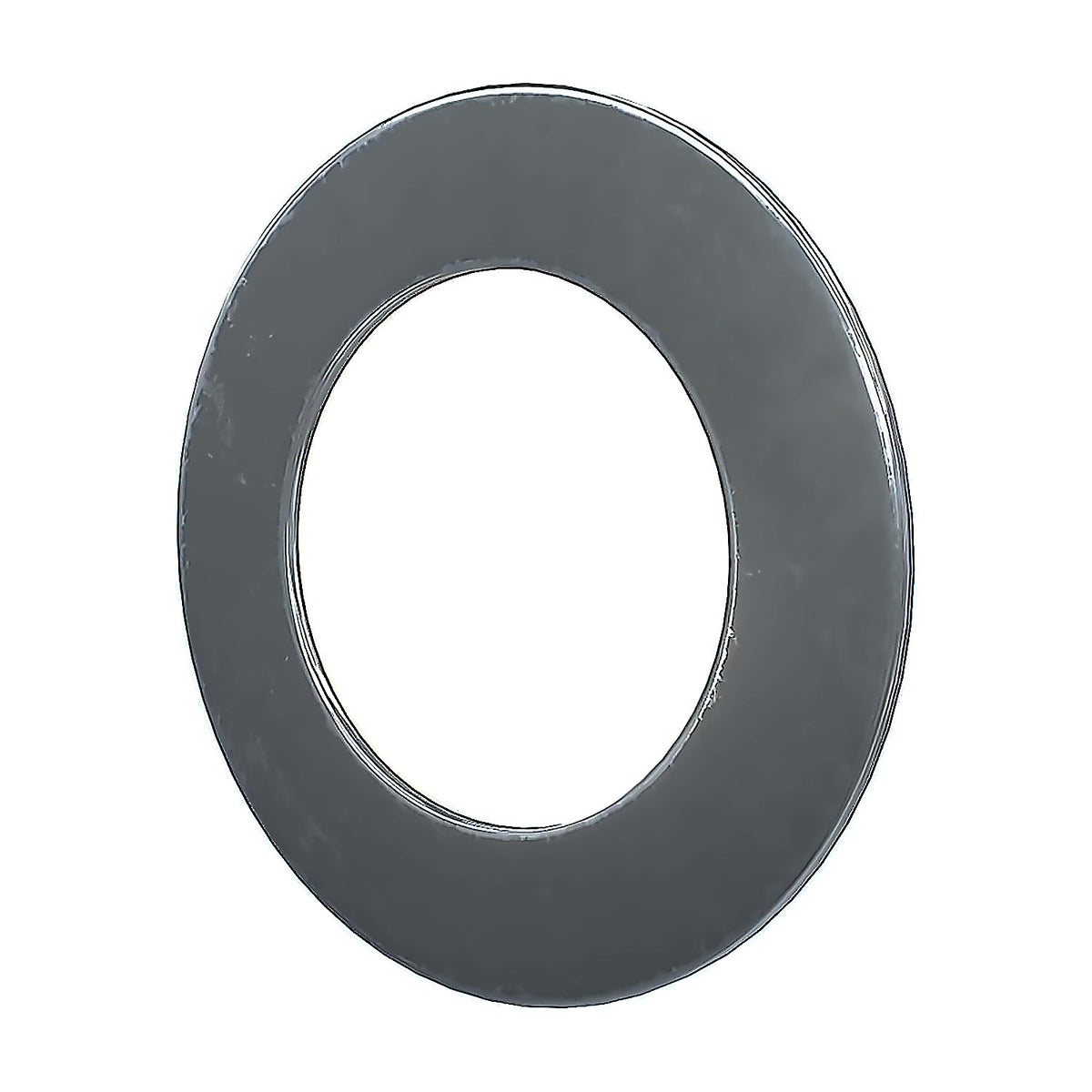

IKO WS1226 Thrust Bearing Inner Ring, 12 x 26 x 2.75 mm

The WS is a thin inner ring for IKO thrust bearings: the raceway ring that sits on the shaft side. It is a ring only, not a complete bearing, with no rollers or cage and no load rating of its own. This page lists 13 WS sizes for shafts from 12 to 80 mm, with outside diameters of 26 to 115 mm and a ring thickness of 2.75 to 8.5 mm.

The WS is used with the NTB thrust needle roller bearing (where an NTB of that size exists) and with the AZK thrust roller bearing of the same size, and an AZ complete bearing is an AZK combined with a WS and a GS. Choose the shaft size and ring thickness from the drop-downs; the Model Details give the exact dimensions and the bearing each size is used with.

Where this product is used

• Shaft-side raceway ring for NTB and AZK thrust bearings
• Machine tools, high-pressure pumps and automotive driving mechanisms
• Compact axial-load positions where a thin ring is needed

Features

• Thin inner ring: 2.75 to 8.5 mm thick on this page
• Outside diameter tolerance class b12 and thickness tolerance class h11; recommended shaft tolerance class h6
• Used with the AZK bearing of the same size, and with the NTB where one of that size exists
• Ring only: no rollers or cage, and no load rating of its own

Key specifications

Available sizes

Mass is a reference value for one ring: the WS and GS rings of a size have the same dimensions and the same mass. "Used with" shows the bearings of the same size; a size shown with an AZK only has no NTB of that size.

Selecting the right option

Choose the shaft diameter and then the ring thickness from the drop-downs. Where two sizes share a shaft diameter, the thickness tells them apart: for example a 30 mm shaft with a 3 mm thickness is WS3047 (47 mm O.D.) and with a 4.25 mm thickness is WS3052 (52 mm O.D.).

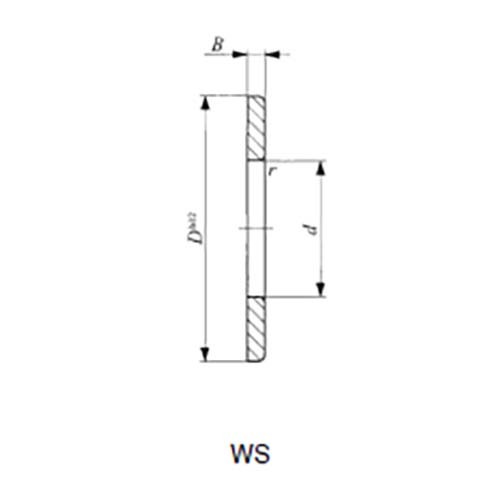

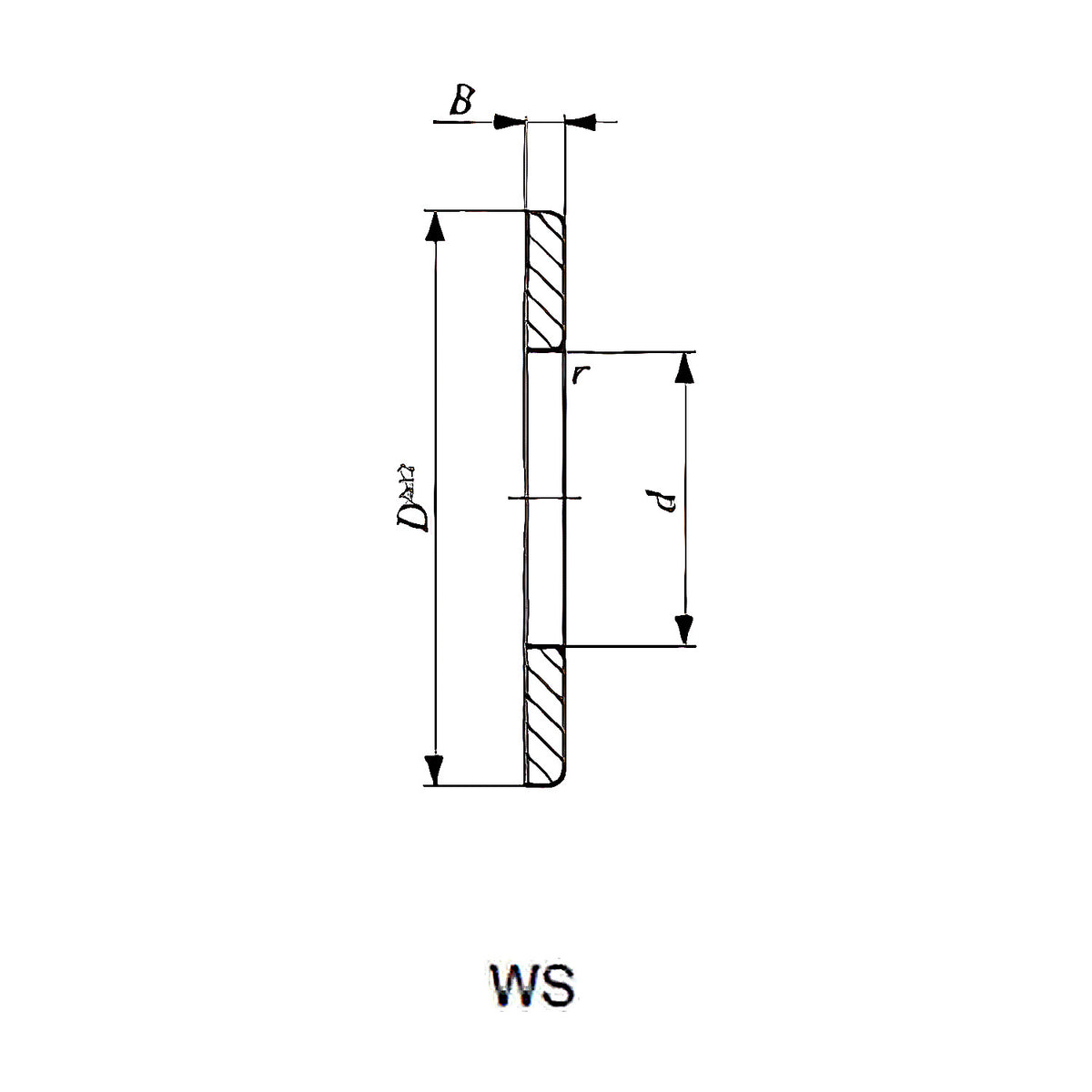

The model number is the bore diameter followed by the outside diameter, so WS3047 has a 30 mm bore and a 47 mm outside diameter.

The WS is a ring only. Use the GS outer ring of the same size with it, together with an NTB or AZK bearing: the Model Details list the bearings each size is used with. A WS size shown with an AZK only has no NTB of that size.

Load ratings and speeds belong to the NTB or AZK bearing, so check them on those pages.

Fitting and use

The recommended shaft tolerance class for the WS is h6. Finish the mounting surface at right angles to the centre axis and keep it sufficiently rigid.

If you are unsure which parts suit your shaft and housing, send AIMS the part numbers or sizes and we will confirm the match.

Related products

Bearings the WS inner ring is used with: NTB thrust needle roller bearings (9 of the 13 WS sizes here have an NTB size of the same size on AIMS) and AZK thrust roller bearings (13 of 13). The housing-side partner is the GS outer ring; the AS thrust washers are the separate flat raceway washers for the NTB.
