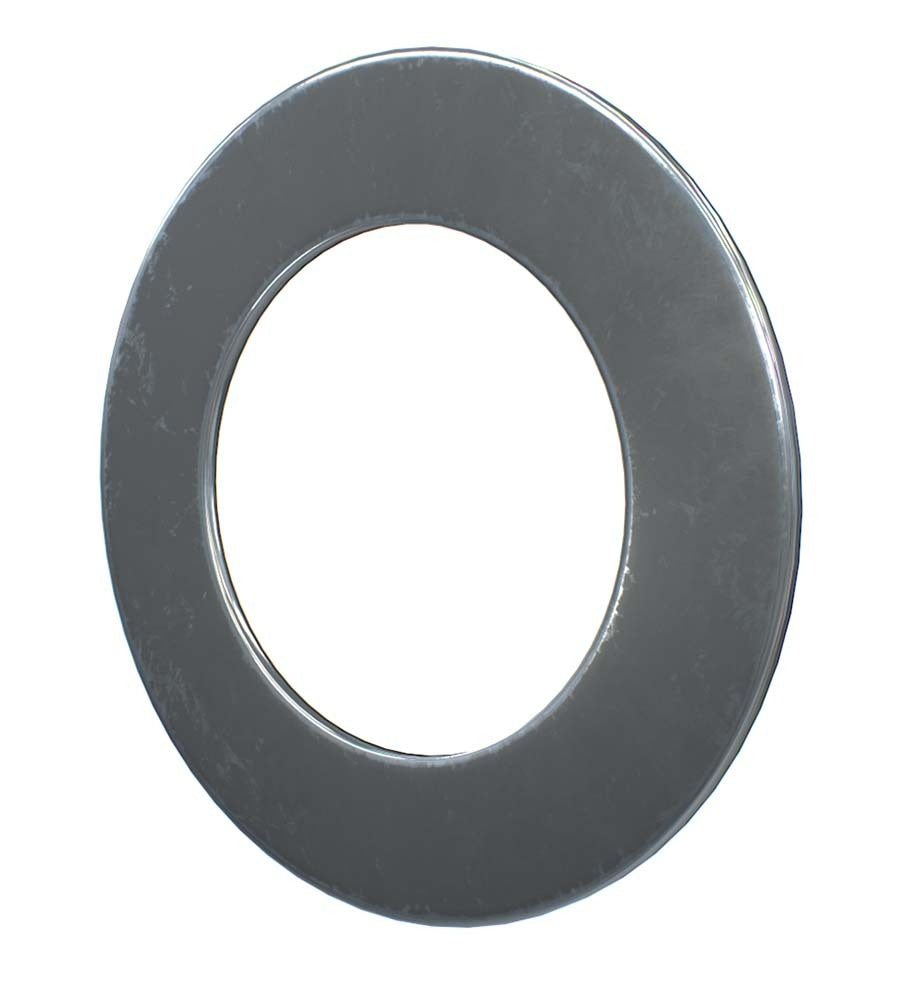

IKO GS1226 Thrust Bearing Outer Ring, 12 x 26 x 2.75 mm
Available
The GS is a thin outer ring for IKO thrust bearings: the raceway ring that sits on the housing side. It is a ring only, not a complete bearing, with no rollers or cage and no load rating of its own. This page lists 27 GS sizes for shafts from 12 to 80 mm, with outside diameters of 26 to 115 mm and a ring thickness of 2.75 to 8.5 mm.
The GS is used with the NTB thrust needle roller bearing (where an NTB of that size exists) and with the AZK thrust roller bearing of the same size, and an AZ complete bearing is an AZK combined with a WS and a GS. Choose the shaft size and ring thickness from the drop-downs; the Model Details give the exact dimensions and the bearing each size is used with.
Where this product is used
- Housing-side raceway ring for NTB and AZK thrust bearings
- Machine tools, high-pressure pumps and automotive driving mechanisms
- Compact axial-load positions where a thin ring is needed
Features
- Thin outer ring: 2.75 to 8.5 mm thick on this page
- Bore tolerance class B12 and thickness tolerance class h11; recommended housing bore tolerance class H7
- Used with the AZK bearing of the same size, and with the NTB where one of that size exists
- Ring only: no rollers or cage, and no load rating of its own
Key specifications

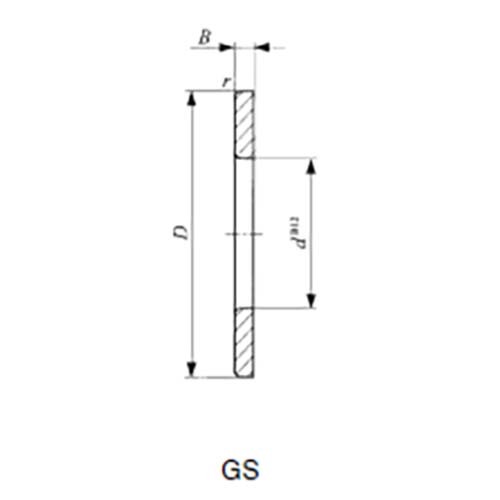

| Specification | Detail |
|---|---|
| Type | Thrust bearing outer ring (housing-side raceway ring; not a complete bearing) |
| Models | GS1226 to GS80115 (27 sizes) |
| Bore diameter d (shaft diameter) | 12 to 80 mm |
| Outside diameter D | 26 to 115 mm |
| Thickness B | 2.75 to 8.5 mm |
| Tolerances | Bore class B12; thickness class h11 |
| Mass (reference, one ring) | 8.9 to 345 g |
| Recommended housing bore tolerance class | H7 |
| Brand | IKO (Nippon Thompson Co., Ltd., Japan) |
Available sizes
Show all 27 sizes with dimensions and mass
| Model | Bore d (mm) | O.D. D (mm) | Thickness B (mm) | Chamfer r min (mm) | Mass (g) | Used with |
|---|---|---|---|---|---|---|
| GS1226 | 12 | 26 | 2.75 | 0.3 | 8.9 | NTB1226, AZK12263.5 |
| GS1528 | 15 | 28 | 2.75 | 0.3 | 9.3 | NTB1528, AZK15283.5 |
| GS1730 | 17 | 30 | 2.75 | 0.3 | 10.2 | NTB1730, AZK17303.5 |
| GS2035 | 20 | 35 | 2.75 | 0.3 | 13.8 | NTB2035, AZK20354.5 |
| GS2542 | 25 | 42 | 3 | 0.6 | 21 | NTB2542, AZK25425 |
| GS3047 | 30 | 47 | 3 | 0.6 | 24 | NTB3047, AZK30475 |
| GS3052 | 30 | 52 | 4.25 | 0.6 | 45 | AZK30527.5 |
| GS3552 | 35 | 52 | 3.5 | 0.6 | 31.5 | NTB3552, AZK35525 |
| GS3562 | 35 | 62 | 5.25 | 1 | 81 | AZK35627.5 |
| GS4060 | 40 | 60 | 3.5 | 0.6 | 42.5 | |
| GS4068 | 40 | 68 | 5 | 1 | 89 | AZK40689 |
| GS4565 | 45 | 65 | 4 | 0.6 | 53.5 | NTB4565, AZK45656 |
| GS4573 | 45 | 73 | 5.5 | 1 | 108 | AZK45739 |
| GS5070 | 50 | 70 | 4 | 0.6 | 58.5 | NTB5070, AZK50706 |
| GS5078 | 50 | 78 | 5.5 | 1 | 118 | AZK507811 |
| GS5578 | 55 | 78 | 5 | 0.6 | 93 | NTB5578, AZK55786 |
| GS5590 | 55 | 90 | 7 | 1 | 225 | AZK559011 |
| GS6085 | 60 | 85 | 4.75 | 1 | 105 | NTB6085, AZK60857.5 |
| GS6095 | 60 | 95 | 7.5 | 1 | 240 | AZK609511 |
| GS6590 | 65 | 90 | 5.25 | 1 | 124 | NTB6590, AZK65907.5 |
| GS65100 | 65 | 100 | 8 | 1 | 275 | AZK6510011 |
| GS7095 | 70 | 95 | 5.25 | 1 | 132 | NTB7095, AZK70957.5 |
| GS70105 | 70 | 105 | 8 | 1 | 290 | AZK7010511 |
| GS75100 | 75 | 100 | 5.75 | 1 | 153 | NTB75100, AZK751007.5 |
| GS75110 | 75 | 110 | 8 | 1 | 310 | AZK7511011 |
| GS80105 | 80 | 105 | 5.75 | 1 | 162 | NTB80105, AZK801057.5 |
| GS80115 | 80 | 115 | 8.5 | 1 | 345 | AZK8011511 |
Mass is a reference value for one ring: the WS and GS rings of a size have the same dimensions and the same mass. "Used with" shows the bearings of the same size; a size shown with an AZK only has no NTB of that size.
Selecting the right option
Choose the shaft diameter and then the ring thickness from the drop-downs. Where two sizes share a shaft diameter, the thickness tells them apart: for example a 30 mm shaft with a 3 mm thickness is GS3047 (47 mm O.D.) and with a 4.25 mm thickness is GS3052 (52 mm O.D.).
The model number is the bore diameter followed by the outside diameter, so GS3047 has a 30 mm bore and a 47 mm outside diameter.
The GS is a ring only. Use the WS inner ring of the same size with it, together with an NTB or AZK bearing: the Model Details list the bearings each size is used with. A GS size shown with an AZK only has no NTB of that size.
Load ratings and speeds belong to the NTB or AZK bearing, so check them on those pages.
Fitting and use
The recommended housing bore tolerance class for the GS is H7. Finish the mounting surface at right angles to the centre axis and keep it sufficiently rigid.
Related products
Bearings the GS outer ring is used with: NTB thrust needle roller bearingsAZK thrust roller bearings (14 of 27). The shaft-side partner is the WS inner ring; the AS thrust washers are the separate flat raceway washers for the NTB.
