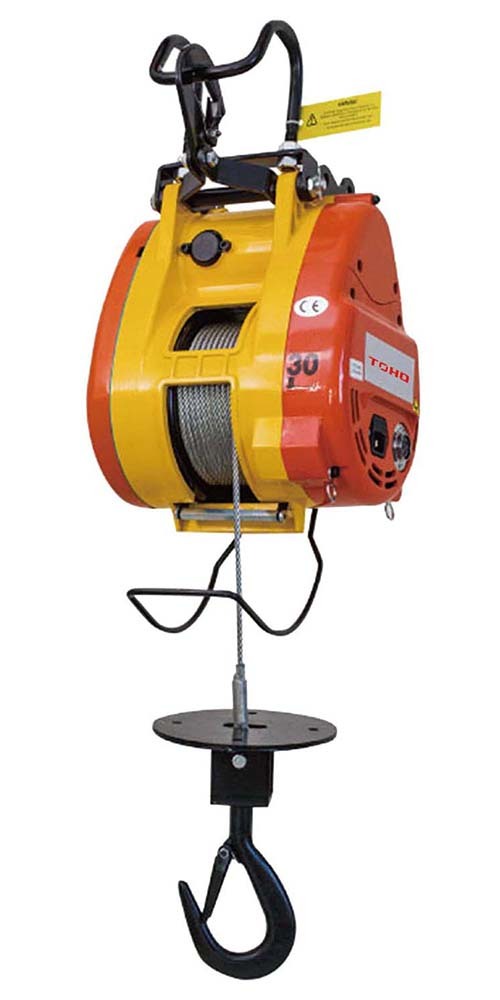

Toho TBH250 Compact Wire Rope (Builders) Hoist - 250kg Capacity

The Toho compact wire rope (builders) hoist is designed to hang from scaffold tubing and lift materials to and from different levels on a building site. It is available in 250, 360 and 500 kg rated capacities, each with a 30 m lift, an auto stop feature and a scaffolding safety latch, and runs from a 240V 3 pin plug supply.

Where this product is used

• Lifting building materials between levels from scaffolding on construction and renovation sites.
• Raising and lowering loads on multi level sites where carrying them by hand or on stairs is slow.

Features

• Designed to hang from scaffold tubing
• Rated capacities of 250, 360 and 500 kg with a 30 m lift
• Auto stop feature
• Heavy duty construction with a scaffolding safety latch
• 240V 3 pin plug power supply (220 to 240 V)
• 7 m corded pendant, optional wireless remote control
• IP44 hoist, IP65 corded control, IP55 optional remote control

Key specifications

All models: 30 m lift, 220 to 240 V power supply, 25 percent duty cycle (published as 0.25), insulation class F.

Selecting the right option

Choose the rated capacity for the heaviest load you will hoist. The 250 kg model lifts at 19 m/min, and the 360 and 500 kg models at 13 m/min. The optional wireless remote must match the hoist: see the Toho remote pendant. Lifting equipment must be used within its marked working load limit (WLL), inspected before each use, and selected and used in line with your site lifting procedure and the relevant Australian Standards. If you are unsure what suits your lift, contact AIMS or a qualified rigger before ordering.

Related products

For a factory or workshop lift see the Toho single phase electric chain hoists or the Toho Pro Mini electric hoist.
