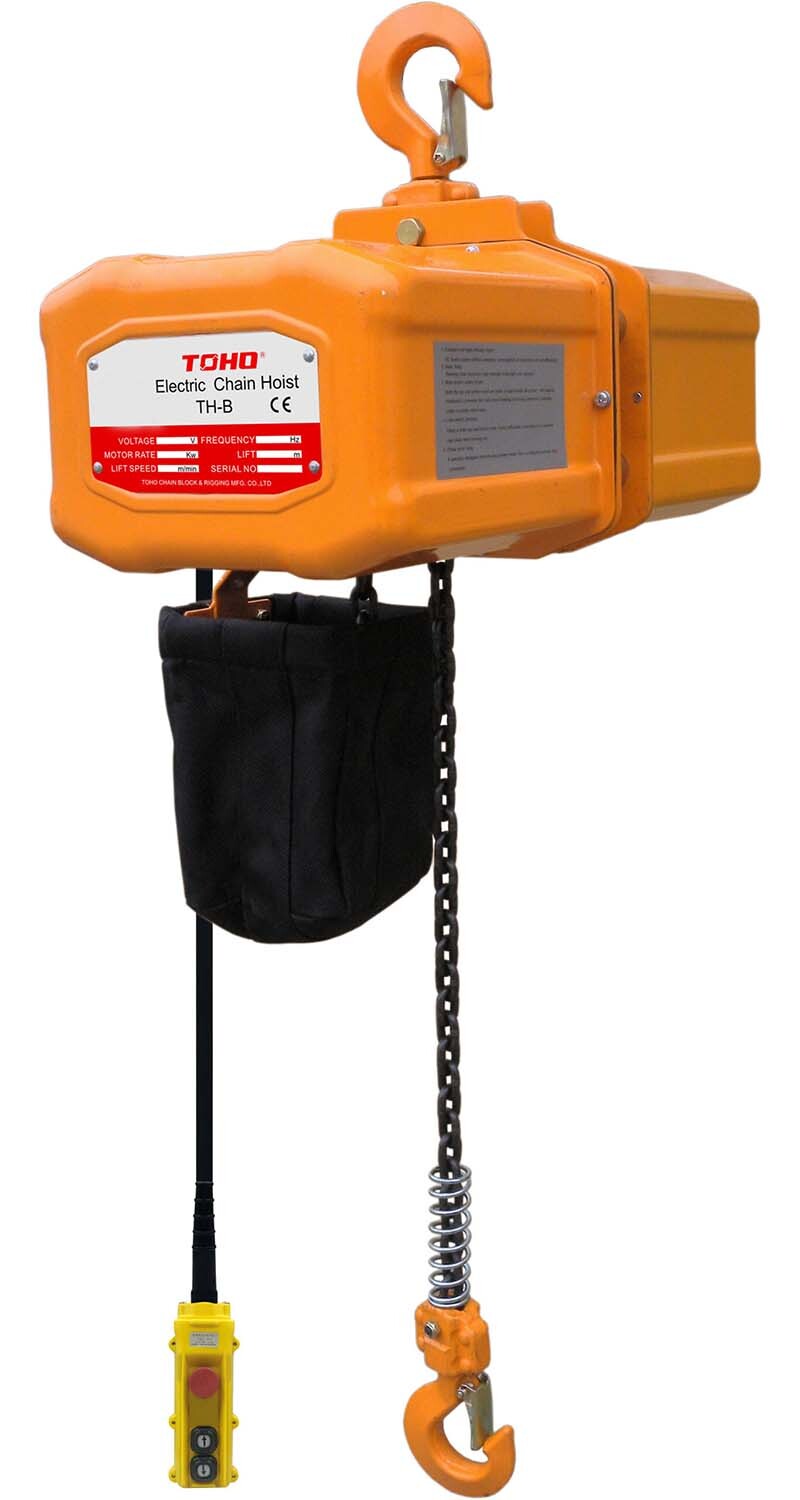

Toho single phase electric chain hoist TECH0103

The Toho single phase electric chain hoist runs on a standard 240V supply and is built in 1 tonne (single fall) and 2 tonne (twin fall) capacities, each with a 3 m or 6 m standard lift. It has Grade 80, 7.1mm alloy steel load chain, an electronic load limiter, thermal overload protection and limit switches at the top and bottom of travel.

The range complies with AS/NZS 1418.2. The hoists are rated to working class M4 and are not designed for continuous all-day duty or for use in flammable, explosive or corrosive environments.

Where this product is used

• Repetitive lifting on production lines and in factories where a 240V supply is available
• Engine, plant and equipment lifting in workshops and maintenance areas
• Loading, unloading and stock handling in warehouses and stores
• As part of an overhead crane or gantry system

Features

• Load-limited design helps prevent overloading and chain failure
• Thermal overload protection guards the motor against overheating
• Emergency stop button on the pendant
• Grade 80, 7.1mm alloy steel load chain
• High-tensile alloy steel top and bottom hooks with safety latches
• Limit switches top and bottom prevent chain run-out
• DC electromagnetic brake (asbestos-free) holds the load when stopped
• Friction clutch protects the motor from overload and chain stretch
• Lightweight, compact pressed-steel body with high-efficiency motor
• Runs on standard 240V single-phase power

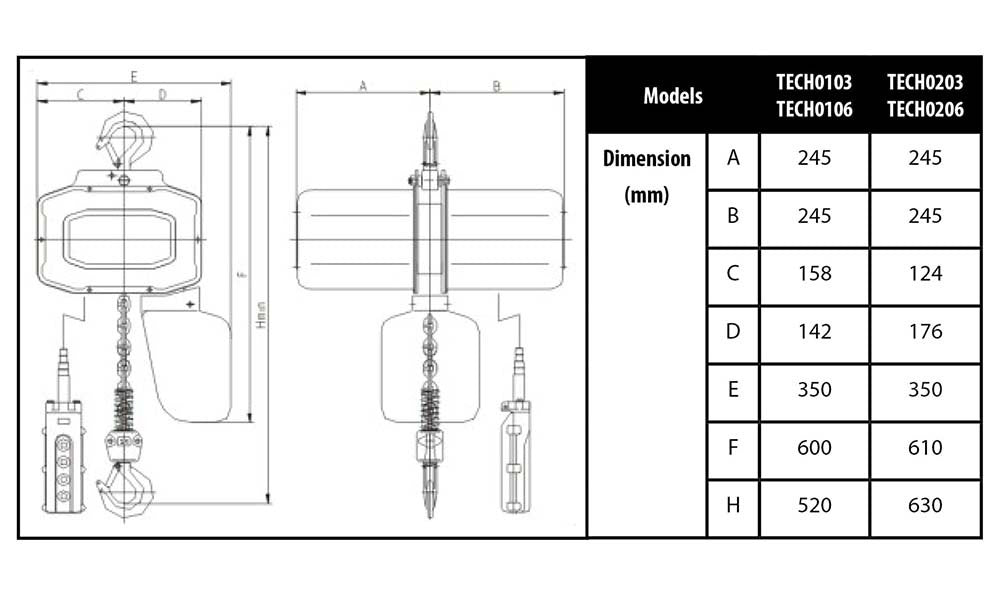

Key specifications

Choosing the right option

The 1 tonne models lift at 6 m/min on a single fall of chain and the 2 tonne models at 3 m/min on a twin fall. Lifting equipment must be used within its marked working load limit (WLL), inspected before each use, and selected and used in line with your site lifting procedure and the relevant Australian Standards.

For a hoist with a built-in electric trolley see the: Toho TECH0206-ET single phase hoist with electric trolley.

For three phase supply and two speed lifting see the: Toho three phase two speed electric chain hoists.
