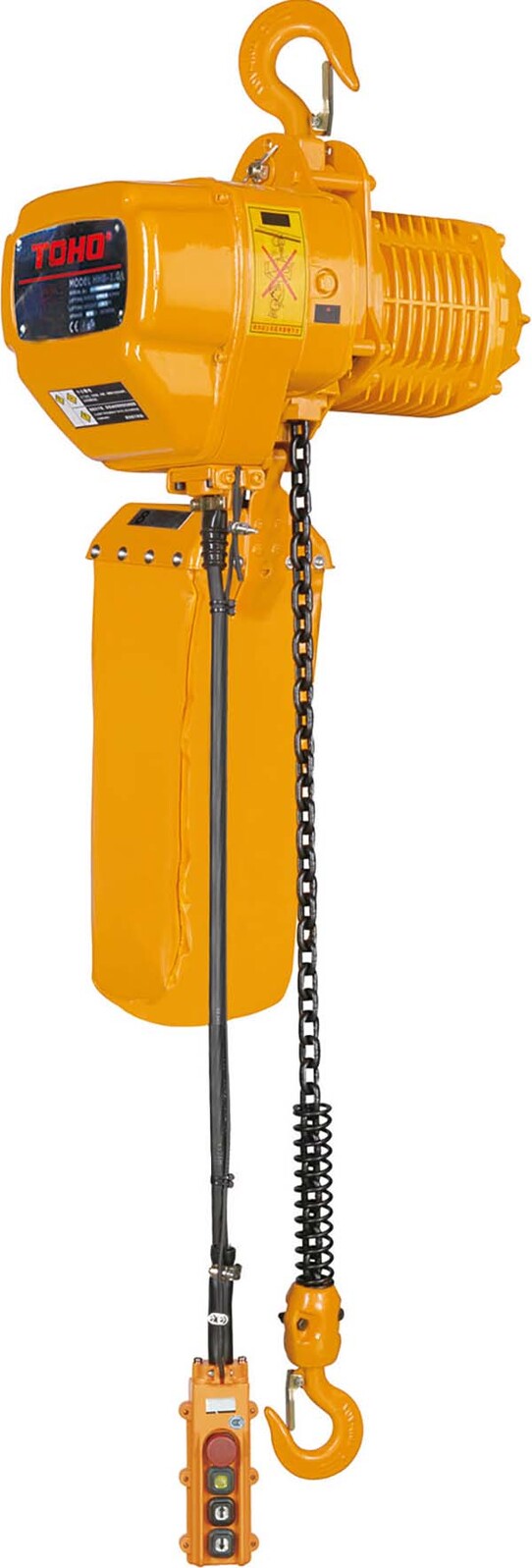

Toho TECH-3PH-2SP-0103 1T 3m Three Phase 2 Speed Electric Chain Hoist

The Toho three phase two speed electric chain hoist is built in 1, 3 and 5 tonne capacities with a standard lift of 3 m (the 1 tonne is also available with a 6 m lift). It runs from a 415V, 50Hz three phase supply and has a dual speed motor for a fast travel speed and a slow speed for precise load positioning.

The manufacturer states that the hoists comply with AS/NZS 1418.2. They are load limited, have a thermal prevention device, Grade 80 alloy steel load chain and limit switches at the top and bottom of travel to prevent chain run-out. Lead time is 6 to 8 weeks from receipt of the order; contact AIMS for further assistance.

Where this product is used

• Production environments that need precise load positioning as well as fast lifting.
• Heavier workshop and maintenance lifting on a 415V three phase supply.

Features

• Capacities of 1, 3 and 5 tonne, with 3 m standard lift (6 m also available on the 1 tonne)
• Dual speed motor on a 415V, 50Hz three phase supply
• Load limited, with a thermal prevention device
• Grade 80 alloy steel load chain: 7.1 mm on the 1 tonne models, 11.2 mm on the 3 and 5 tonne models
• High tensile alloy steel top and bottom hooks
• Limit switches at the top and bottom of travel to prevent chain run-out
• Lightweight, compact design with a high efficiency motor and pressed steel body
• Can be re-chained to a required length (limits apply)
• IP54 hoist and IP65 control
• Manufacturer-stated compliance: AS/NZS 1418.2
• Lead time 6 to 8 weeks from receipt of the order

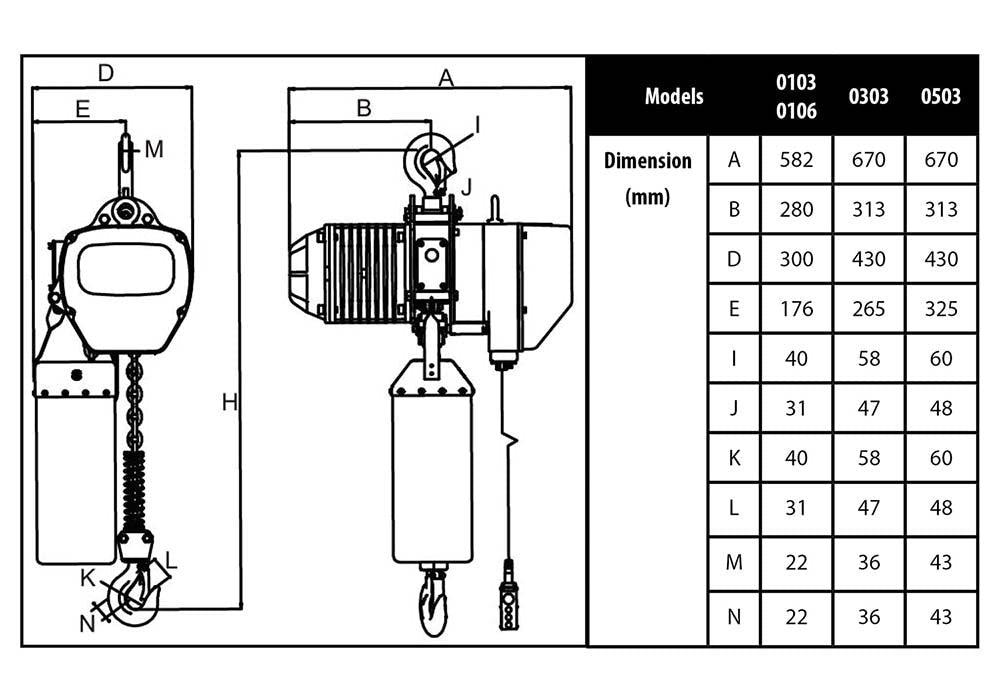

Key specifications

All models: 415V, 50Hz three phase, dual speed. Lifting speeds are as published by the manufacturer for each model.

Selecting the right option

Choose the capacity first, then the standard lift that covers your lift height. Because the lead time is 6 to 8 weeks, confirm the model with AIMS early if the job has a deadline. Lifting equipment must be used within its marked working load limit (WLL), inspected before each use, and selected and used in line with your site lifting procedure and the relevant Australian Standards. If you are unsure what suits your lift, contact AIMS or a qualified rigger before ordering.

Related products

For a 240V supply see the Toho single phase electric chain hoists. For light lifting up to 500 kg see the Toho Pro Mini electric hoist.
