Toho Pro Mini Electric Hoist 500kg Capacity 240V
Available

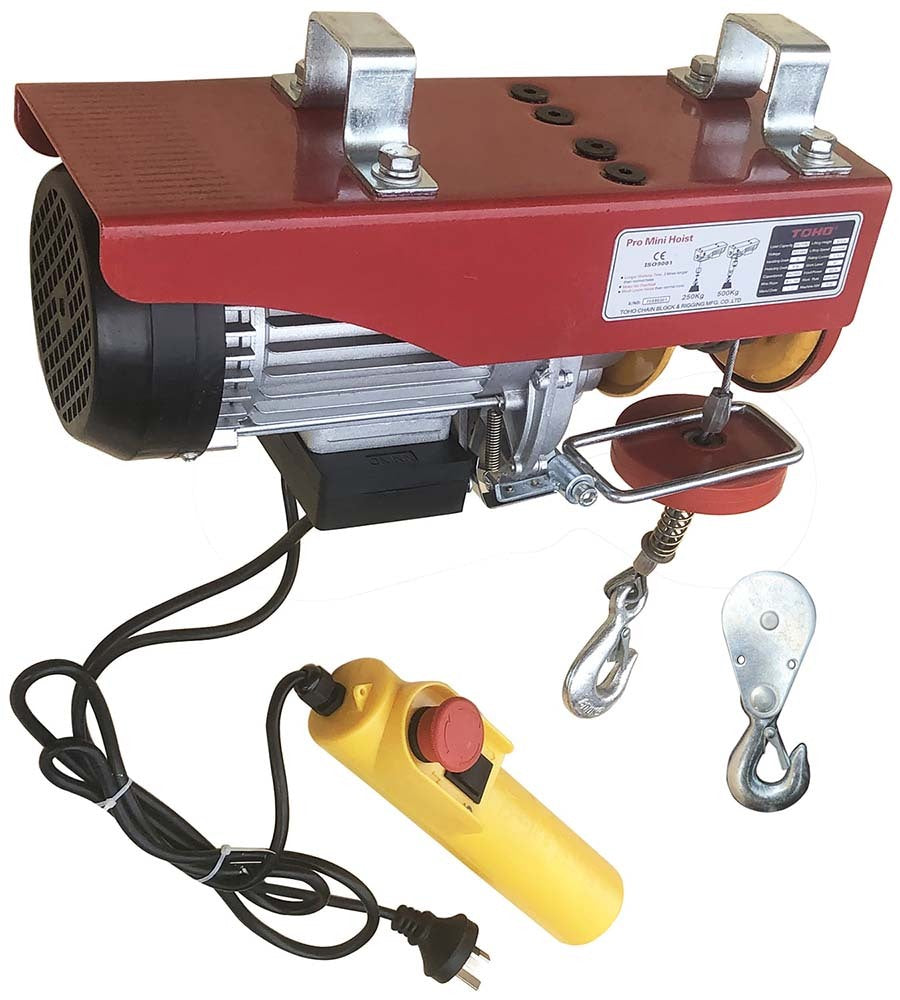

The Toho Pro Mini is a compact 240V electric hoist rated to 250kg on a single rope and 500kg on a double rope. It lifts 12 m on a single rope or 6 m on a double rope, and is operated from a 1.5 m pendant with up/down controls and an emergency stop button.
It complies with AS 1418.2.
Where this product is used
- Overhead lifting in workshops, service bays and storerooms where a full size electric chain hoist is more than the job needs
- Repeat lifting of loads up to 500kg on a double rope, or up to 250kg to a greater height on a single rope
Features
- Rated 250kg on a single rope and 500kg on a double rope
- Lifting height 12 m on a single rope, 6 m on a double rope
- Lifting speed 10 m/min on a single line, 5 m/min on a double line
- 900W motor, continuously rated
- Automatic brake and cut off, plus an anti-heat device on the motor
- Up/down pendant with emergency stop button, 1.5 m pendant length
- IP45 rated hoist and control
Key specifications
| Specification | Detail |
|---|---|
| Brand | Toho |
| Model | TPMEH500 |
| Rated capacity | 250kg single rope, 500kg double rope |
| Lifting height | 12 m single rope, 6 m double rope |
| Lifting speed | 10 m/min single line, 5 m/min double line |
| Motor | 900W, 240V |
| IP rating | Hoist IP45, control IP45 |
| Pendant length | 1.5 m |
| Standard | AS 1418.2 |
Choosing the right option
Pick the rope arrangement for the load: up to 250kg on a single rope for the faster speed and the 12 m lift, or up to 500kg on a double rope at half the speed and 6 m of lift. Lifting equipment must be used within its marked working load limit (WLL), inspected before each use, and selected and used in line with your site lifting procedure and the relevant Australian Standards.
For heavier loads see the: Toho single phase electric chain hoists, Toho three phase two speed electric chain hoists.
For lifting materials up a building site see the: Toho compact wire rope (builders) hoists.
