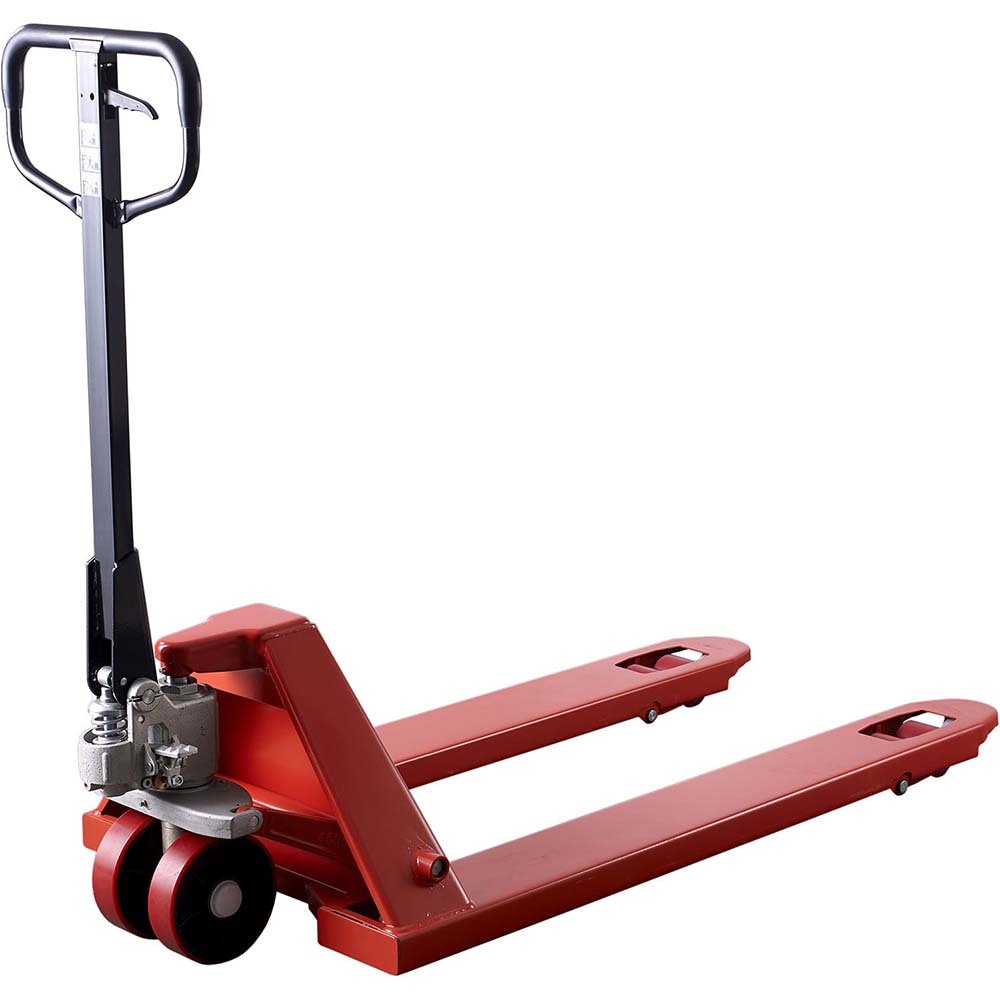

Toho Heavy Duty Pallet Truck - 3.0T Capacity 685 x 1200mm

The Toho heavy duty pallet truck is a manual hand pallet truck rated to 3,000 kg (3.0T), with 1200 mm long forks and an overall fork width of 685 mm. It is built from 4 mm alloy steel plate with a reinforcing rib design under the support frame, and a one piece cast steel pump that is leak proof and designed to keep maintenance low.

Where this product is used

• Moving palletised stock in warehouses, loading docks and distribution areas.
• Moving pallets between storage, staging and dispatch without a powered forklift.

Features

• 3,000 kg (3.0T) capacity
• Forks 1200 mm long and 685 mm overall width, fork size 160 x 60 mm
• Lowered height 80 mm, maximum lift height 190 mm
• 4 mm alloy steel plate construction (manufacturer-stated to be six times the strength of standard mild steel)
• Reinforcing rib design under the support frame
• One piece cast steel pump, leak proof, to minimise maintenance
• Grease nipples for lubricating the bearings
• Polyurethane wheels for smooth and quiet operation: tandem load wheels 80 x 70 mm, dual steering wheels 180 x 50 mm with cast iron hubs
• 3 position hand control (raise, neutral, lower) plus a foot release lever for lowering
• 30 mm rubber wrapped hand grip
• Tight 180 degree turning circle

Key specifications

Selecting the right option

Check that the 685 mm overall fork width and 1200 mm fork length suit the pallets you handle, and that the load, including the pallet, is within 3,000 kg. The truck is designed for use on flat, hard surfaces such as concrete warehouse floors, and the loads should be centred on the forks. Use it in line with your site manual handling procedures.
