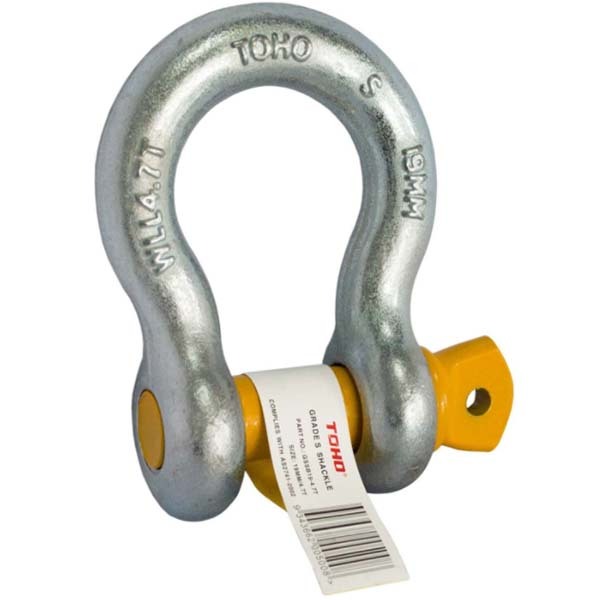

Toho Yellow Screw Pin Bow Shackle Galvanised Grade S 6mm 0.5Tonne
Available
Toho yellow screw pin bow shackles are galvanised Grade S shackles with a yellow painted pin, in 14 sizes from 0.5 t to 25 t working load limit (WLL). They give a simple, effective connection between slings, chains and wire ropes.
The manufacturer states that they meet the requirements of AS 2741. Check the WLL for the size you need in the table, and use the shackle in line with the WLL and your site lifting procedure.
Where this product is used
- Multi-leg rigging and slinging, where the wider bow body takes more than one sling leg.
- Marine, agricultural, towing and general industrial applications.
Features
- Galvanised finish with a yellow painted pin
- Screw pin bow shackle in 14 sizes, 0.5 to 25 t WLL
- High strength to size ratio
- Connects slings, chains and wire ropes
- Manufacturer-stated compliance: AS 2741
Key specifications

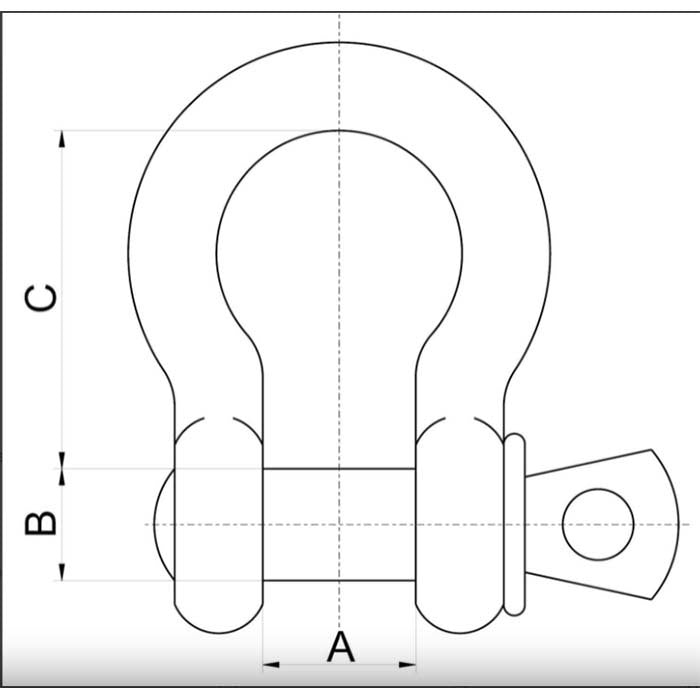

| Model | WLL | Body diameter | Throat opening (A) mm | Pin diameter (B) mm | Throat depth (C) mm |
|---|---|---|---|---|---|
| GSSB06-0.5T | 0.5 t | 6 mm | 12 | 8 | 25 |
| GSSB08-0.75T | 0.75 t | 8 mm | 13 | 10 | 27 |
| GSSB10-1.0T | 1 t | 10 mm | 17 | 11 | 33 |
| GSSB11-1.5T | 1.5 t | 11 mm | 18 | 13 | 38 |
| GSSB13-2.0T | 2 t | 13 mm | 21 | 16 | 42 |
| GSSB16-3.2T | 3.2 t | 16 mm | 27 | 19 | 52 |
| GSSB19-4.7T | 4.7 t | 19 mm | 32 | 22 | 61 |
| GSSB22-6.5T | 6.5 t | 22 mm | 37 | 25 | 73 |
| GSSB25-8.5T | 8.5 t | 25 mm | 43 | 29 | 82 |
| GSSB29-9.5T | 9.5 t | 29 mm | 46 | 32 | 92 |
| GSSB32-12T | 12 t | 32 mm | 52 | 35 | 101 |
| GSSB35-13T | 13 t | 35 mm | 57 | 38 | 113 |
| GSSB38-17T | 17 t | 38 mm | 60 | 41 | 123 |
| GSSB44-25T | 25 t | 44 mm | 73 | 51 | 147 |
Selecting the right option
Choose the shackle by WLL first, then check the body and pin size suit the sling, chain or rope you are connecting. Bow shackles suit multi-leg rigging; dee shackles suit in-line connections. See the Toho dee shackle for the other style. Lifting equipment must be used within its marked working load limit (WLL), inspected before each use, and selected and used in line with your site lifting procedure and the relevant Australian Standards. If you are unsure what suits your lift, contact AIMS or a qualified rigger before ordering.
Related products
For slinging see the Toho stainless steel chain block, and for hoisting see the Toho aluminium chain block.
