Trax KPT-NG65A-DR to KPT-NG150A-DR barrel grinders
Available
Trax offers roll throttle barrel grinders in four sizes: KPT-NG65A-DR (2.5"), KPT-NG75A-DR (3"), KPT-NG125A-DR (5") and KPT-NG150A-DR (6"), all with a 3/8" - 16 THD spindle.
Where this product is used
- Jobs that call for a pneumatic grinder
Features
- Type: Air barrel grinder, roll throttle
- Spindle size: 3/8" - 16 THD
- Air pressure: 90 psi
Key specifications
| Specification | Detail |
|---|---|
| Brand | Trax |
| Type | Air barrel grinder, roll throttle |
| Spindle size | 3/8" - 16 THD |
| Air pressure | 90 psi |
Choosing the right option
Free speed, disc capacity, air consumption and air inlet for the DR models.
Choose by size: KPT-NG65A-DR (2.5", 16000 RPM), KPT-NG75A-DR (3", 15000 RPM), KPT-NG125A-DR (5", 7200 RPM) or KPT-NG150A-DR (6", 6000 RPM). The two larger sizes have a 1/2" air inlet.
Also from Trax: Trax Safety Lever Barrel Grinder, Trax Safety Lever Barrel Grinder with Governor.
| Part number | Size | Disc capacity | Free speed | Air consumption | Air inlet |
|---|---|---|---|---|---|
| KPT-NG65A-DR | 2.5" | 65 x 13 x 9.5mm | 16000 RPM | 8.34 l/s | 3/8" |

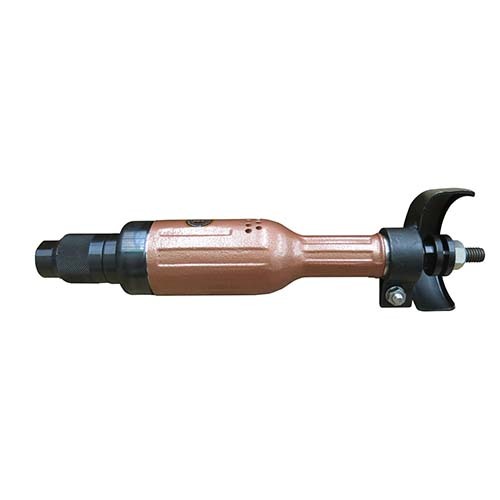

| KPT-NG75A-DR | 3" | 75 x 13 x 9.5mm | 15000 RPM | 10.01 l/s | 3/8" |
| KPT-NG125A-DR | 5" | 125 x 19 x 12.7mm | 7200 RPM | 20.85 l/s | 1/2" |
| KPT-NG150A-DR | 6" | 150 x 25 x 15.9mm | 6000 RPM | 20.85 l/s | 1/2" |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Trax Roll Throttle Barrel Grinder: 2.5
SKU: A0137465 | Model: KPT-NG65A-DR
Trax KPT-NG65A-DR roll throttle barrel grinder, size 2.5", disc capacity 65 x 13 x 9.5mm, 16000 RPM, 3/8" air inlet.
