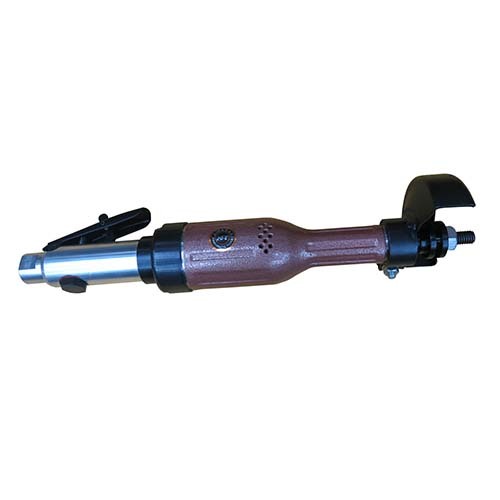

Trax KPT-NG75A-DS to KPT-NG150A-DS barrel grinders
Available
Trax offers safety lever barrel grinders in three sizes: KPT-NG75A-DS (3"), KPT-NG125A-DS (5") and KPT-NG150A-DS (6"), all with a 3/8" - 16 THD spindle.
The safety lever versions are the DS models. The roll throttle versions are the DR models.
Where this product is used
- Jobs that call for a pneumatic grinder
Features
- Type: Air barrel grinder, safety lever
- Spindle size: 3/8" - 16 THD
- Air pressure: 90 psi
Key specifications
| Specification | Detail |
|---|---|
| Brand | Trax |
| Type | Air barrel grinder, safety lever |
| Spindle size | 3/8" - 16 THD |
| Air pressure | 90 psi |
Choosing the right option
Free speed, disc capacity, air consumption and air inlet for the DS models.
Choose by size: KPT-NG75A-DS (3", 15000 RPM), KPT-NG125A-DS (5", 7200 RPM) or KPT-NG150A-DS (6", 6000 RPM). The two larger sizes have a 1/2" air inlet.
Also from Trax: Trax Roll Throttle Barrel Grinder, Trax Safety Lever Barrel Grinder with Governor.
| Part number | Size | Disc capacity | Free speed | Air consumption | Air inlet |
|---|---|---|---|---|---|
| KPT-NG75A-DS | 3" | 75 x 13 x 9.5mm | 15000 RPM | 10.01 l/s | 3/8" |
| KPT-NG125A-DS | 5" | 125 x 19 x 12.7mm | 7200 RPM | 20.85 l/s | 1/2" |
| KPT-NG150A-DS | 6" | 150 x 25 x 15.9mm | 6000 RPM | 20.85 l/s | 1/2" |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Trax Safety Lever Barrel Grinder: 280 x 50 x 88
SKU: A0137469 | Model: KPT-NG75A-DS
Trax KPT-NG75A-DS safety lever barrel grinder, size 3", disc capacity 75 x 13 x 9.5mm, 15000 RPM, 3/8" air inlet.
