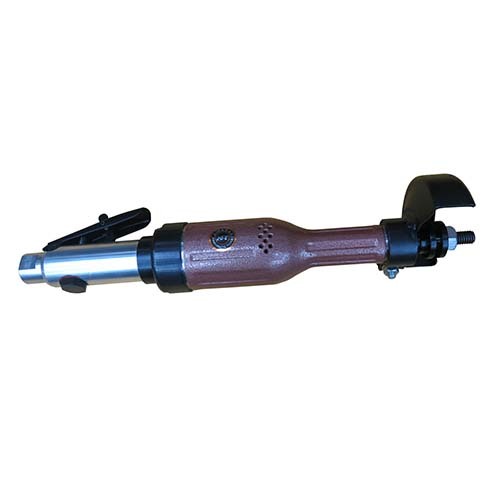

Trax KPT-NG125A-DSG and KPT-NG150A-DSG barrel grinders
Available
Trax offers barrel grinders with governor in two sizes: KPT-NG125A-DSG (5") and KPT-NG150A-DSG (6"), both with a 3/8" - 16 THD spindle and a 1/2" air inlet.
It has disc capacities of 125 x 19 x 12.7mm and 150 x 25 x 15.9mm, free speeds of 7200 and 6000 RPM, and an air consumption of 20.85 l/s for both.
Where this product is used
- Jobs that call for a pneumatic grinder
Features
- Type: Air barrel grinder with governor
- Spindle size: 3/8" - 16 THD
- Air pressure: 90 psi
Key specifications
| Specification | Detail |
|---|---|
| Brand | Trax |
| Type | Air barrel grinder with governor |
| Spindle size | 3/8" - 16 THD |
| Air pressure | 90 psi |
Choosing the right option
Choose by size: KPT-NG125A-DSG (5", 7200 RPM) or KPT-NG150A-DSG (6", 6000 RPM).
Also from Trax: Trax Safety Lever Barrel Grinder, Trax Roll Throttle Barrel Grinder.
| Part number | Size | Disc capacity | Free speed | Air consumption | Air inlet |
|---|---|---|---|---|---|
| KPT-NG125A-DSG | 5" | 125 x 19 x 12.7mm | 7200 RPM | 20.85 l/s | 1/2" |
| KPT-NG150A-DSG | 6" | 150 x 25 x 15.9mm | 6000 RPM | 20.85 l/s | 1/2" |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Trax Safety Lever Barrel Grinder with Governor: 5
SKU: A0137472 | Model: KPT-NG125A-DSG
Trax KPT-NG125A-DSG barrel grinder with governor, size 5", disc capacity 125 x 19 x 12.7mm, 7200 RPM, 1/2" air inlet.
