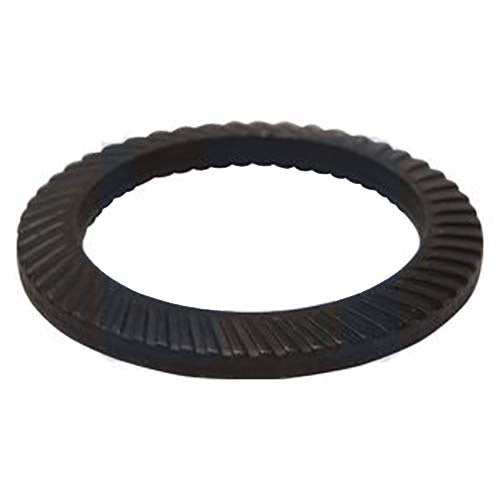

Schnorr WOHTVPM05 M5 Type VS Safety Washer, Serrated, Black, Pack of 200

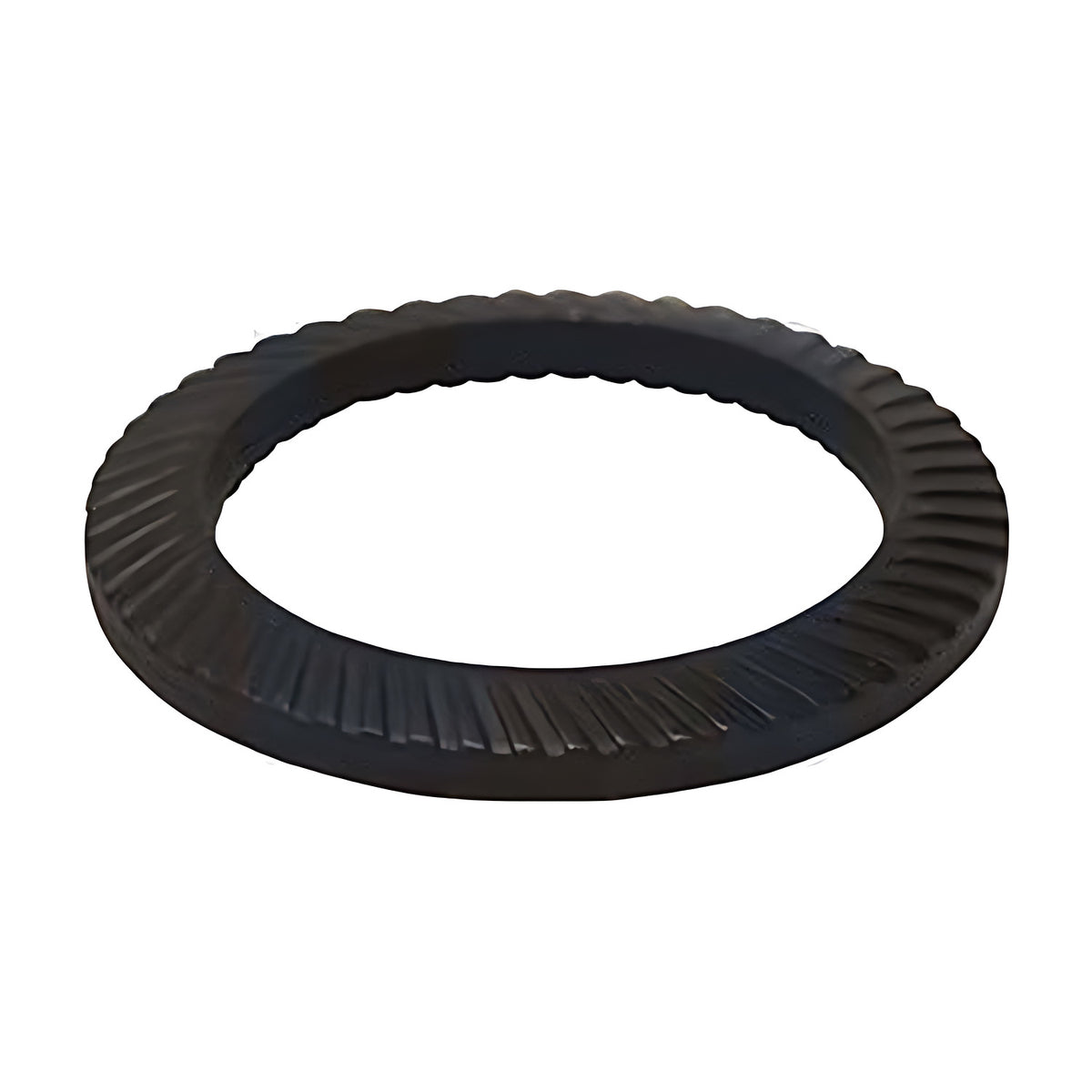

Schnorr Type VS serrated safety washer in a black finish: 13 items, sizes M5 to M30, supplied as packs of 10 to 200.

Schnorr describes its serrated safety washers as conical, with precision serrations, built on the basic principle of a disc spring (manufacturer-stated).

Schnorr gives the hardness of its safety washers as 39 to 45 HRC (manufacturer-stated). Schnorr describes its original safety washers as having high resistance to vibration (manufacturer-stated).

Schnorr says the Type VS has a greater thickness for higher pre-tensioning loads, is used with high-strength bolts of grade 10.9 without any restrictions, and fits screws M5 to M30 (manufacturer-stated).

Each item shows its size and its listed dimensions, for example M5 x 9 x 0.9mm. Only the size is labelled; the other figures are printed in the item name without labels, so this page does not say which is the outer diameter or the thickness.

Schnorr makes safety washers and disc springs for the automotive or aerospace industry and machine construction (manufacturer-stated).

Where this product is used

• Fitted under a bolt head or nut as a serrated safety washer
• Used with grade 10.9 high-strength bolts, per Schnorr (manufacturer-stated)
• Compare Types and finishes: the same range is listed as Type S and Type VS, in black and zinc plated

Features

• 13 items: sizes M5 to M30
• Type VS, serrated, black finish
• Listed dimensions shown for every size
• Supplied as packs of 10 to 200
• Schnorr describes its safety washers as having high resistance to vibration (manufacturer-stated)

Common specifications

Key specifications

Listed dimensions are printed in the item name; only the size is labelled.

Selecting the right option

Choose the Type, size and finish together. Check the listed dimensions against your joint, because the figures are printed without labels. Schnorr says it is essential to tighten bolts to 100% of the initial force corresponding to the minimum required bolt tension (manufacturer-stated). The same Type is also listed in a different finish (the zinc plated version); for the other Type in the same finish see the Type S page.

Related products

Related products: Schnorr Type VS Safety Washer, Serrated, Zinc Plated, M5 to M30 and Schnorr Type S Safety Washer, Serrated, Black, M8, M10 and M36.
