Schnorr type VS serrated safety washer, M5
The price shown is for the pack.
Available

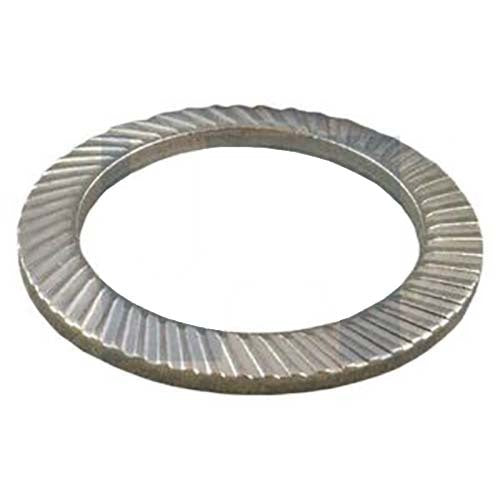

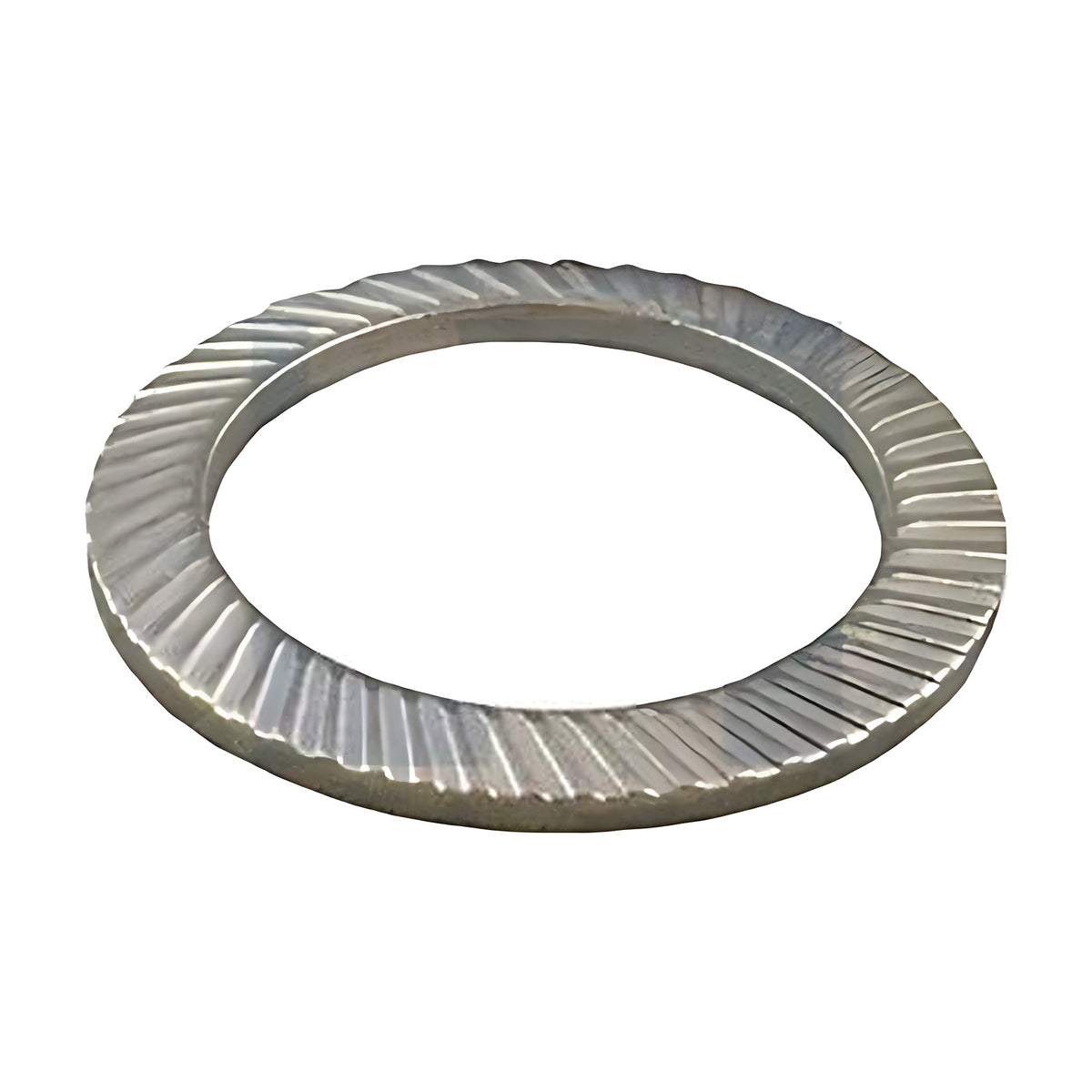

Schnorr Type VS serrated safety washer in a zinc plated finish: 13 items, sizes M5 to M30, supplied as packs of 10 to 200.
Schnorr serrated safety washers are conical, with precision serrations, built on the basic principle of a disc spring. The hardness of its safety washers are 39 to 45 HRC. Schnorr original safety washers have high resistance to vibration. The Type VS has a greater thickness for higher pre-tensioning loads, is used with high-strength bolts of grade 10.9 without any restrictions, and fits screws M5 to M30. Schnorr makes safety washers and disc springs for the automotive or aerospace industry and machine construction.
Where this product is used
- Fitted under a bolt head or nut as a serrated safety washer
- Used with grade 10.9 high-strength bolts, per Schnorr
Features
- 13 items: sizes M5 to M30
- Type VS, serrated, zinc plated finish
- Supplied as packs of 10 to 200
- Schnorr safety washers have high resistance to vibration
Key specifications
| Specification | Detail |
|---|---|
| Brand | Schnorr |
| Product | Type VS serrated safety washer |
| Finish | Zinc Plated |
| Sizes | M5 to M30 |
| Pack | Packs of 10 to 200 |
Choosing the right option
Choose the Type, size and finish together. It is essential to tighten bolts to 100% of the initial force corresponding to the minimum required bolt tension.
Related products: Schnorr Type VS Safety Washer, Serrated, Black, M5 to M30, Schnorr Type S Safety Washer, Serrated, Zinc Plated, M2 to M4 and M36.
| Option | Part number | SKU |
|---|---|---|
| M5 | A0141380 | |
| M6 | A0141381 | |
| M8 | A0141382 | |
| M10 | A0141383 | |
| M12 | A0141384 | |
| M14 | A0141385 | |
| M16 | A0141386 | |
| M18 | A0141387 | |
| M20 | A0141388 | |
| M22 | A0141389 | |
| M24 | A0141390 | |
| M27 | A0141391 | |
| M30 | A0141392 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Schnorr Type VS Safety Washer, Serrated, Zinc Plated, M5 to M30: M5
SKU: A0141380 | Model: WOHTVZM05
Schnorr WOHTVZM05: Type VS serrated safety washer, zinc plated, size M5. Pack of 200.
