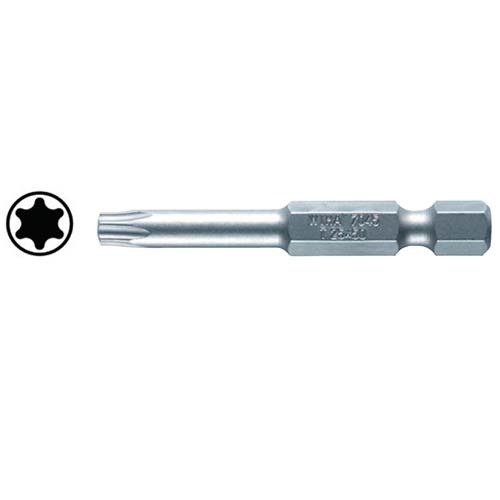

Wiha torx bits T5 to T40, T5 / 50
Available
These are Professional bits. They are chrome-vanadium steel, through hardened, with the drive made to DIN 3126 and ISO 1173.
Where this product is used
- All types of screw applications in trade and industry
Features
- Drive to DIN 3126, ISO 1173, style E 6.3 (1/4" hex)
- Chrome-vanadium steel, through hardened
- 50mm or 110mm overall length, depending on the article
- Drive: 1/4" hex, DIN 3126, ISO 1173, style E 6.3
Key specifications
| Specification | Detail |
|---|---|
| Brand | Wiha |
| Series | 7045Z |
| Drive | 1/4" hex, DIN 3126, ISO 1173, style E 6.3 |
| Overall length | 50mm (T5 to T27, T40), 110mm (T15, T30) |
| Material | Chrome-vanadium steel, through hardened |
Choosing the right option
Choose the Torx size that matches the screw head and then the length. For 25mm bits see the Torx Drive Insert Bit 1/4" Hex, for a hole in the tip for security screws the Wiha Torx Security Power Bit 1/4" Hex, and for other sizes and lengths the Wiha Torx Power Insert Bit 1/4" Hex (7045ZL).
See also: Torx Drive Insert Bit 1/4" Hex, Wiha Torx Power Insert Bit 1/4" Hex (7045ZL), Wiha Torx Security Power Bit 1/4" Hex.
| Option | Part number | SKU |
|---|---|---|
| T5 / 50 | 32299(7045Z) | A0144528 |
| T6 / 50 | 32302(7045Z) | A0144529 |
| T7 / 50 | 32303(7045Z) | A0144530 |
| T8 / 50 | 32304(7045Z) | A0144531 |
| T9 / 50 | 32305(7045Z) | A0144532 |
| T10 / 50 | 32306(7045Z) | A0144533 |
| T15 / 50 | 32307(7045Z) | A0144534 |
| T20 / 50 | 32308(7045Z) | A0144535 |
| T25 / 50 | 32309(7045Z) | A0144536 |
| T27 / 50 | 33920(7045Z) | A0144537 |
| T40 / 50 | 33928(7045Z) | A0144538 |
| T15 / 110 | 33727(7045Z) | A0144540 |
| T30 / 110 | 33926(7045Z) | A0144539 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Wiha Torx Power Insert Bit 1/4" Hex (7045Z): T5 / 50
SKU: A0144528 | Model: 32299(7045Z)
Wiha 32299(7045Z): T5 Torx bit, 50mm long, drive 1/4" hex, DIN 3126, ISO 1173, style E 6.3.
