Wiha torx standard bits T3 to T50, T3
Available

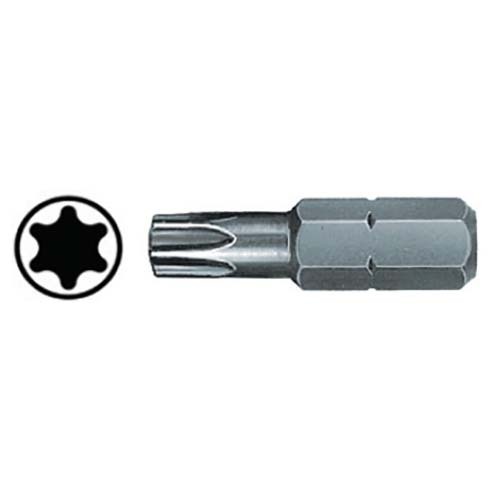

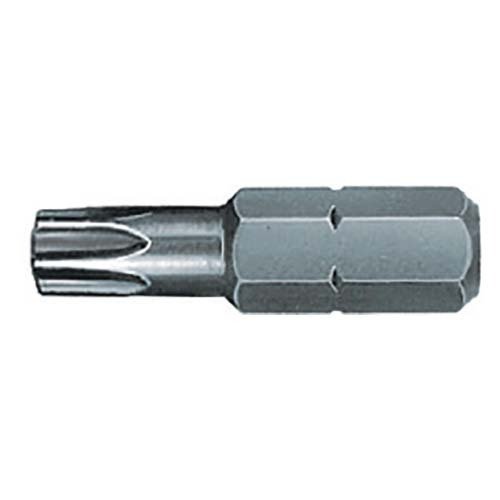

Wiha 7015Z Torx standard insert bits with a 1/4" hex drive (style C 6.3), in sixteen sizes from T3 to T50.
T3 to T40 are 25mm long and the T45 and T50 are 35mm. The bits are chrome-vanadium steel, through hardened, with the drive made to DIN 3126 and ISO 1173.
Where this product is used
- All types of screw applications in trade and industry
Features
- Drive to DIN 3126, ISO 1173, style C 6.3 (1/4" hex)
- Chrome-vanadium steel, through hardened
- 25mm long up to T40, 35mm for T45 and T50
- Drive: 1/4" hex, DIN 3126, ISO 1173, style C 6.3
Key specifications
| Specification | Detail |
|---|---|
| Brand | Wiha |
| Series | 7015Z |
| Drive | 1/4" hex, DIN 3126, ISO 1173, style C 6.3 |
| Overall length | 25mm (T3 to T40), 35mm (T45 and T50) |
| Material | Chrome-vanadium steel, through hardened |
Choosing the right option
Choose the Torx size that matches the screw head, T3 to T50 here. The T45 and T50 are the 35mm bits; every other size is 25mm. For a hole in the tip for security screws see the Torx Security Drive Insert Bit 1/4" Hex, for 50mm bits the Wiha Torx Power Insert Bit 1/4" Hex (7045Z), and for a 5/16" hex holder the Torx Insert Bit 5/16" Hex.
See also: Wiha Torx Power Insert Bit 1/4" Hex (7045Z), Torx Security Drive Insert Bit 1/4" Hex, Torx Insert Bit 5/16" Hex.
| Option | Part number | SKU |
|---|---|---|
| T3 | 26250(7015Z) | A0144173 |
| T4 | 25097(7015Z) | A0144174 |
| T5 | 01711(7015Z) | A0144175 |
| T6 | 01712(7015Z) | A0144176 |
| T7 | 01713(7015Z) | A0144177 |
| T8 | 01714(7015Z) | A0144178 |
| T9 | 01715(7015Z) | A0144179 |
| T10 | 01716(7015Z) | A0144180 |
| T15 | 01717(7015Z) | A0144181 |
| T20 | 01718(7015Z) | A0144182 |
| T25 | 01719(7015Z) | A0144183 |
| T27 | 01720(7015Z) | A0144184 |
| T30 | 01721(7015Z) | A0144185 |
| T40 | 01722(7015Z) | A0144186 |
| T45 | 01723(7015Z) | A0144187 |
| T50 | 01724(7015Z) | A0144188 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Torx Drive Insert Bit 1/4" Hex: T3
SKU: A0144173 | Model: 26250(7015Z)
Wiha 26250(7015Z): T3 Torx bit, 25mm long, drive 1/4" hex, DIN 3126, ISO 1173, style C 6.3.
