Wiha torx security bits TR7 to TR40, TR7
Available

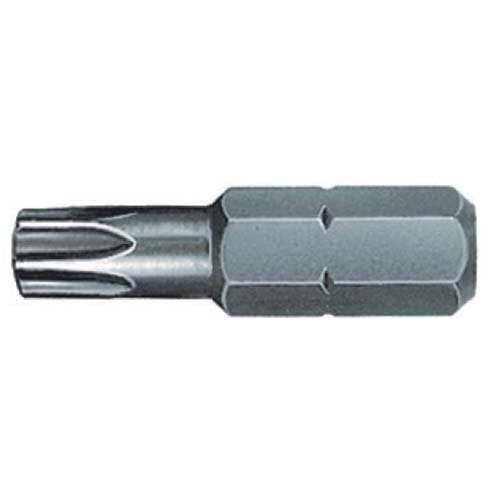

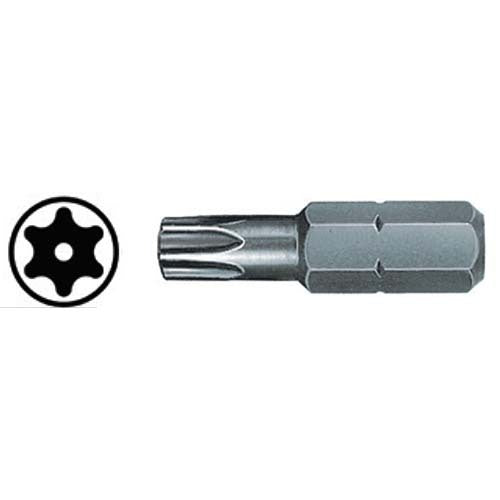

Each bit has a hole in the tip for Torx Tamper Resistant security screws.
Where this product is used
- Torx Tamper Resistant security screws (hole in the bit tip)
Features
- Hole in the bit tip for Torx Tamper Resistant security screws
- Standard bit, Torx H, style C 6.3
- 25mm overall length, 1/4" hex drive
- Drive: 1/4" hex, style C 6.3
Key specifications
| Specification | Detail |
|---|---|
| Brand | Wiha |
| Series | 7015ZTR |
| Drive | 1/4" hex, style C 6.3 |
| Overall length | 25mm |
| Tip | Torx H: hole in the tip for Torx Tamper Resistant security screws |
Choosing the right option
Choose the size that matches the security screw head, TR7 to TR40 here. These bits have the hole in the tip for Torx Tamper Resistant screws; for Torx screws without that feature see the Torx Drive Insert Bit 1/4" Hex. For the 50mm version of the same security profile see the Wiha Torx Security Power Bit 1/4" Hex.
See also: Wiha Torx Security Power Bit 1/4" Hex, Torx Drive Insert Bit 1/4" Hex, Wiha Torx Power Insert Bit 1/4" Hex (7045Z).
| Option | Part number | SKU |
|---|---|---|
| TR7 | 03115(7015ZTR) | A0144189 |
| TR8 | 03117(7015ZTR) | A0144190 |
| TR10 | 01727(7015ZTR) | A0144192 |
| TR15 | 01728(7015ZTR) | A0144193 |
| TR20 | 01729(7015ZTR) | A0144194 |
| TR25 | 01730(7015ZTR) | A0144195 |
| TR27 | 01731(7015ZTR) | A0144196 |
| TR30 | 01732(7015ZTR) | A0144197 |
| TR40 | 01733(7015ZTR) | A0144198 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Torx Security Drive Insert Bit 1/4" Hex: TR7
SKU: A0144189 | Model: 03115(7015ZTR)
Wiha 03115(7015ZTR): Torx security bit TR7 (T7H), 25mm long, 1/4" hex drive, hole in the tip for Tamper Resistant screws.
