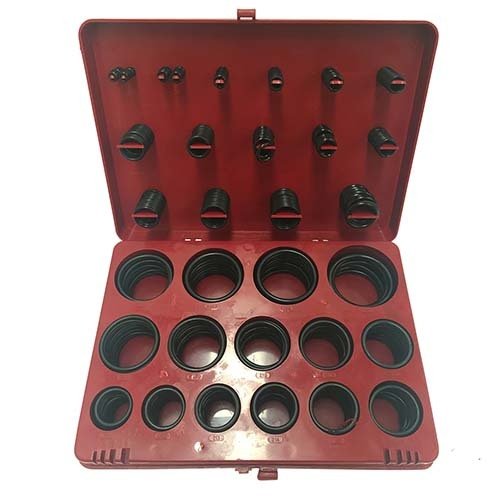

Work Shop Buddy 382-piece imperial O-ring assortment

The Workshop Buddy Imperial O-Ring Grab Kit (FD-2001) is an assortment of imperial O-rings in 30 sizes, from 1/8 to 1-3/4" inside diameter, with 1/16, 3/32, 1/8 and 3/16" sections. The kit contains 382 pieces in total.

Workshop Buddy grab kits are pre-sorted assortments for the workshop, so the common sizes are on hand when a repair comes up.

Where this product is used

• Replacing worn or damaged O-rings during machinery and equipment servicing
• Hydraulic, pneumatic and fluid fittings that use inch-sized O-rings
• Keeping common imperial O-ring sizes on hand in the workshop or service vehicle

Features

• 382 pieces in total, in 30 sizes
• Part numbers BS006 to BS327, with inside diameter, outside diameter and section for every size
• Kit type: Imperial O-Ring Grab Kit
• Contents: 382 pieces

Key specifications

Supplied with

• BS006, 1/8, 1/4, 1/16, 22
• BS007, 5/32, 9/32, 1/16, 22
• BS008, 3/16, 5/16, 1/16, 20
• BS009, 7/32, 11/32, 1/16, 20
• BS010, 1/4, 3/8, 1/16, 18
• BS011, 5/16, 7/16, 1/16, 19
• BS012, 3/8, 1/2, 1/16, 19
• BS110, 3/8, 9/16, 3/32, 13
• BS111, 7/16, 5/8, 3/32, 13
• BS112, 1/2, 11/16, 3/32, 13
• BS113, 9/16, 3/4, 3/32, 13
• BS114, 5/8, 13/16, 3/32, 13
• BS115, 11/16, 7/8, 3/32, 13
• BS116, 3/4, 15/16, 3/32, 13
• BS210, 3/4, 1, 1/8, 10
• BS211, 13/16, 1-1/16, 1/8, 10
• BS212, 7/8, 1-1/8, 1/8, 10
• BS213, 15/16, 1-3/16, 1/8, 10
• BS214, 1, 1-1/4, 1/8, 10
• BS215, 1-1/16, 1-5/16, 1/8, 10
• BS216, 1-1/8, 1-3/8, 1/8, 10
• BS217, 1-3/16, 1-7/16, 1/8, 10
• BS218, 1-1/4, 1-1/2, 1/8, 10
• BS219, 1-5/16, 1-9/16, 1/8, 10

Choosing the right option

Measure the inside diameter and the section (cross-section) of the O-ring you are replacing and match both to the contents table. For metric O-rings, see the metric O-ring kit FD-2004.

Related kits: Workshop Buddy Metric O-Ring Grab Kit (FD-2004), Workshop Buddy Seal Washer Grab Kit (FD-6044), Workshop Buddy Copper Washer Grab Kit (FD-6043).
