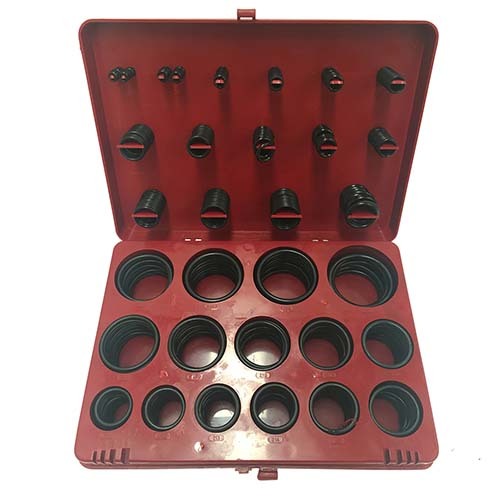

Work Shop Buddy 386-piece metric O-ring assortment

The Workshop Buddy Metric O-Ring Grab Kit (FD-2004) is an assortment of metric O-rings in 30 sizes, from 3 to 44mm inside diameter, with 2, 2.5, 3 and 4mm sections. The kit contains 386 pieces in total.

Workshop Buddy grab kits are pre-sorted assortments for the workshop, so the common sizes are on hand when a repair comes up.

Where this product is used

• Replacing worn or damaged O-rings during machinery and equipment servicing
• Hydraulic, pneumatic and fluid fittings that use metric O-rings
• Keeping common metric O-ring sizes on hand in the workshop or service vehicle

Features

• 386 pieces in total, in 30 sizes
• Part numbers R-1 to R-30, with inside diameter, outside diameter and section for every size
• Kit type: Metric O-Ring Grab Kit
• Contents: 386 pieces

Key specifications

Supplied with

• R-1, 3, 7, 2, 16
• R-2, 4, 8, 2, 16
• R-3, 5, 9, 2, 16
• R-4, 6, 10, 2, 16
• R-5, 7, 11, 2, 16
• R-6, 8, 12, 2, 16
• R-7, 10, 14, 2, 16
• R-8, 10, 15, 2.5, 13
• R-9, 11, 16, 2.5, 13
• R-10, 12, 17, 2.5, 13
• R-11, 14, 19, 2.5, 13
• R-12, 16, 21, 2.5, 13
• R-13, 17, 22, 2.5, 13
• R-14, 19, 24, 2.5, 13
• R-15, 19, 25, 3, 12
• R-16, 20, 26, 3, 12
• R-17, 22, 28, 3, 12
• R-18, 24, 30, 3, 12
• R-19, 25, 31, 3, 12
• R-20, 27, 33, 3, 12
• R-21, 28, 34, 3, 12
• R-22, 30, 36, 3, 12
• R-23, 32, 38, 3, 12
• R-24, 33, 39, 3, 12

Choosing the right option

Measure the inside diameter and the section (cross-section) of the O-ring you are replacing and match both to the contents table. For inch-sized O-rings, see the imperial O-ring kit FD-2001.

Related kits: Workshop Buddy Imperial O-Ring Grab Kit (FD-2001), Workshop Buddy Seal Washer Grab Kit (FD-6044), Workshop Buddy Copper Washer Grab Kit (FD-6043).
