EasyRoll I1 Swivel Plate Castor, White Nylon 50 mm | I12A02G50
Available

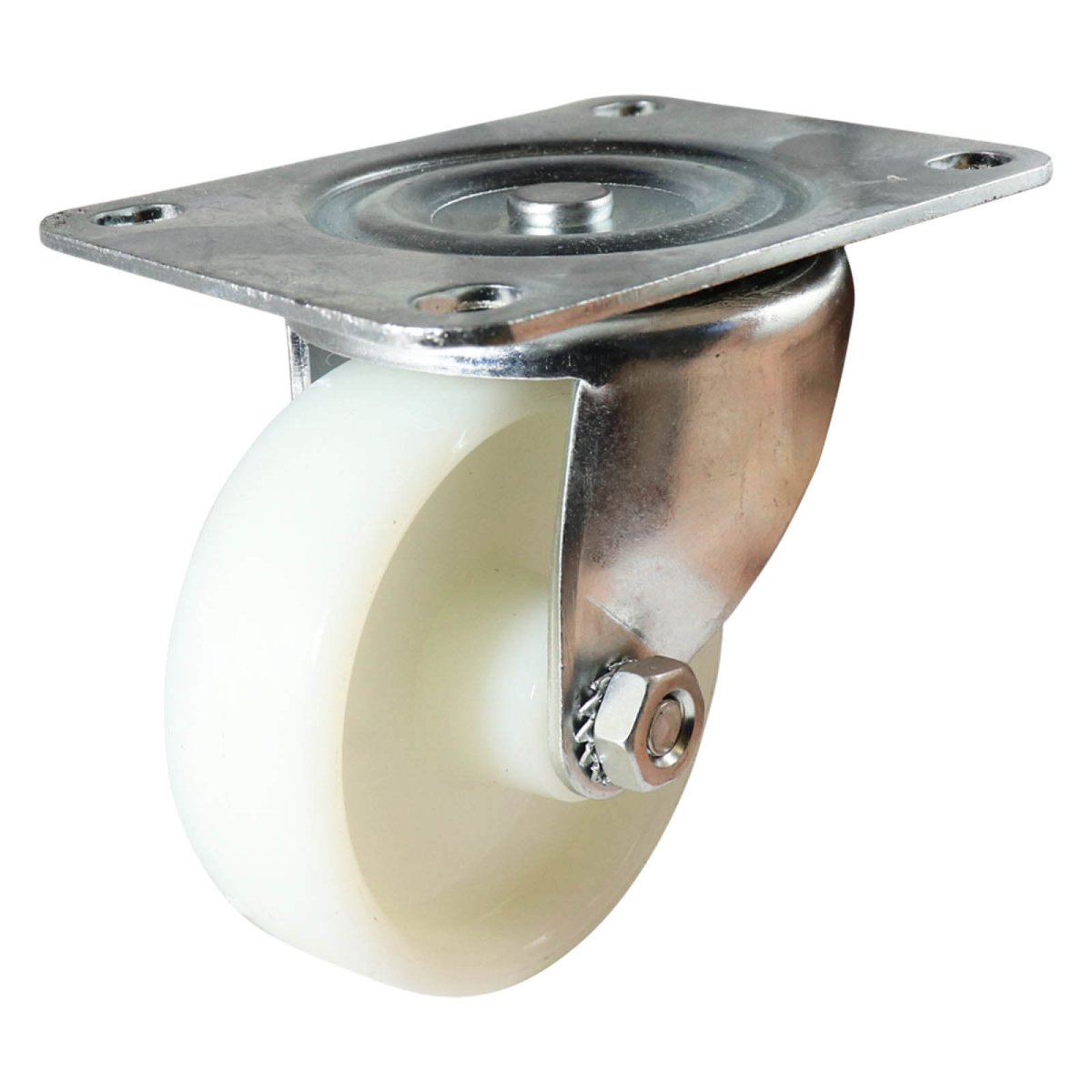

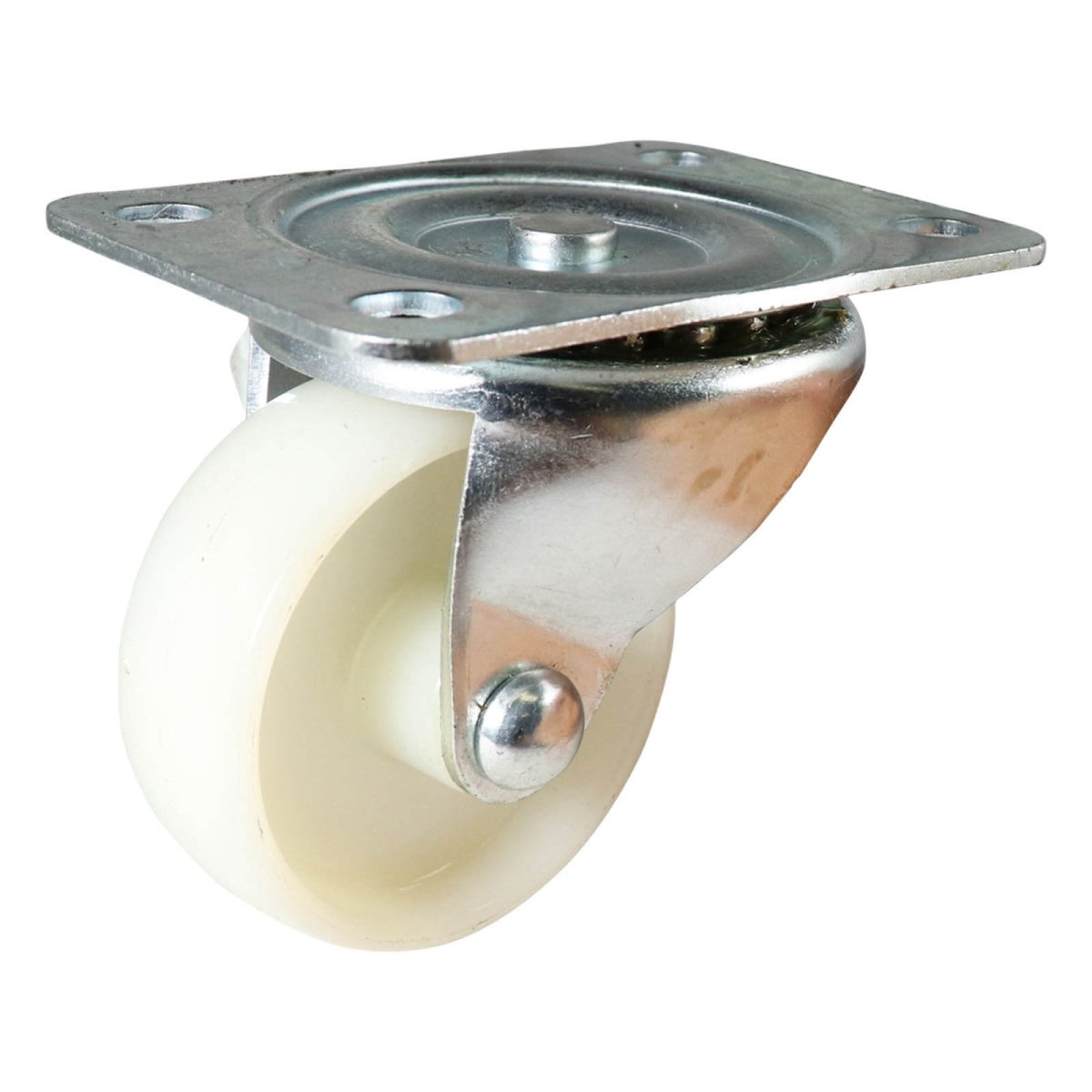

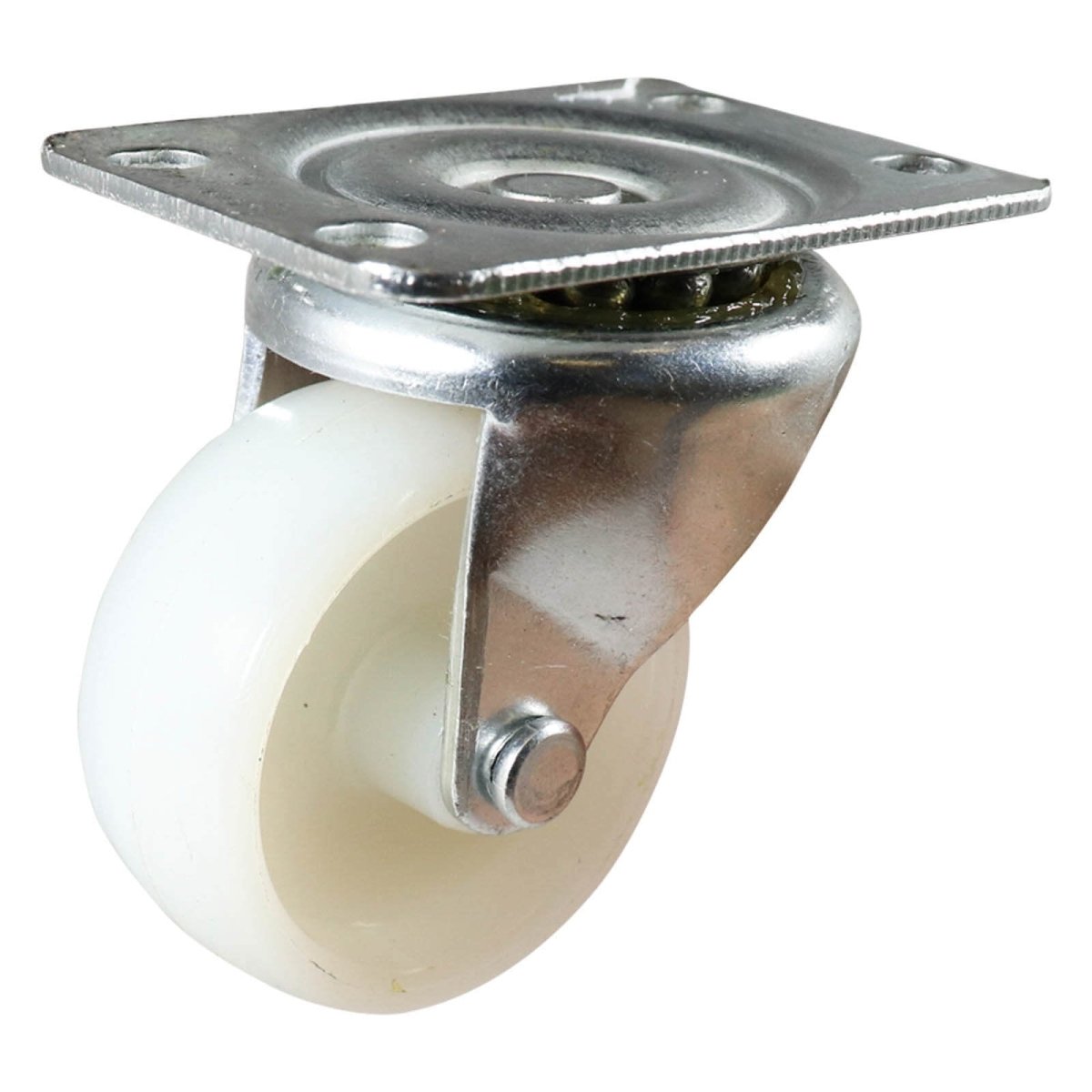

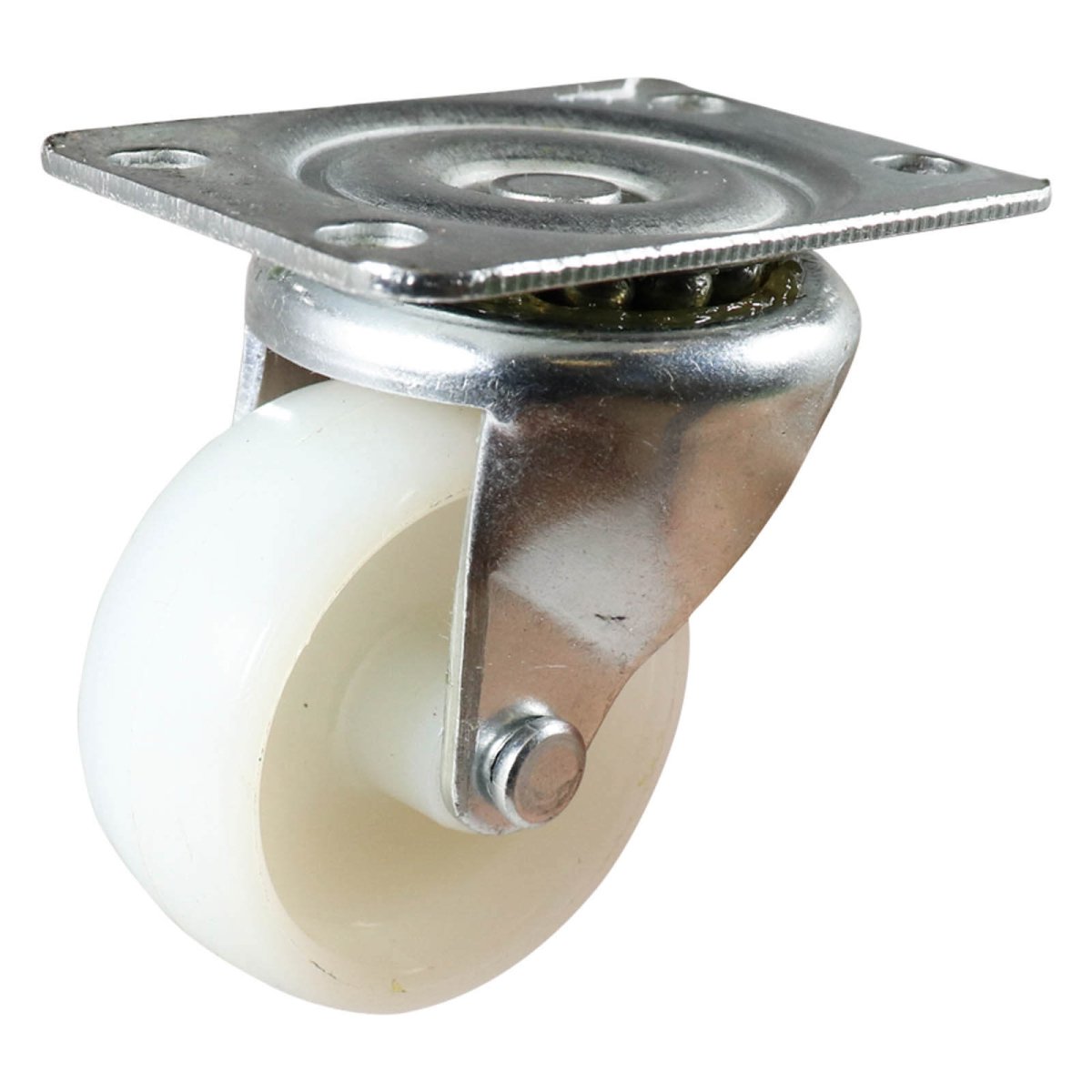

The EasyRoll I1 series swivel plate castor is fitted with a white nylon wheel and is available in 50, 63 and 75 mm wheel diameters. Load capacity is 40 kg to 120 kg per castor depending on the wheel size. Plate size and hole centres vary with wheel size and are listed in the table below.
The I1 series is suited to tool boxes; engine cranes and gearbox dollies; and workshop equipment. It has single headset bearing.
Where this product is used
- Tool boxes
- Engine cranes and gearbox dollies
- Workshop equipment
- Roll pallets, trolleys, drum and floor dollies
- Vending machines and arcade games
- General materials handling equipment
Features
- White nylon wheel in 50, 63 and 75 mm
- Load capacity 40 kg to 120 kg per castor
- Robust, simple industrial design
- Large diameter single headset bearing for strength with a low overall height
Key specifications
| Specification | Detail |
|---|---|
| Brand | EasyRoll |
| Series | I1 |
| Mounting | Swivel plate |
| Brake | No brake |
| Wheel | White Nylon wheel |
| Wheel diameter | 50, 63 and 75 mm |
| Tread width | 19 mm to 25 mm |
| Load capacity per castor | 40 kg to 120 kg |
| Overall height | 64 mm to 94 mm |
| Bearings | Single headset bearing |
Options and part numbers
| Option | Part number | Wheel diameter (mm) | Tread width (mm) | Load capacity (kg) | Overall height (mm) | Plate size (mm) | Hole centres (mm) |
|---|---|---|---|---|---|---|---|
| 50 mm | I12A02G50 | 50 | 19 | 40 | 64 | 67 x 48 | 54-56 x 25 |
| 63 mm | I12A02G63 | 63 | 23 | 85 | 78 | 95 x 70 | 73-76 x 44.5 |
| 75 mm | I12A02G75 | 75 | 25 | 120 | 94 | 105 x 80 | 80-86 x 60 |
Selecting the right option
A swivel castor turns to follow the direction of travel and a fixed castor rolls in a straight line, so many trolleys use fixed castors at one end and swivel castors at the other. EHI rates nylon wheels as follows: fair shock absorbency and floor protection, excellent load capacity and push effort and good durability. It suits smooth concrete, is strong and economical and may be noisy. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h (manufacturer-stated). The capacity of a trolley is not the sum of its castors: for a four wheel trolley EHI recommends each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries. If you are unsure which castor suits your application, contact AIMS with the load, the floor type and how the equipment is used.
Related products
See also EasyRoll I1 Series Swivel Plate Castor with Brake - Nylon Wheel, White, EasyRoll I1 Series Fixed Plate Castor - Nylon Wheel, White and EasyRoll J2 Series Swivel Plate Castor with Brake - Rubber Wheel, Blue, 100 mm.
