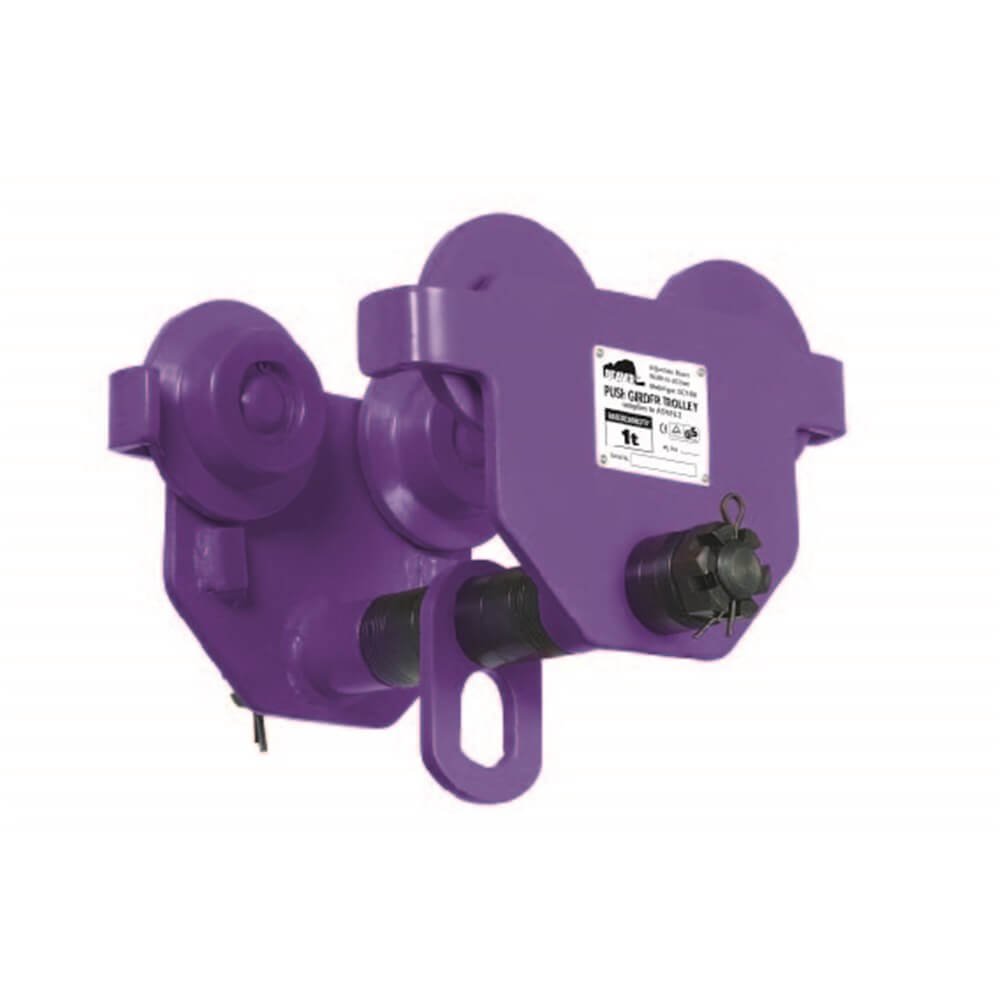

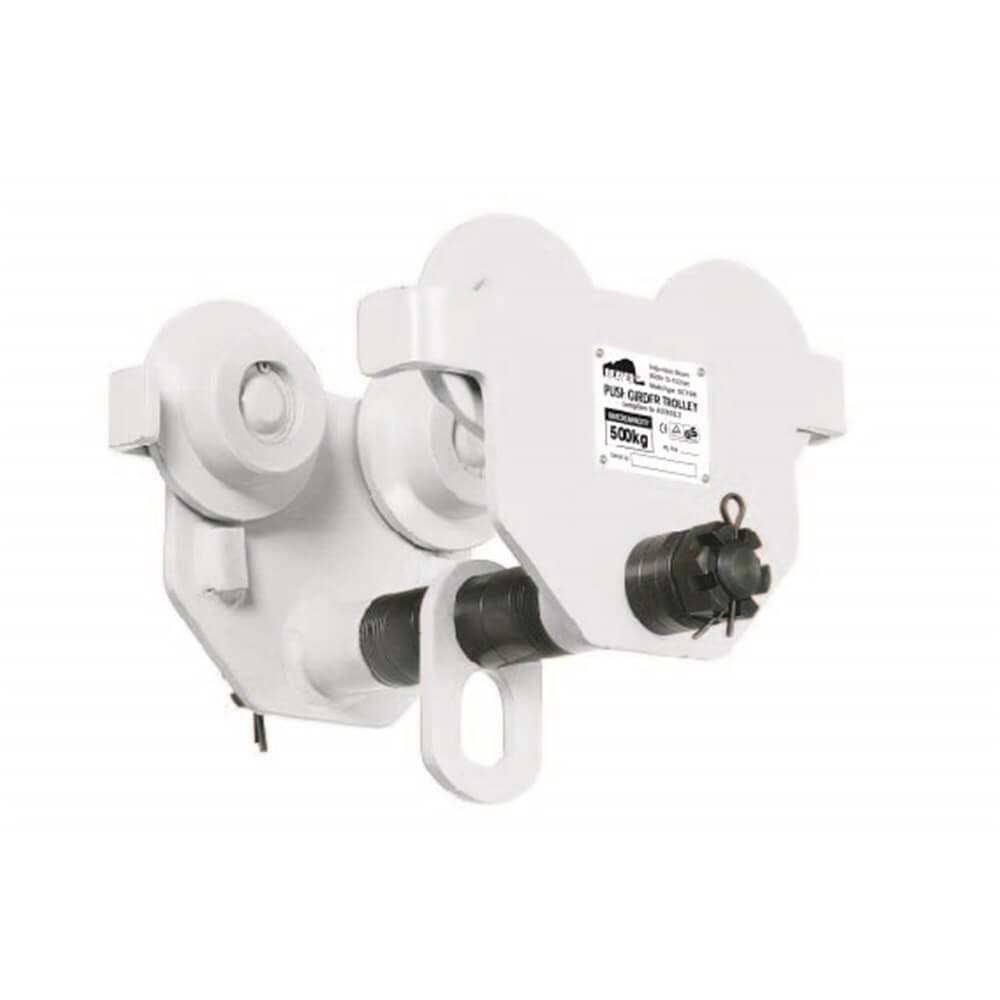

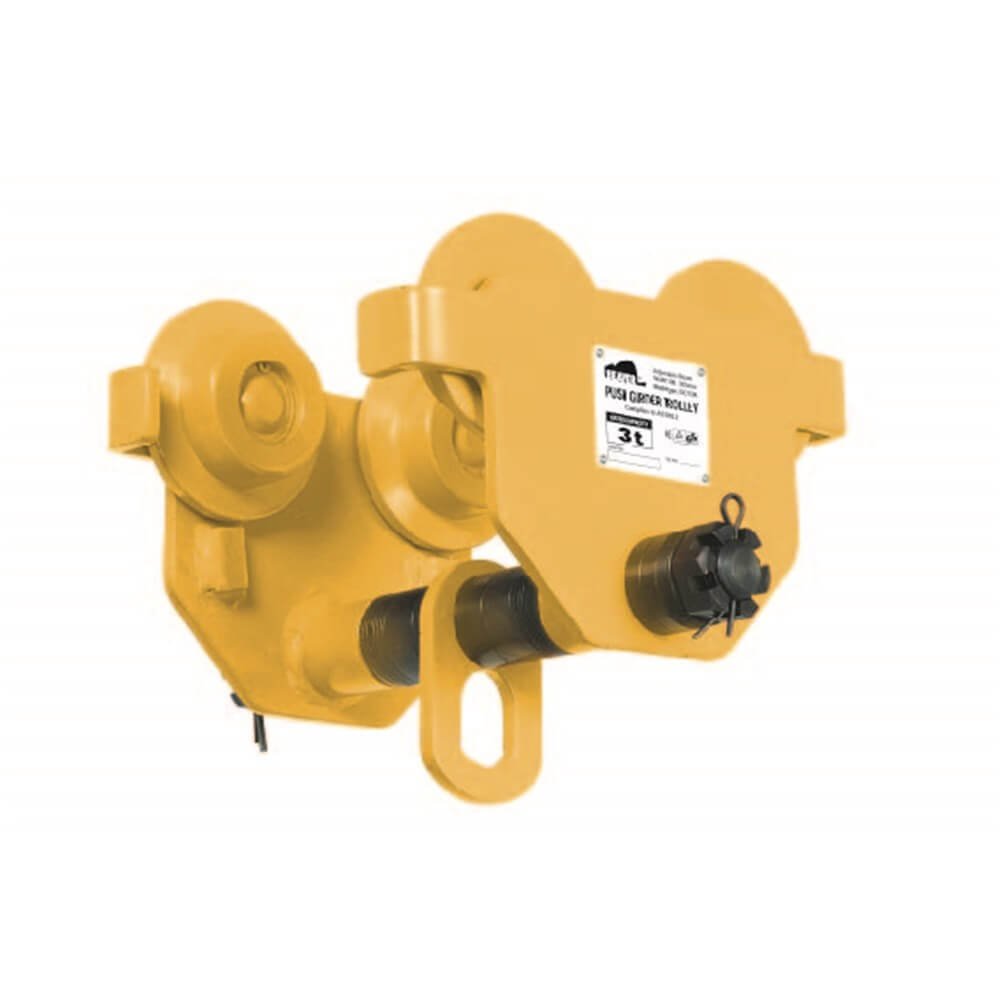

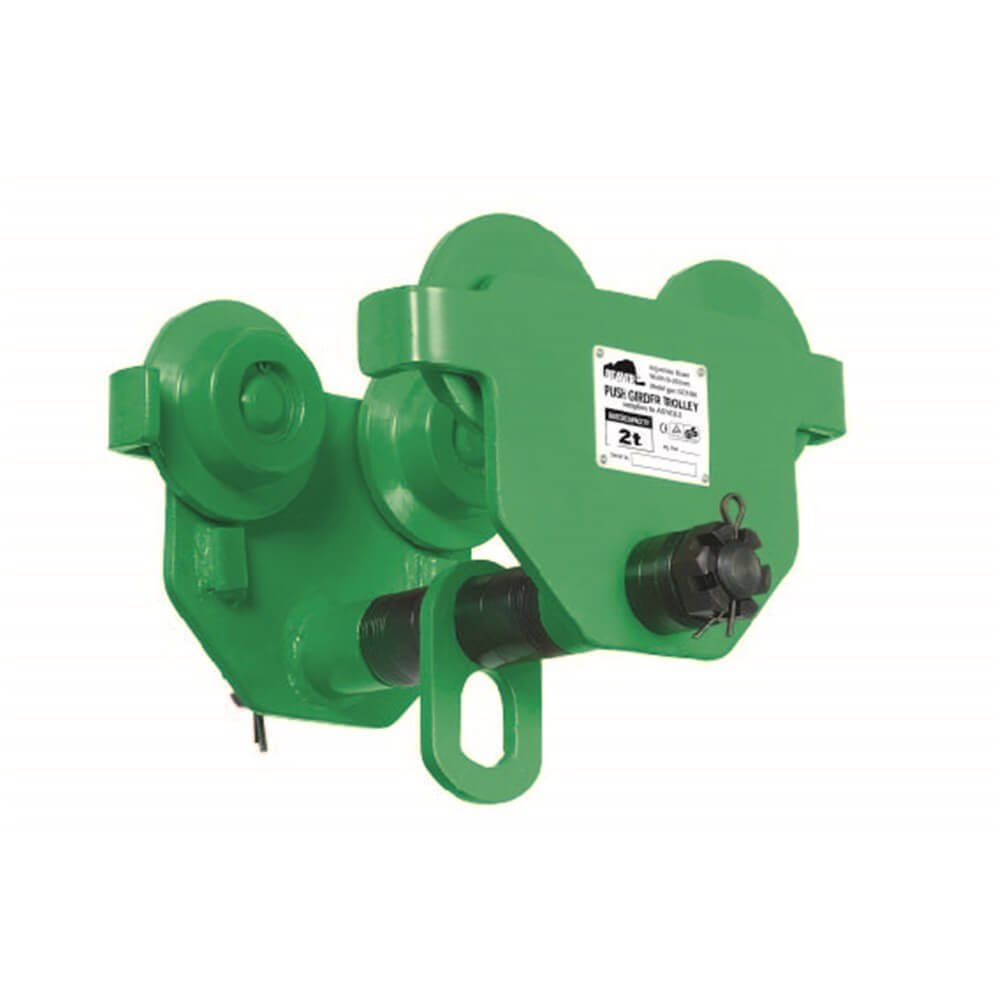

Beaver push girder trolleys for RSJ and universal beams

Beaver push girder trolleys are colour coded trolleys designed to run on RSJ or universal beams, with a hanging eye for attaching a chain block.

The trolleys comply with AS 1418.2. Every trolley is operationally tested to 150% of its rated capacity and comes with a test certificate, and each trolley has a serial number stamped on its stainless steel identification plate that matches the test certificate. The trolleys are not designed for passenger elevator applications and must not be used for that purpose, and that selecting and calculating the proper beam is the user's responsibility. Beaver's data for each code includes a proof load in kilonewtons, the minimum radius of curve, the beam width range the trolley adjusts to and the net weight. Lifting equipment must be used within its marked working load limit (WLL), inspected before each use, and selected and used in line with your site lifting procedure and the relevant Australian Standards.

Where this product is used

• Running a chain block along an RSJ or universal beam, as Beaver designs these trolleys to run on those beams
• Moving a hoist or chain block along a beam

Features

• Colour coded for lifting capacity recognition
• Designed to run on RSJ or universal beams
• Adjusts to different flange widths by adding or removing spacers or nuts on a suspension pin
• Independent hanging eye for attaching chain blocks
• Precision ball bearing trolley wheels with dust cover and clip
• Lightweight, all steel construction
• Anti-derailment end plates and anti-tilt blocks fitted as standard
• Stainless steel ID plate with a serial number that matches the test certificate
• Spare trolley wheels available from Beaver

Key specifications

Choosing the right option

Beaver's push girder trolley tables stop at 5 t (522050S), so the colour, proof load, dimensions and weight for 522100S are not. Lifting equipment must be used within its marked working load limit (WLL), inspected before each use, and selected and used in line with your site lifting procedure and the relevant Australian Standards.

Choose the rated capacity to suit the chain block plus the heaviest load it will carry, then check that the beam width range covers your beam flange and that your beam is suited to the trolley.
