BECO 6000 Extreme Temp Ball Bearing Viton Sealed Kiln Black 270°C
Available
The kiln black member of the BECO extreme temperature range: an AISI 52100 chrome steel deep groove ball bearing, phosphate coated black on every steel part, opened out to 4xC5 internal clearance and sealed both sides with Viton. It is supplied for service up to 270°C.
BECO give the range an operating temperature of -40°C to +250°C, with 250°C to 280°C rated for short-time use rather than permanent running, so 270°C sits in that upper band — worth checking against your duty cycle. The PTFE-based, silicone-free grease has a dropping point above 400°C, so the bearing keeps its lubricant where a conventional high temperature grease would have run out long before.
The sealed choice where the bearing is exposed to kiln dust and ash as well as heat.
At a glance
| Temperature rating | Up to 270°C |
|---|---|

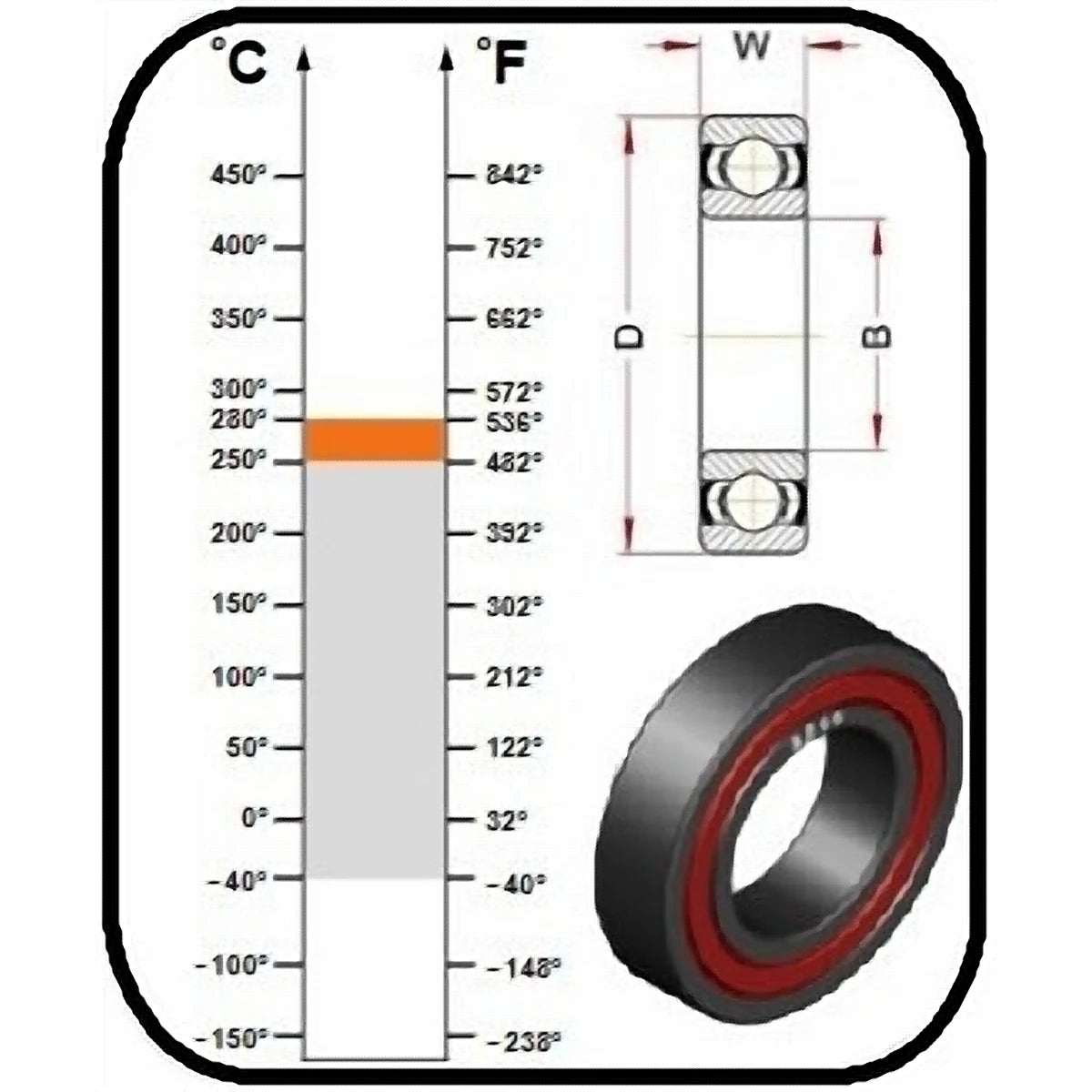

| Operating range | -40°C to +250°C, with 250°C to 280°C short-time only (BECO) |
| Radial internal clearance | 4xC5 |
| Sealing | 2RS sheet steel seals with vulcanised Viton rubber |
| Lubrication | PTFE-based silicone-free grease, dropping point above 400°C |
| Series | 6000, 6200, 6300 series |
| Bore range | 10 mm to 75 mm (38 sizes) |
- Kiln and furnace running gear — black phosphate finish resists scaling and oxidation through repeated heat cycles
- Sealed against kiln dust — Viton seals hold the grease in and keep dust and ash out of the raceways
- Free at temperature — 4xC5 clearance keeps the bearing turning once the trolley or frame is up to heat
Full specifications, applications and features are in the tabs below.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
10 x 26 x 8mm bearing
Model Number: 6000-BHT.270C_BECO
-
10 x 30 x 9mm bearing
Model Number: 6200-BHT.270C_BECO
-
10 x 35 x 11mm bearing
Model Number: 6300-BHT.270C_BECO
-
12 x 28 x 8mm bearing
Model Number: 6001-BHT.270C_BECO
-
12 x 32 x 10mm bearing
Model Number: 6201-BHT.270C_BECO
-
12 x 37 x 12mm bearing
Model Number: 6301-BHT.270C_BECO
-
15 x 32 x 9mm bearing
Model Number: 6002-BHT.270C_BECO
-
15 x 35 x 11mm bearing
Model Number: 6202-BHT.270C_BECO
-
15 x 42 x 13mm bearing
Model Number: 6302-BHT.270C_BECO
-
17 x 35 x 10mm bearing
Model Number: 6003-BHT.270C_BECO
-
17 x 40 x 12mm bearing
Model Number: 6203-BHT.270C_BECO
-
17 x 47 x 14mm bearing
Model Number: 6303-BHT.270C_BECO
-
20 x 42 x 12mm bearing
Model Number: 6004-BHT.270C_BECO
-
20 x 47 x 14mm bearing
Model Number: 6204-BHT.270C_BECO
-
20 x 52 x 15mm bearing
Model Number: 6304-BHT.270C_BECO
-
25 x 47 x 12mm bearing
Model Number: 6005-BHT.270C_BECO
-
25 x 52 x 15mm bearing
Model Number: 6205-BHT.270C_BECO
-
25 x 62 x 17mm bearing
Model Number: 6305-BHT.270C_BECO
-
30 x 55 x 13mm bearing
Model Number: 6006-BHT.270C_BECO
-
30 x 62 x 16mm bearing
Model Number: 6206-BHT.270C_BECO
-
30 x 72 x 19mm bearing
Model Number: 6306-BHT.270C_BECO
-
35 x 62 x 14mm bearing
Model Number: 6007-BHT.270C_BECO
-
35 x 80 x 21mm bearing
Model Number: 6307-BHT.270C_BECO
-
40 x 68 x 15mm bearing
Model Number: 6008-BHT.270C_BECO
-
40 x 80 x 18mm bearing
Model Number: 6208-BHT.270C_BECO
-
40 x 90 x 23mm bearing
Model Number: 6308-BHT.270C_BECO
-
45 x 75 x 16mm bearing
Model Number: 6009-BHT.270C_BECO
-
45 x 85 x 19mm bearing
Model Number: 6209-BHT.270C_BECO
-
45 x 100 x 25mm bearing
Model Number: 6309-BHT.270C_BECO
-
50 x 80 x 16mm bearing
Model Number: 6010-BHT.270C_BECO
-
50 x 90 x 20mm bearing
Model Number: 6210-BHT.270C_BECO
-
50 x 110 x 27mm bearing
Model Number: 6310-BHT.270C_BECO
-
55 x 90 x 18mm bearing
Model Number: 6011-BHT.270C_BECO
-
55 x 120 x 29mm bearing
Model Number: 6311-BHT.270C_BECO
-
60 x 95 x 18mm bearing
Model Number: 6012-BHT.270C_BECO
-
60 x 130 x 31mm bearing
Model Number: 6312-BHT.270C_BECO
-
65 x 140 x 33mm bearing
Model Number: 6313-BHT.270C_BECO
-
75 x 130 x 25mm bearing
Model Number: 6215-BHT.270C_BECO
