BECO Sealed 150°C: 26 sizes 6200-2RS.BHT.150C_BECO
Regular price
$35.00
Sale price
$35.00
Regular price
Inc. GST
Available

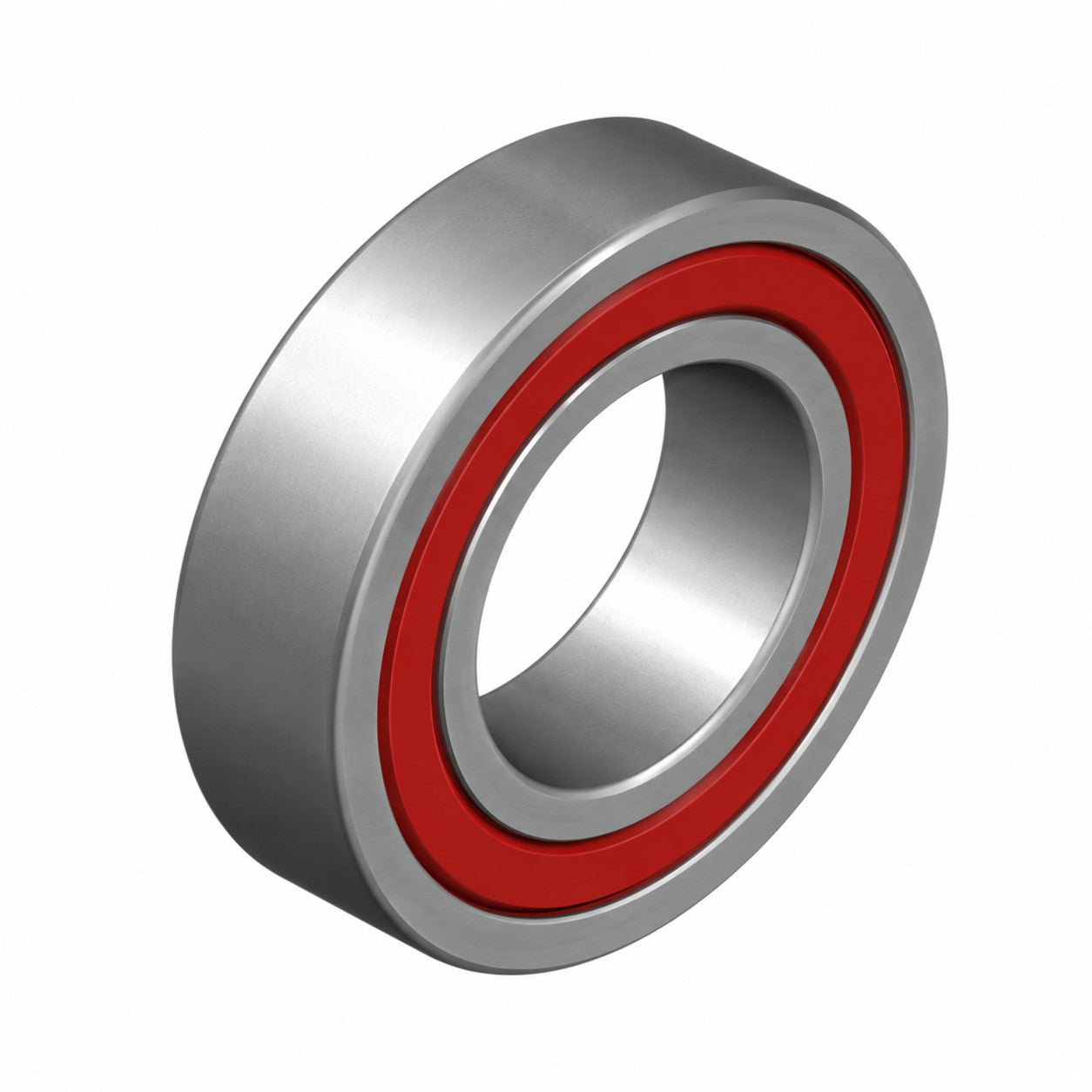

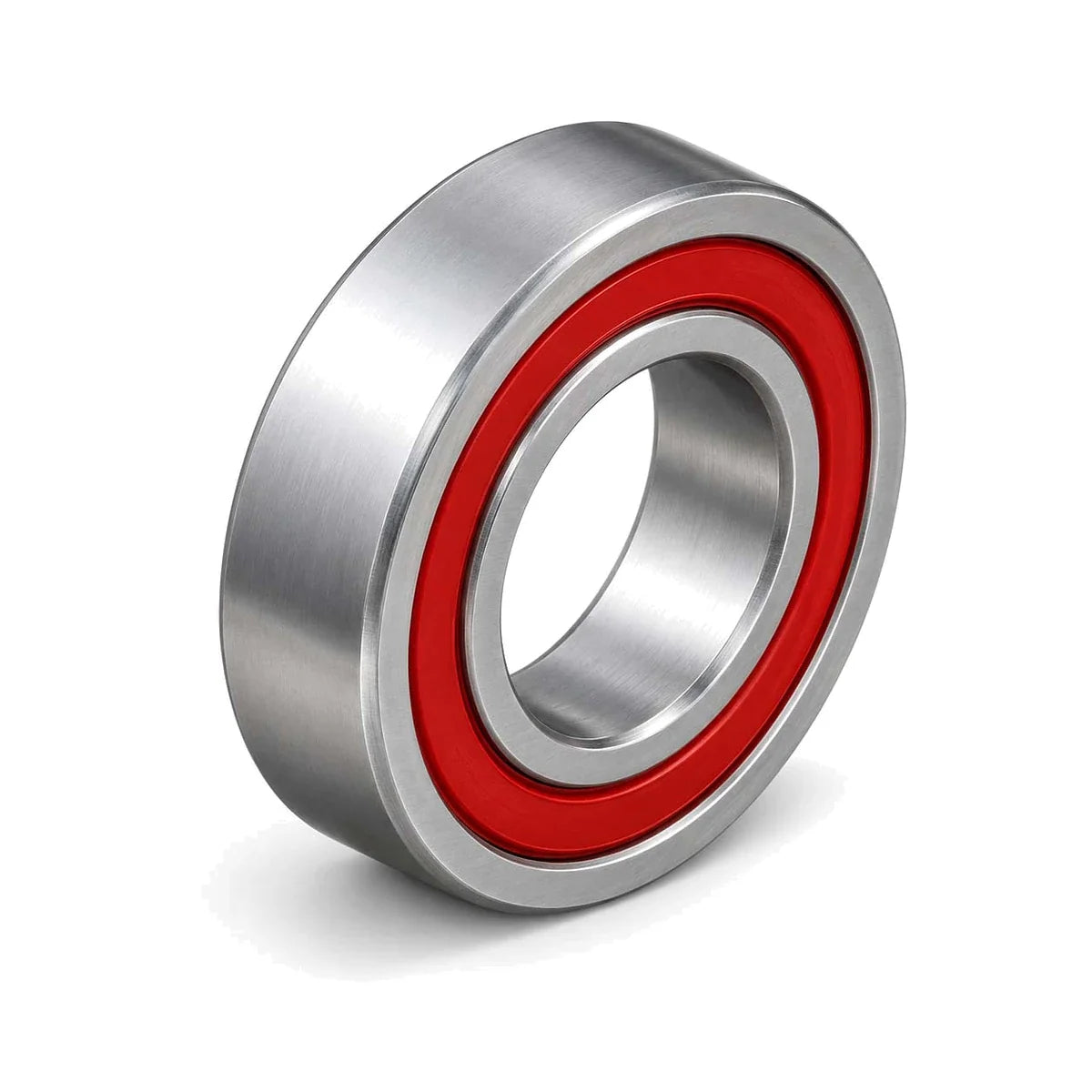

The BECO sealed 150°C range is a deep groove ball bearing for warm-running drives where a standard bearing loses its grease early. It has 2RS rubber seals on both sides, is greased for life and is built on standard bearing boundary dimensions. This range has 26 sizes with bores from 10 to 60mm across the 6000, 6200 and 6300 series.
It is for 80°C to 150°C.
Where this product is used
- Air conveyors and dry compressors
- Industrial fans
- Packaging machinery
- Papermaking plant
- Warm-running drives where a standard bearing is not lasting
Features
- Rated for 80°C to 150°C
- 2RS rubber seals on both sides to hold the grease in and keep contamination out
- Greased for life, with no re-lubrication schedule
- Standard bearing boundary dimensions
Key specifications
| Specification | Detail |
|---|---|
| Type | Single row deep groove ball bearing |
| Series | 6000, 6200 and 6300 |
| Bore diameter d | 10 to 60mm |
| Outside diameter D | 26 to 95mm |
| Width B | 8 to 18mm |
| Temperature rating | 80°C to 150°C |
| Sealing | 2RS rubber seals, both sides |
| Lubrication | Greased for life |
| Brand | BECO |
Available sizes
| Designation | Bore d (mm) | Outer D (mm) | Width B (mm) |
|---|---|---|---|
| 6000 | 10 | 26 | 8 |
| 6200 | 10 | 30 | 9 |
| 6300 | 10 | 35 | 11 |
| 6001 | 12 | 28 | 8 |
| 6201 | 12 | 32 | 10 |
| 6301 | 12 | 37 | 12 |
| 6002 | 15 | 32 | 9 |
| 6202 | 15 | 35 | 11 |
| 6302 | 15 | 42 | 13 |
| 6003 | 17 | 35 | 10 |
| 6203 | 17 | 40 | 12 |
| 6303 | 17 | 47 | 14 |
| 6004 | 20 | 42 | 12 |
| 6204 | 20 | 47 | 14 |
| 6304 | 20 | 52 | 15 |
| 6005 | 25 | 47 | 12 |
| 6205 | 25 | 52 | 15 |
| 6305 | 25 | 62 | 17 |
| 6006 | 30 | 55 | 13 |
| 6206 | 30 | 62 | 16 |
| 6007 | 35 | 62 | 14 |
| 6008 | 40 | 68 | 15 |
| 6009 | 45 | 75 | 16 |
| 6010 | 50 | 80 | 16 |
| 6011 | 55 | 90 | 18 |
| 6012 | 60 | 95 | 18 |
Fitting and use
The bearing is greased for life and needs no additional lubrication.
Press the ring that has the interference fit onto its seat, and never push through the balls or the other ring.
Choosing the right option
Select by bore, outside diameter and width.
Also available from BECO: the Viton sealed 200°C range, the shielded 200°C range.
| Option | Part number | SKU |
|---|---|---|
| 10 x 26 x 8 | 6000-2RS.BHT.150C_BECO | A0212956 |
| 10 x 30 x 9 | 6200-2RS.BHT.150C_BECO | A0213008 |
| 10 x 35 x 11 | 6300-2RS.BHT.150C_BECO | A0213060 |
| 12 x 28 x 8 | 6001-2RS.BHT.150C_BECO | A0212957 |
| 12 x 32 x 10 | 6201-2RS.BHT.150C_BECO | A0213009 |
| 12 x 37 x 12 | 6301-2RS.BHT.150C_BECO | A0213061 |
| 15 x 32 x 9 | 6002-2RS.BHT.150C_BECO | A0212958 |
| 15 x 35 x 11 | 6202-2RS.BHT.150C_BECO | A0213010 |
| 15 x 42 x 13 | 6302-2RS.BHT.150C_BECO | A0213062 |
| 17 x 35 x 10 | 6003-2RS.BHT.150C_BECO | A0212959 |
| 17 x 40 x 12 | 6203-2RS.BHT.150C_BECO | A0213011 |
| 17 x 47 x 14 | 6303-2RS.BHT.150C_BECO | A0213063 |
| 20 x 42 x 12 | 6004-2RS.BHT.150C_BECO | A0212960 |
| 20 x 47 x 14 | 6204-2RS.BHT.150C_BECO | A0213012 |
| 20 x 52 x 15 | 6304-2RS.BHT.150C_BECO | A0213064 |
| 25 x 47 x 12 | 6005-2RS.BHT.150C_BECO | A0212961 |
| 25 x 52 x 15 | 6205-2RS.BHT.150C_BECO | A0213013 |
| 25 x 62 x 17 | 6305-2RS.BHT.150C_BECO | A0213065 |
| 30 x 55 x 13 | 6006-2RS.BHT.150C_BECO | A0212962 |
| 30 x 62 x 16 | 6206-2RS.BHT.150C_BECO | A0213014 |
| 35 x 62 x 14 | 6007-2RS.BHT.150C_BECO | A0212963 |
| 40 x 68 x 15 | 6008-2RS.BHT.150C_BECO | A0212964 |
| 45 x 75 x 16 | 6009-2RS.BHT.150C_BECO | A0212965 |
| 50 x 80 x 16 | 6010-2RS.BHT.150C_BECO | A0212966 |
| 55 x 90 x 18 | 6011-2RS.BHT.150C_BECO | A0212967 |
| 60 x 95 x 18 | 6012-2RS.BHT.150C_BECO | A0212968 |
