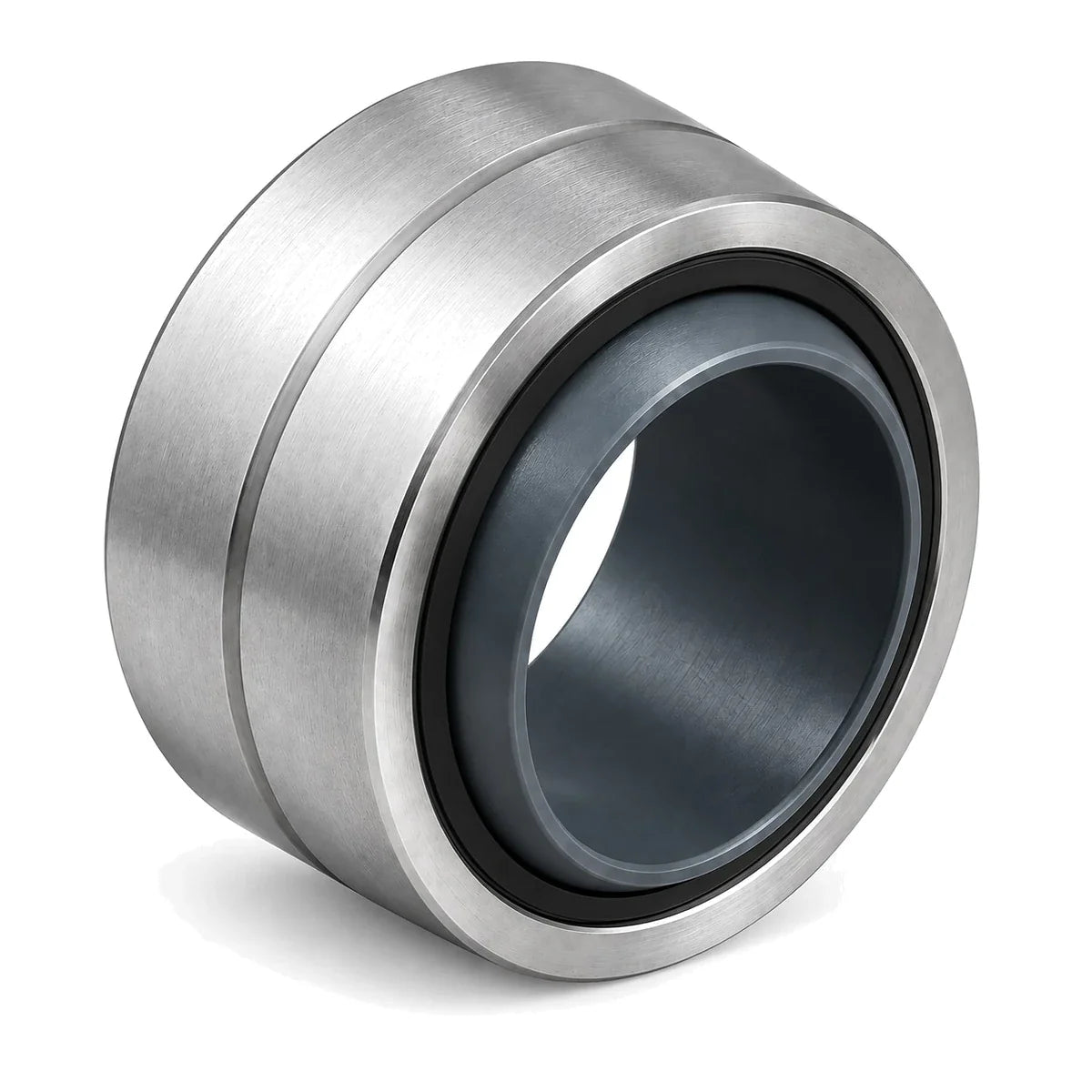

BECO BJ20U-2RS PTFE Lined Spherical Plain Bearing Sealed
Available
BECO maintenance-free radial spherical plain bushings — spherical plain bearings — carry heavy radial load while letting the shaft sit out of square, which is the job a rolling bearing cannot do.
The outer ring carries a PTFE sliding layer running against a hard chromium plated inner ring, so the joint runs dry. No grease point, no relubrication schedule. Sealed on both sides to keep dirt and water off the sliding surfaces, which is what lifts service life in exposed positions.
Suits fixed-direction loads and any position where oil or grease is unwanted, or simply cannot be reached.
At a glance
| Bearing type | PTFE Lined Spherical Plain Bearing |
|---|---|
| Standard | DIN ISO 12240-1 series E |
| Sliding surfaces | Hard chromium on PTFE fabric |
| Sealing | 2RS seals, both sides |
| Lubrication | Maintenance-free — no relubrication |
| Bore range | 15 mm to 300 mm (25 sizes) |
- Runs dry — PTFE sliding layer, so there is no greasing point and no lubrication schedule
- Sealed both sides — keeps dirt and water off the PTFE liner in exposed positions
- Low friction, good wear resistance — under steady, fixed-direction load
Full specifications, applications and features are in the tabs below.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
15 x 26 x 12mm bearing
Model Number: BJ15U-2RS_BECO
-
17 x 30 x 14mm bearing
Model Number: BJ17U-2RS_BECO
-
20 x 35 x 16mm bearing
Model Number: BJ20U-2RS_BECO
-
25 x 42 x 20mm bearing
Model Number: BJ25U-2RS_BECO
-
30 x 47 x 22mm bearing
Model Number: BJ30U-2RS_BECO
-
35 x 55 x 25mm bearing
Model Number: BJ35U-2RS_BECO
-
40 x 62 x 28mm bearing
Model Number: BJ40U-2RS_BECO
-
45 x 68 x 32mm bearing
Model Number: BJ45U-2RS_BECO
-
50 x 75 x 35mm bearing
Model Number: BJ50U-2RS_BECO
-
60 x 90 x 44mm bearing
Model Number: BJ60U-2RS_BECO
-
70 x 105 x 49mm bearing
Model Number: BJ70U-2RS_BECO
-
80 x 120 x 55mm bearing
Model Number: BJ80U-2RS_BECO
-
90 x 130 x 60mm bearing
Model Number: BJ90U-2RS_BECO
-
100 x 150 x 70mm bearing
Model Number: BJ100U-2RS_BECO
-
110 x 160 x 70mm bearing
Model Number: BJ110U-2RS_BECO
-
120 x 180 x 85mm bearing
Model Number: BJ120U-2RS_BECO
-
140 x 210 x 90mm bearing
Model Number: BJ140U-2RS_BECO
-
160 x 230 x 105mm bearing
Model Number: BJ160U-2RS_BECO
-
180 x 260 x 105mm bearing
Model Number: BJ180U-2RS_BECO
-
200 x 290 x 130mm bearing
Model Number: BJ200U-2RS_BECO
-
220 x 320 x 135mm bearing
Model Number: BJ220U-2RS_BECO
-
240 x 340 x 140mm bearing
Model Number: BJ240U-2RS_BECO
-
260 x 370 x 150mm bearing
Model Number: BJ260U-2RS_BECO
-
280 x 400 x 155mm bearing
Model Number: BJ280U-2RS_BECO
-
300 x 430 x 165mm bearing
Model Number: BJ300U-2RS_BECO
