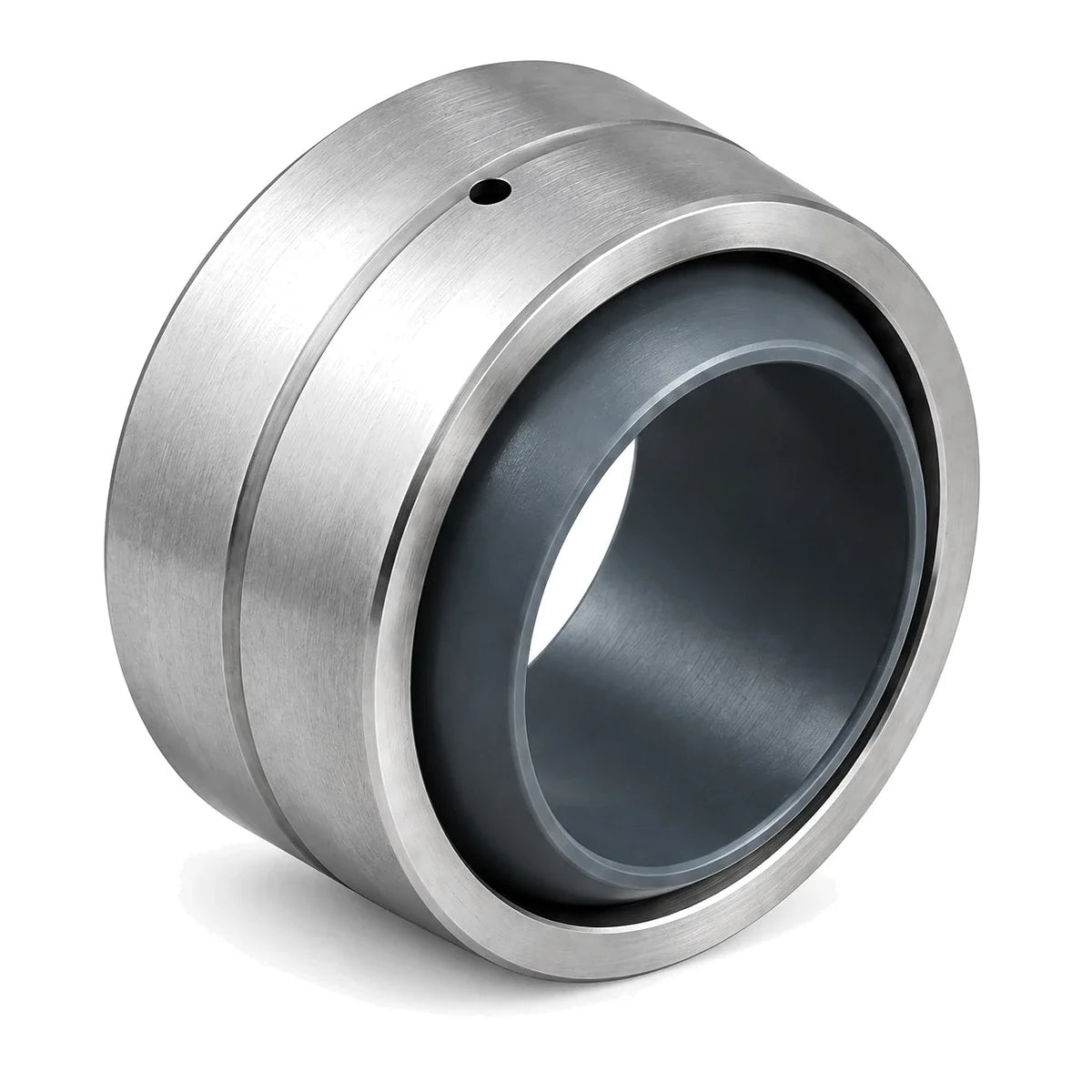

BECO BJ8U PTFE Lined Spherical Plain Bearing Open
Available
BECO maintenance-free radial spherical plain bushings — spherical plain bearings — carry heavy radial load while letting the shaft sit out of square, which is the job a rolling bearing cannot do.
The outer ring carries a PTFE sliding layer running against a hard chromium plated inner ring, so the joint runs dry. No grease point, no relubrication schedule. That suits fixed-direction loads and any position where oil or grease is unwanted, or simply cannot be reached.
Supplied open — with no grease to retain, the PTFE liner needs no seals.
At a glance
| Bearing type | PTFE Lined Spherical Plain Bearing |
|---|---|
| Standard | DIN ISO 12240-1 series E |
| Sliding surfaces | Hard chromium on PTFE fabric |
| Sealing | Open (no seals) |
| Lubrication | Maintenance-free — no relubrication |
| Bore range | 6 mm to 12 mm (4 sizes) |
- Runs dry — PTFE sliding layer, so there is no greasing point and no lubrication schedule
- Low friction, good wear resistance — under steady, fixed-direction load
- Takes misalignment a rolling bearing cannot — the shaft can sit out of square without destroying the joint
Full specifications, applications and features are in the tabs below.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
6 x 14 x 6mm bearing
Model Number: BJ6U_BECO
-
8 x 16 x 8mm bearing
Model Number: BJ8U_BECO
-
10 x 19 x 9mm bearing
Model Number: BJ10U_BECO
-
12 x 22 x 10mm bearing
Model Number: BJ12U_BECO
