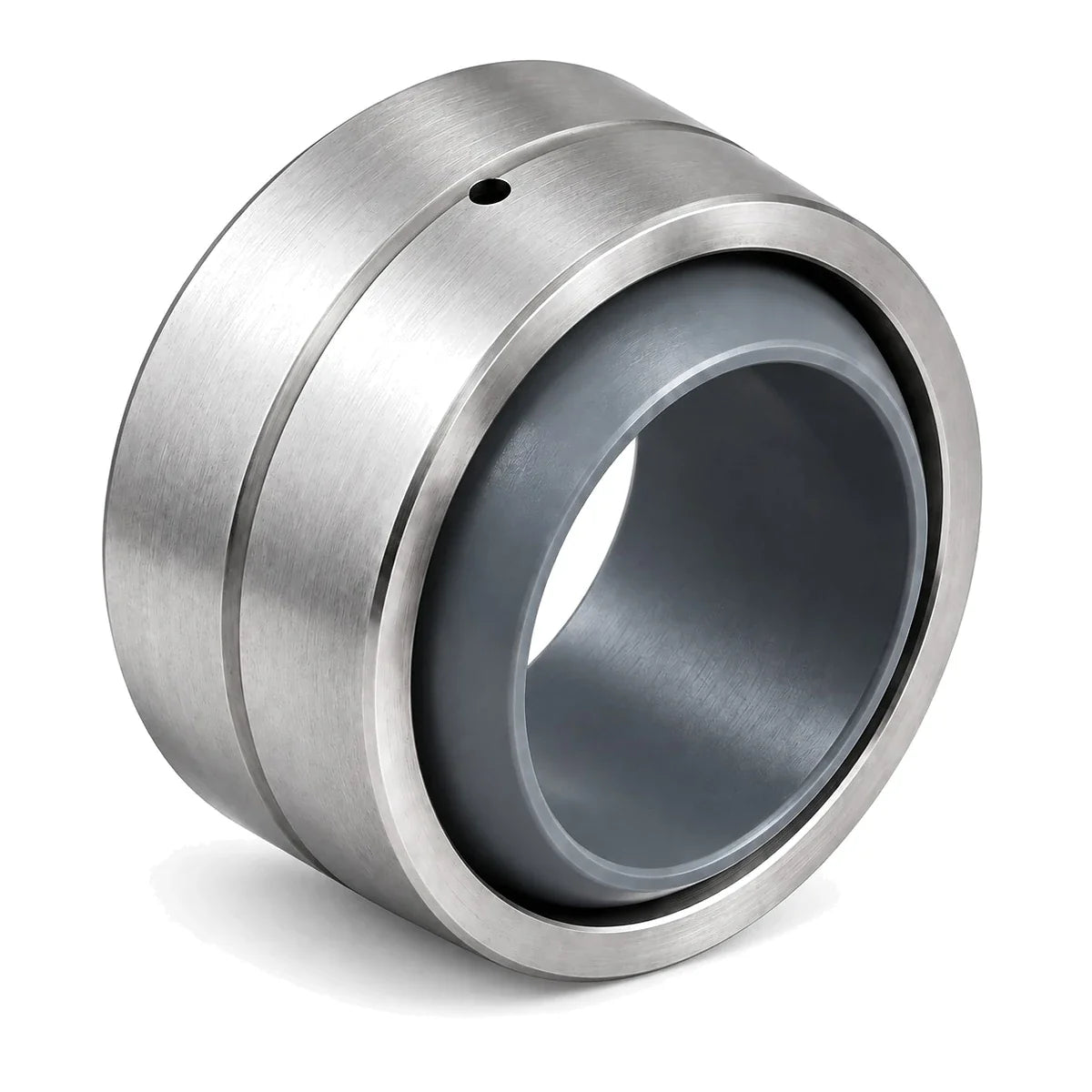

BECO SSBJ6U Stainless Steel PTFE Lined Spherical Plain Bearing Open
Available
BECO stainless steel maintenance-free radial spherical plain bushings — spherical plain bearings — carry heavy radial load while letting the shaft sit out of square, which is the job a rolling bearing cannot do.
The outer ring carries a PTFE sliding layer running against a stainless steel inner ring, so the joint runs dry and nothing in the sliding pair corrodes. No grease point, no relubrication schedule. That is the combination for wash-down areas, damp plant and outdoor exposure.
Supplied open — with no grease to retain, the PTFE liner needs no seals.
At a glance
| Bearing type | Stainless Steel PTFE Spherical Plain Bearing |
|---|---|
| Standard | DIN ISO 12240-1 series E |
| Sliding surfaces | Stainless steel on PTFE |
| Sealing | Open (no seals) |
| Lubrication | Maintenance-free — no relubrication |
| Bore range | 6 mm to 30 mm (9 sizes) |
- Stainless rings and sliding surfaces — survives wash-down, damp plant and outdoor exposure
- Runs dry — PTFE sliding layer, so there is no greasing point and no lubrication schedule
- Takes misalignment a rolling bearing cannot — the shaft can sit out of square without destroying the joint
Full specifications, applications and features are in the tabs below.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
6 x 14 x 6mm bearing
Model Number: SSBJ6U_BECO
-
8 x 16 x 8mm bearing
Model Number: SSBJ8U_BECO
-
10 x 19 x 9mm bearing
Model Number: SSBJ10U_BECO
-
12 x 22 x 10mm bearing
Model Number: SSBJ12U_BECO
-
15 x 26 x 12mm bearing
Model Number: SSBJ15U_BECO
-
17 x 30 x 14mm bearing
Model Number: SSBJ17U_BECO
-
20 x 35 x 16mm bearing
Model Number: SSBJ20U_BECO
-
25 x 42 x 20mm bearing
Model Number: SSBJ25U_BECO
-
30 x 47 x 22mm bearing
Model Number: SSBJ30U_BECO
