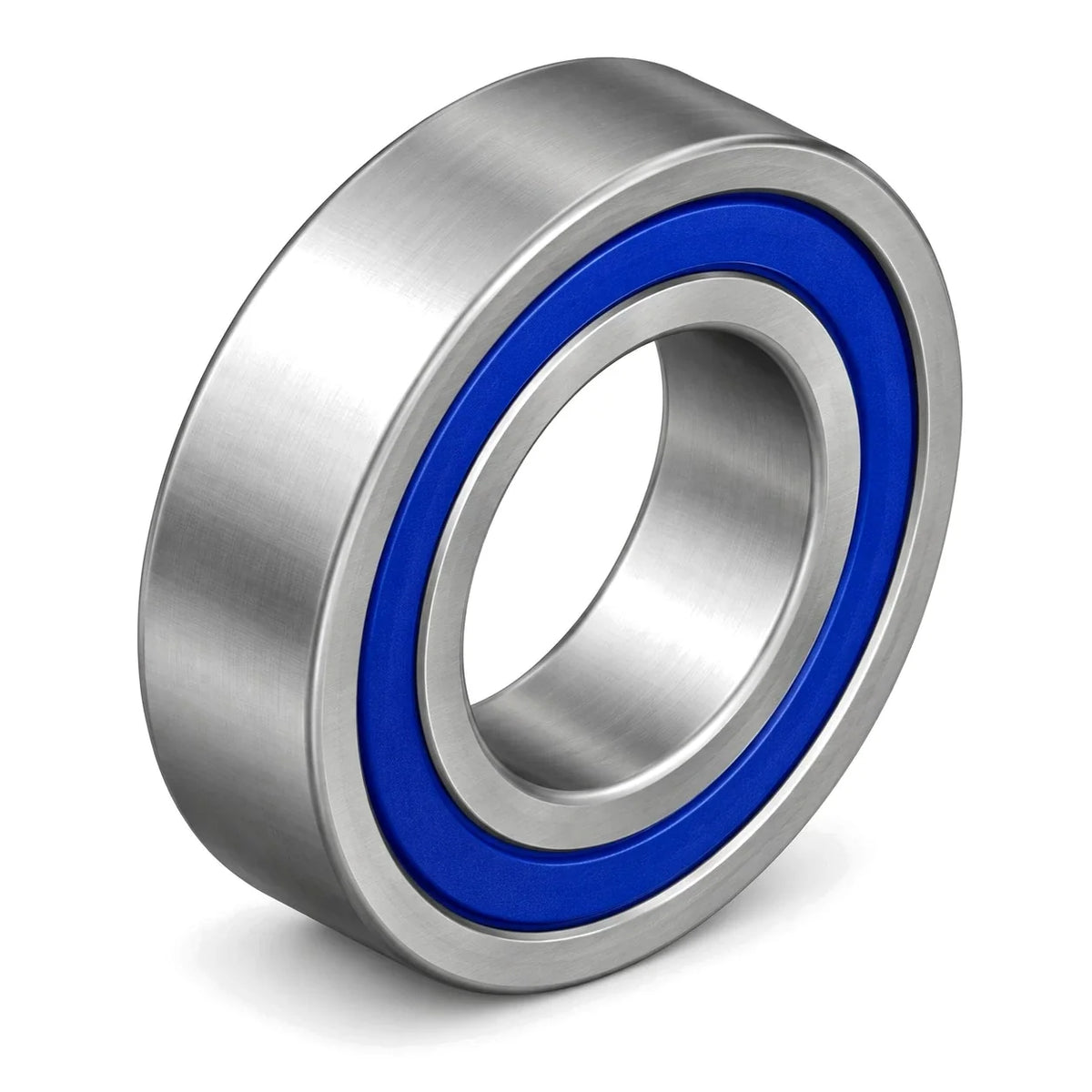

BECO 6000 Stainless Steel Deep Groove Ball Bearing, Sealed, 10 x 26 x 8 mm

The BECO stainless steel sealed deep groove ball bearing is made from hardened stainless steel for the rotating parts, with an AISI 304 cage and stainless steel 2RS seals on both sides. It is built on standard bearing boundary dimensions with standard radial internal clearance. This range has 40 sizes with bores from 10 to 75 mm across the 6000, 6200 and 6300 series.

It is lubricated for life with a grease BECO lists as suitable for the food industry under NSF H1, and is rated for -20°C to +100°C. BECO describes the tempered stainless construction as suited to mildly aggressive applications and does not recommend it where acids, salts or sea water are present. Contact AIMS Industrial if that is your application and we will help you choose.

Where this product is used

• Air conveyors in food processing plants
• Food industry equipment
• Construction industry, including windows, sliding windows and sliding glass doors
• Weather-exposed equipment where a chrome steel bearing would corrode

Features

• Hardened stainless steel for the rotating parts, with an AISI 304 cage
• Standard radial internal clearance
• Operating range of -20°C to +100°C
• Lubricated for life with a grease BECO lists as suitable for the food industry under NSF H1
• Standard bearing boundary dimensions
• Stainless steel 2RS seals on both sides

Key specifications

Available sizes

Selecting the right option

Select by bore, outside diameter and width first, then check the limiting speed for that size in the table against the shaft speed. Limiting speeds run from 3,584 to 19,720 rpm, falling as the bearing gets larger.

The static load rating is the BECO catalogue figure for the size. These are magnetic bearings: contact AIMS Industrial if you need a non-magnetic stainless bearing.

BECO describes the tempered stainless construction as suited to mildly aggressive applications and does not recommend it where acids, salts or sea water are present. Contact AIMS Industrial if that is your application and we will help you choose.

Fitting and use

The bearing is lubricated for life and needs no additional lubrication.

Press the ring that has the interference fit onto its seat, and never push through the balls or the other ring.

Do not use the bearing with acids, salts or sea water present without checking with AIMS Industrial first.

Related products

Also available from BECO: the stainless steel shielded range, the stainless steel thin section sealed range and the shielded 280°C high temperature range.
