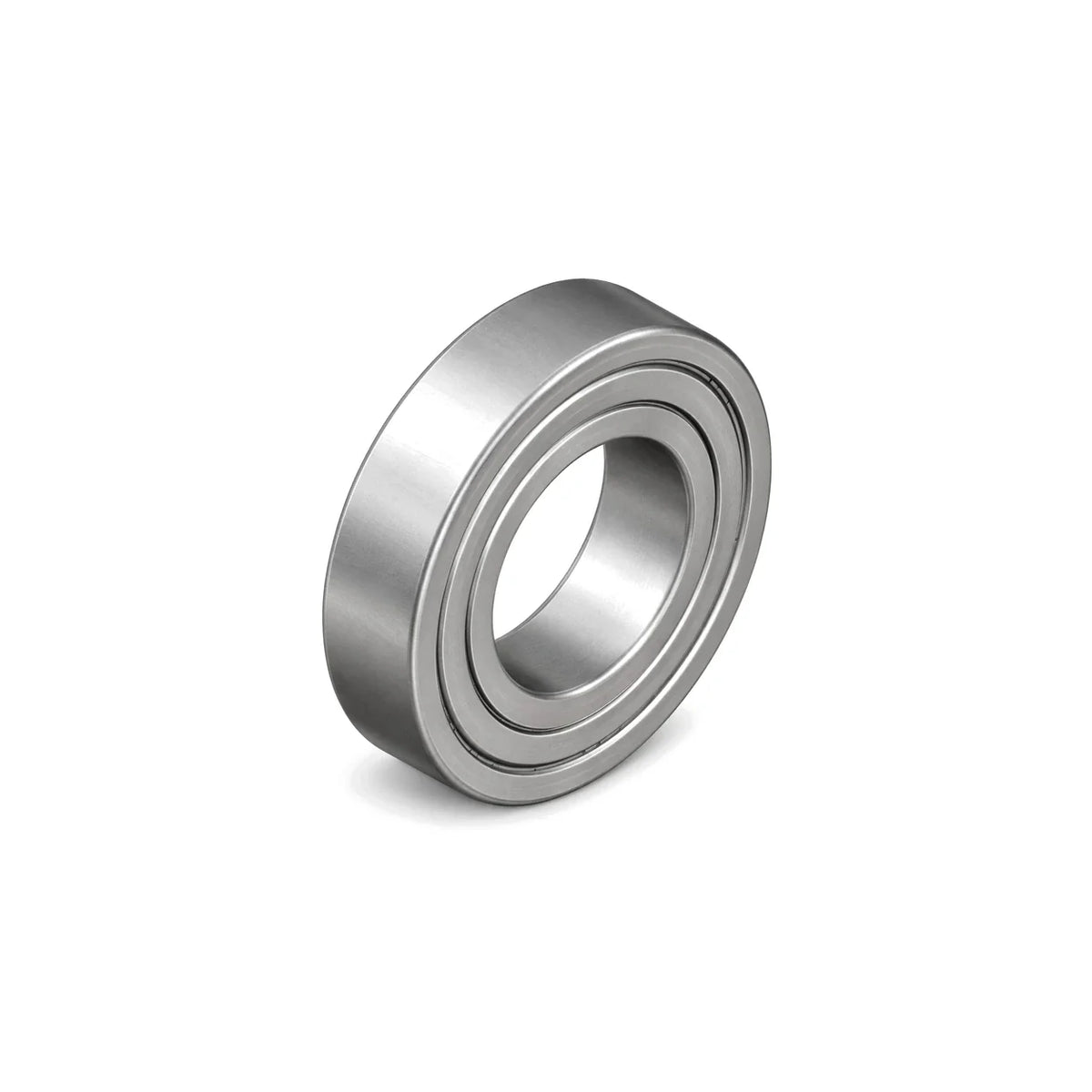

BECO 626 Stainless Steel Miniature Deep Groove Ball Bearing, Shielded, 6 x 19 x 6 mm
Available
The BECO stainless steel miniature shielded deep groove ball bearing covers small-bore sizes where a chrome steel bearing would corrode. It is made from hardened stainless steel for the rotating parts, with an AISI 304 cage and stainless steel ZZ shields on both sides, on standard miniature boundary dimensions with standard radial internal clearance. This range has 3 sizes with bores from 6 to 8 mm.
It is lubricated for life with a grease BECO lists as suitable for the food industry under NSF H1, and is rated for -20°C to +100°C. BECO describes the tempered stainless construction as suited to mildly aggressive applications and does not recommend it where acids, salts or sea water are present. Contact AIMS Industrial if that is your application and we will help you choose.
Where this product is used
- Air conveyors in food processing plants
- Food industry equipment
- Construction industry, including windows, sliding windows and sliding glass doors
- Weather-exposed equipment where a chrome steel bearing would corrode
Features
- Hardened stainless steel for the rotating parts, with an AISI 304 cage
- Standard radial internal clearance
- Operating range of -20°C to +100°C
- Lubricated for life with a grease BECO lists as suitable for the food industry under NSF H1
- Standard bearing boundary dimensions
- Stainless steel ZZ shields on both sides
Key specifications
| Specification | Detail |
|---|---|
| Type | Single row deep groove ball bearing |
| Series | Miniature |
| Bore diameter d | 6 to 8 mm |
| Outside diameter D | 13 to 22 mm |
| Width B | 5 to 7 mm |
| Bearing material | Hardened stainless steel rings and balls; AISI 304 cage and shields |
| Radial internal clearance | Standard |
| Sealing | ZZ stainless steel shields, both sides |
| Lubrication | Grease suitable for the food industry (NSF H1), lubricated for life |
| Operating range | -20°C to +100°C |
| Static load rating | 0.85 to 1.1 kN, depending on size |
| Brand | BECO |
Available sizes
| Designation | Bore d (mm) | Outer D (mm) | Width B (mm) | Static load (kN) |
|---|---|---|---|---|
| 686B | 6 | 13 | 5 | – |
| 626 | 6 | 19 | 6 | 0.85 |
| 608 | 8 | 22 | 7 | 1.1 |
A dash means BECO does not publish a figure for that size.
Selecting the right option
Select by bore, outside diameter and width, then check the static load rating for your size in the table.
BECO publishes limiting speed and weight for the sealed version of this size only, so those figures are not shown for the shielded bearing. Contact AIMS Industrial to confirm them for your application.
BECO describes the tempered stainless construction as suited to mildly aggressive applications and does not recommend it where acids, salts or sea water are present. Contact AIMS Industrial if that is your application and we will help you choose.
Fitting and use
The bearing is lubricated for life and needs no additional lubrication.
Press the ring that has the interference fit onto its seat, and never push through the balls or the other ring.
Do not use the bearing with acids, salts or sea water present without checking with AIMS Industrial first.
Related products
Also available from BECO: the stainless steel shielded range, the stainless steel sealed range and the stainless steel flanged miniature range.
