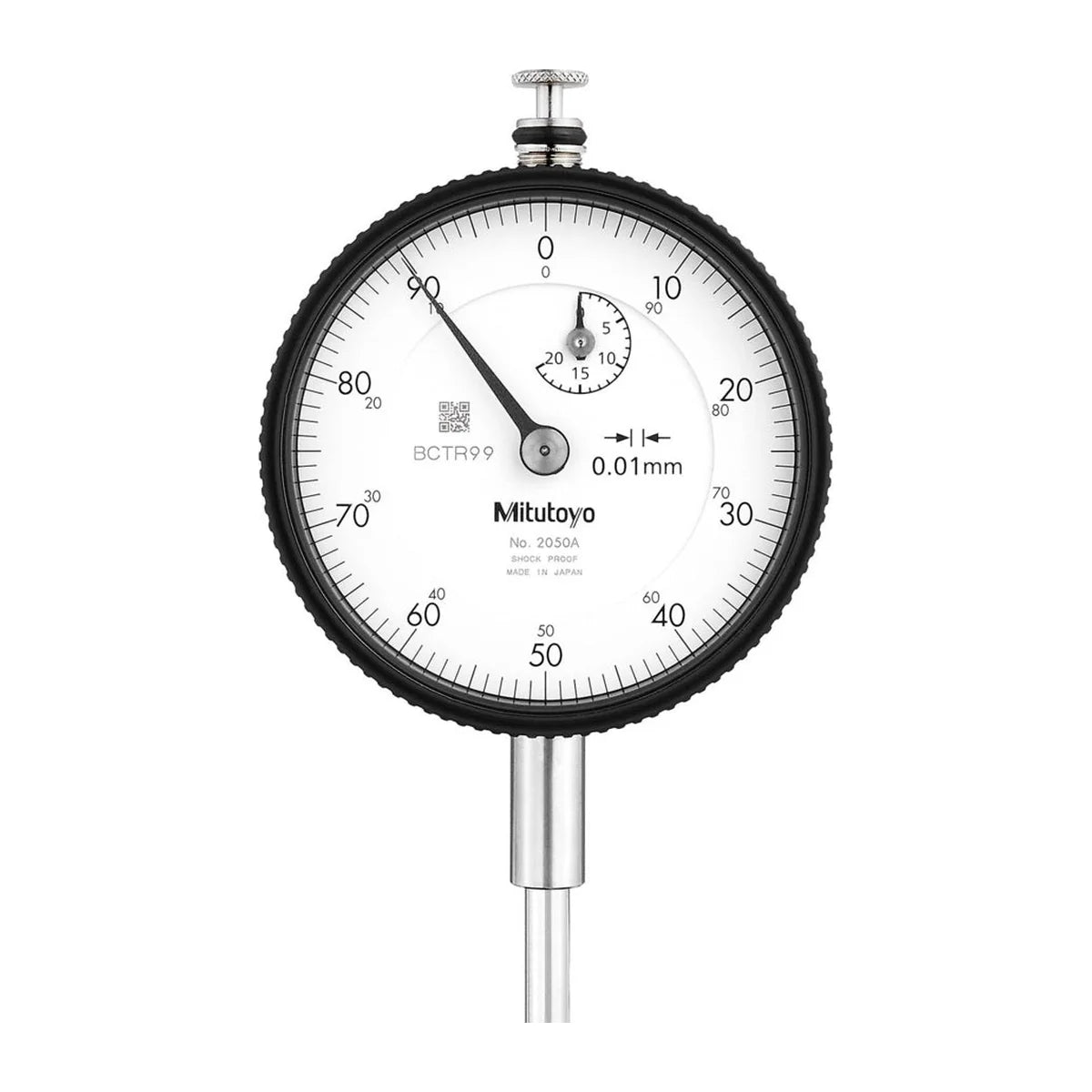

Mitutoyo 2050A Long Stroke Dial Indicator 20mm

The Mitutoyo Series 2 long stroke dial indicator measures how far its plunger moves, with 20mm or 30mm of travel. Machinists, toolrooms and inspectors use it for comparing parts, checking alignment and setting up work. It reads in 0.01mm steps, and the pointer turns once for each millimetre. The case is oil- and water-tight, with quenched hardened stainless steel, a carbide contact point and a grand gear made of wear- and deformation-resistant material. An anti-reflective, hard surface coating improves scale visibility and resists scratches and chemicals.

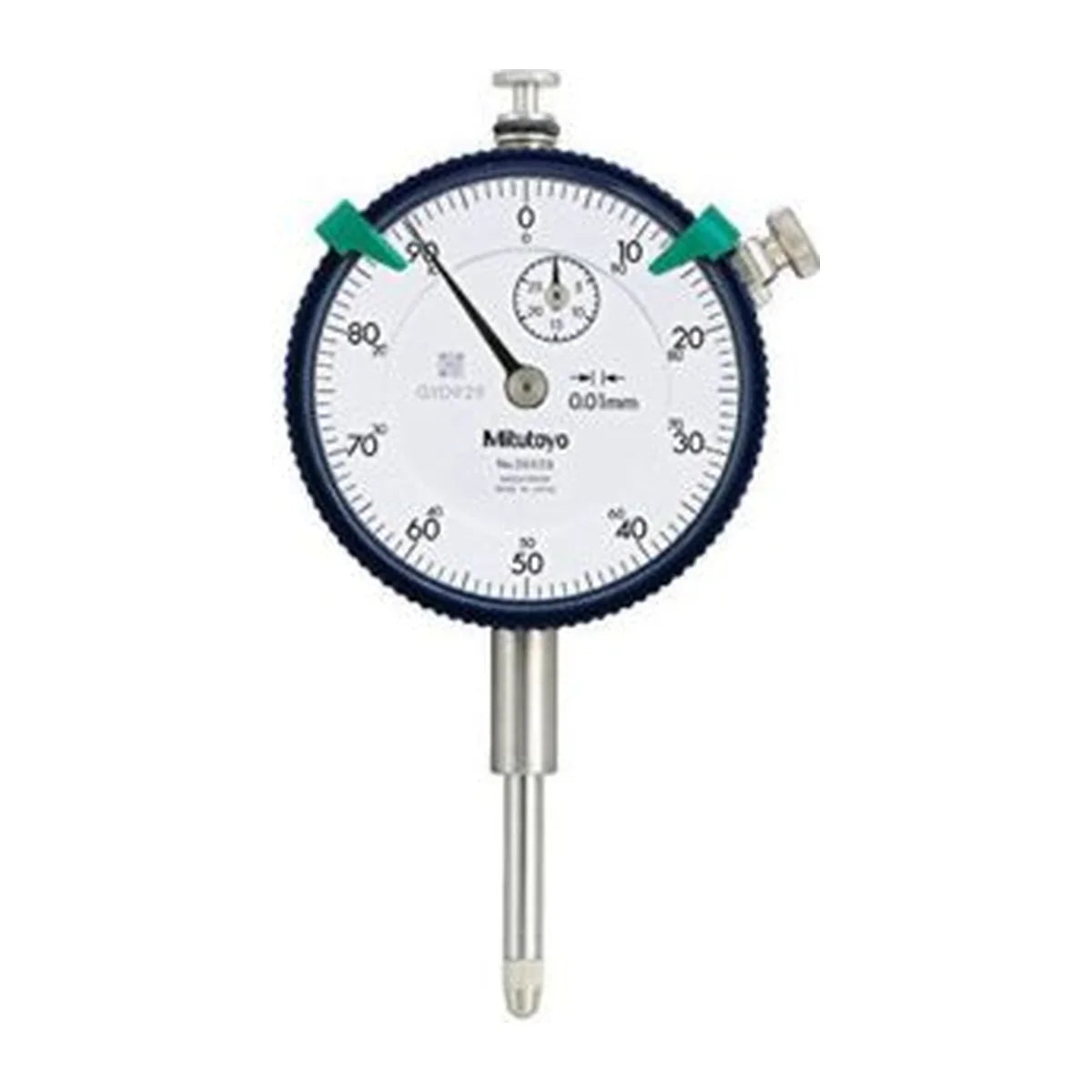

Range is how far the plunger can travel. The figure in brackets, 1mm, is how far it travels for one turn of the pointer. Graduation is the smallest step on the dial, and error is how far a reading can be out. To choose, take the 2050A for 20mm of travel or the 2052A for 30mm. Both have a lug back. For finer reading over a short range, look at the standard type Series 2 indicators.

Where this product is used

• Comparing parts against a master over a longer range
• Checking alignment and runout during machine setup
• Measuring deviations larger than a 10mm indicator can handle

Features

• Long stroke of 20mm (2050A) or 30mm (2052A)
• 0.01mm graduation with 1mm per revolution
• Large 57mm bezel
• Oil- and water-tight case with a carbide contact point
• Anti-reflective, hard surface coating for clear scale reading
• Lug back, with a flat-back version sold under a different code
• The optional lifting lever cannot be used with water-proof models or models with 30mm or 2" range

Key specifications

Supplied with

• One dial indicator per option

Choosing the right option
