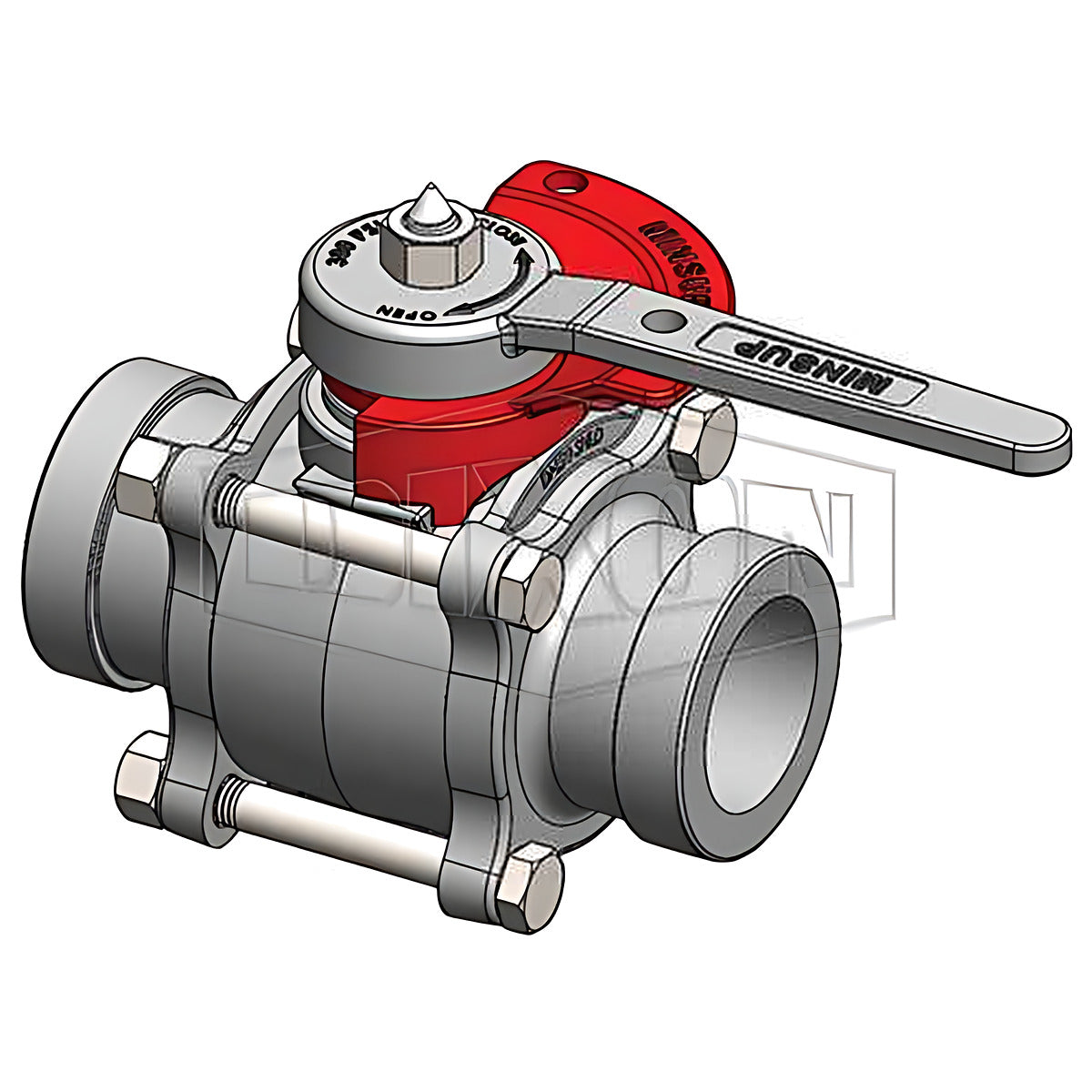

Dixon 08/062/849/00LO Minsup Econovalve Lockout Ball Valve Shouldered x Shouldered

This Dixon Minsup Econovalve is a 50 mm (2 in) lockout ball valve with a shouldered end on each side. Dixon's data sheet describes it as a 2 in shouldered x 2 in shouldered valve with lockout (manufacturer-stated).

Dixon rates the Econovalve range at 300 PSI and -20 to 80 degrees C, with a one-piece ball and stem, a zinc-plated SG iron body, a nitrile butadiene seal and an SG iron handle on the 2 in size (manufacturer-stated). The 2 in size is a 3-piece design for in-line maintenance (manufacturer-stated).

Where this product is used

• Mine air and water lines that use shouldered pipe ends, such as the 50 mm (2 in) shouldered quick release clamps and adaptors in Dixon's mining range.
• Points where the valve needs to be locked open or locked closed, using the lockout version listed by Dixon.

Features

• Shouldered x shouldered ends, lockout version (manufacturer-stated)
• One-piece ball and stem for a positive on/off action (manufacturer-stated)
• Body: SG iron, zinc plated; seal: nitrile butadiene (manufacturer-stated)
• Working pressure 300 PSI; temperature -20 to 80 degrees C (manufacturer-stated)
• 2 in 3-piece design allows in-line maintenance (manufacturer-stated)

Common specifications

Key specifications

Selecting the right option

Check that the shoulder profile on your pipe or adaptor matches before ordering: both ends are shouldered, so no thread is involved. If you want a thread on one end, Dixon lists a female BSP x shouldered version (see Related products). Dixon does not publish further shoulder dimensions for this valve in its catalogue.

Related products

Related Dixon products: Dixon Econovalve with Lockout Device BSP, Dixon Ball Valve Surelock BSP and Dixon Minsup Econovalve Ball Valve Lockout Device.
