Dixon 08/062/118/00LO 1" BSP Minsup Econovalve Lockout Ball Valve x Shouldered
Available

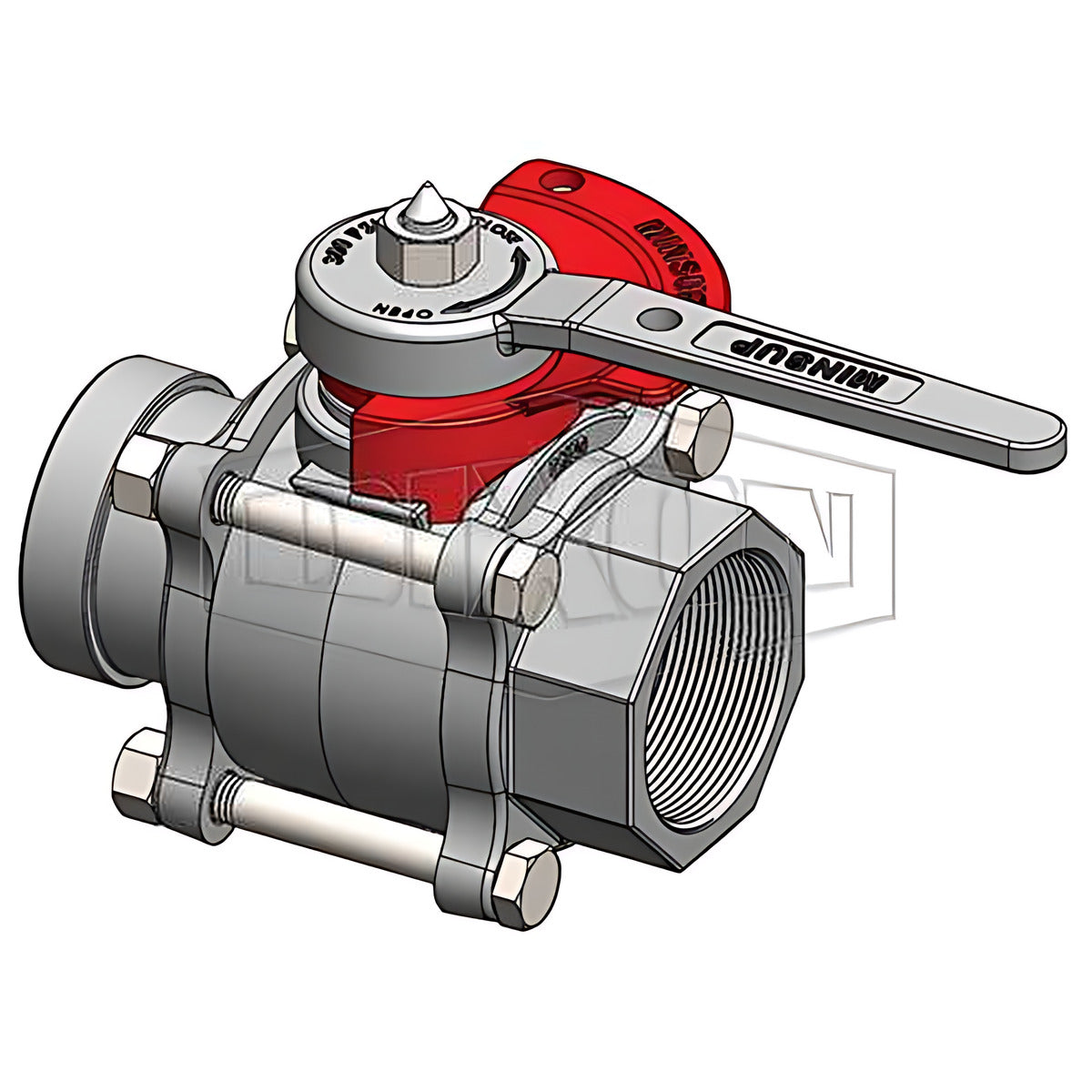

This Dixon Minsup Econovalve is a lockout ball valve with a female BSP thread on one end and a shouldered end on the other. The store lists two valves, selected by the female thread size: 1 in (08/062/118/00LO) and 2 in (08/062/56/000LO).
Dixon rates the Econovalve range at 300 PSI and -20 to 80 degrees C, with a one-piece ball and stem, a zinc-plated SG iron body and a nitrile butadiene seal (manufacturer-stated). Its data sheet describes 08/062/118/00LO as 1 in BSPF x 2 in shouldered and 08/062/56/000LO as 2 in shouldered x 2 in BSPF, both with lockout (manufacturer-stated).
Where this product is used
- Joining a threaded BSP port to a shouldered pipe or adaptor on mine air and water lines (manufacturer-stated, for the Econovalve range).
- Points where the valve needs to be locked open or locked closed, using the lockout version listed by Dixon.
Features
- Female BSP x shouldered ends, lockout version (manufacturer-stated)
- One-piece ball and stem for a positive on/off action (manufacturer-stated)
- Body: SG iron, zinc plated; seal: nitrile butadiene (manufacturer-stated)
- Working pressure 300 PSI; temperature -20 to 80 degrees C (manufacturer-stated)
- 2 in size is a 3-piece design for in-line maintenance (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Valve type | Minsup Econovalve ball valve, one-piece ball and stem |
| End connections | Female BSP x shouldered |
| Working pressure | 300 PSI |
| Temperature | -20 to 80 degrees C |
| Safety rating | 2:1 |
| Body | SG iron (ISO 1083; 400-250-15), zinc plated (AS1789) (manufacturer-stated) |
| Seal | Nitrile butadiene |
| Ball and stem | SG iron (ISO 1083; 400-250-15) and copper, chrome plated (AS1192), one-piece ball and stem (manufacturer-stated) |
| Handle | Pressed mild steel on 1 in; SG iron (ISO 1083; 400-250-15) on 2 in (manufacturer-stated) |
Key specifications
| Dixon part number | Female thread size | Catalogue size | Dixon data sheet description | Working pressure |
|---|---|---|---|---|
| 08/062/118/00LO | 1 in BSP | 25 mm (1 in) | 1 in BSPF x 2 in shouldered | 300 PSI |
| 08/062/56/000LO | 2 in BSP | 50 mm (2 in) | 2 in shouldered x 2 in BSPF | 300 PSI |
Dixon's catalogue lists 08/062/118/00LO as a 25 mm (1 in) valve, while its data sheet describes the shouldered end as 2 in. The store option is the female thread size.
Selecting the right option
Check which end is which before you order: the female BSP end is the size shown in the store option (1 in or 2 in), and the shouldered end suits shouldered pipe or adaptors. For the 1 in valve, Dixon's data sheet gives the shouldered end as 2 in, so confirm your shoulder size. For a BSP thread on both ends, see the BSP female x female Econovalve under Related products.
Related products
Related Dixon products: Dixon Econovalve - Ball Valve Lockout BSP Female x BSP Female, Dixon 08/062/849/00LO 2" Ball Valve Lockout Shouldered x Shouldered and Dixon Minsup Econovalve Ball Valve Lockout Device.
